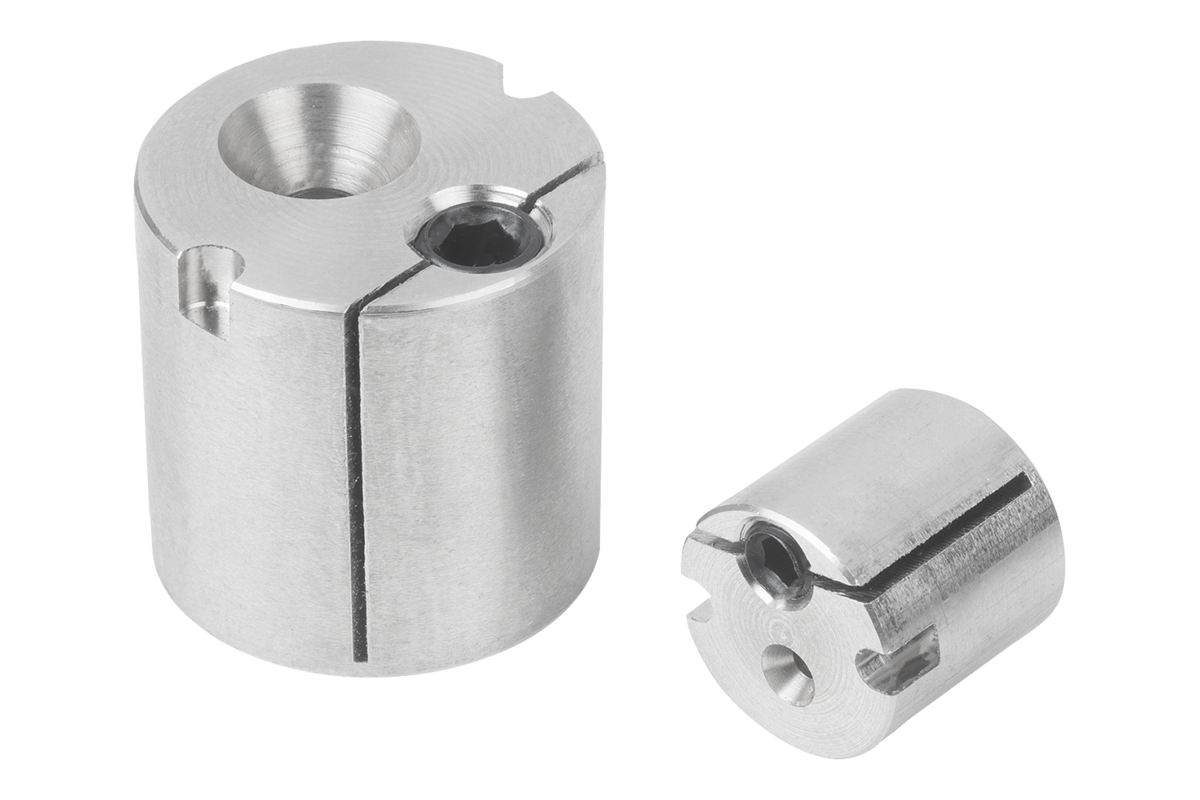

Eccentric bushings with center bore
K1292

Eccentric bushings with center bore

go back

Item description/product images

DescriptionMaterial:

Stainless steel 1.4305 (AISI 303 equivalent).

Version:Bright.Note:For H7 holes. Turning the grub screw creates a surface pressure. Use a face pin spanner to turn the bushing to the desired position and lock it in place with the grub screw.Application:These eccentric bushings can be used as e.g. stops or tolerance compensators.

1) DIN 332-1 center bore, style A

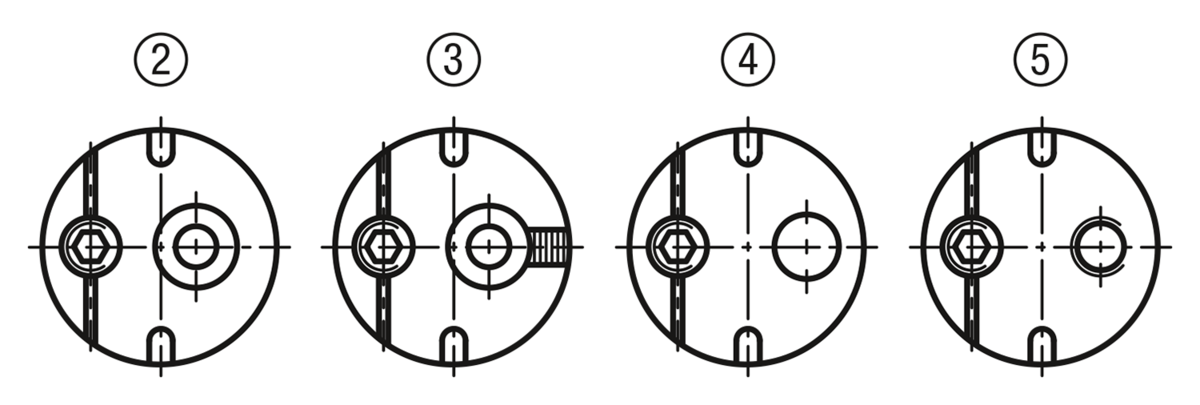

2) Basic style with centering
3) With scale groove for visual stop
4) Through hole
5) Tapped hole
Benefits:- Easy handling
- Grub screw clamping
- Minimal installation space
- Arbitrary mounting position
- Customised application
- Versatile use
Special features:
Stainless steelRoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1292 Eccentric bushings with center bore 258 kB

Drawings

Eccentric bushings with center bore

Item selection/filter

Order No.D

D1D2D3HMSWTTightening
torque
Nm
CADAcc.PriceOrder
K1292.101101012,129,82,2521,91,5 31.44 $ (USD)
K1292.12112121,63,3511,8222,91,5 32.72 $ (USD)
K1292.15115152,55,314,82,252,54,62 34.05 $ (USD)
K1292.181181848,515,82,252,57,42 35.79 $ (USD)
K1292.201202048,519,8337,45 37.62 $ (USD)
