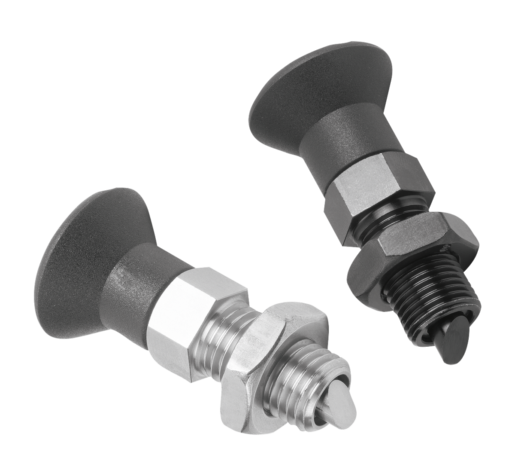

Indexing plungers with rotation lock and lead-in chamfer
K1300

Indexing plungers with rotation lock and lead-in chamfer

go back

Item description/product images

DescriptionMaterial:Steel version:
indexing pin hardened: grade 5.8

Stainless steel version:
indexing pin hardened: threaded body 1.4305 (AISI 303 equivalent), indexing pin 1.4305 (AISI 303 equivalent).

Mushroom knob black gray thermoplastic.
Version:Steel version:
indexing pin hardened, ground and black oxide finish.

Stainless steel version:
indexing pin hardened, ground and bright.
Note:Indexing plungers are used where any change in locking position due to lateral forces should be prevented. The rotation lock ensures that the position of the pin in relation to the sleeve cannot be changed. The point angle enables the pin to retract automatically through a lateral force from one side. Loosening the screw as far as the marking on the plunger enables the point angle to be rotated in 60° increments.Assembly:The screw can be loosened using a hex. key.On request:Special versions.Accessory:Spacer rings K0665Drawing reference:
Form A: without locknut
Form B: with locknut

1) marking ring
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1300 Indexing plungers with rotation lock and lead-in chamfer 248 kB

Drawings (total overview)

Indexing plungers with rotation lock and lead-in chamfer

Indexing plungers with rotation lock and lead-in chamfer, Form A

More information

Drawings

Indexing plungers with rotation lock and lead-in chamfer, Form A

Item selection/filter

Item No.StyleMain
material
DD1D2LL1L2L3HSW1Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K1300.12061Asteel6M12x1,52549,720817414814on request
K1300.12060Asteel6M122549,720817414814on request
K1300.13081Asteel8M16x1,533662610236192035on request
K1300.13080Asteel8M1633662610236192035on request
K1300.012061Astainless steel6M12x1,52549,720817414814on request
K1300.012060Astainless steel6M122549,720817414814on request
K1300.013081Astainless steel8M16x1,533662610236192035on request
K1300.013080Astainless steel8M1633662610236192035on request

Indexing plungers with rotation lock and lead-in chamfer, Form B

More information

Drawings

Indexing plungers with rotation lock and lead-in chamfer, Form B

Item selection/filter

Item No.StyleMain
material
DD1D2LL1L2L3HSW1SW2Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K1300.22061Bsteel6M12x1,52549,72081741419814on request
K1300.22060Bsteel6M122549,72081741419814on request
K1300.23081Bsteel8M16x1,53366261023619242035on request
K1300.23080Bsteel8M163366261023619242035on request
K1300.022061Bstainless steel6M12x1,52549,72081741419814on request
K1300.022060Bstainless steel6M122549,72081741419814on request
K1300.023081Bstainless steel8M16x1,53366261023619242035on request
K1300.023080Bstainless steel8M163366261023619242035on request
