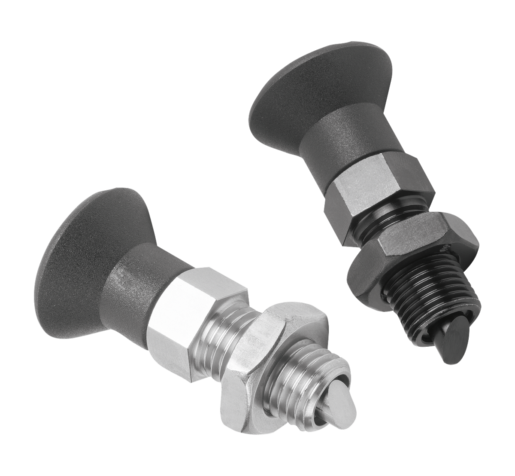

Indexing plungers with rotation lock and lead-in chamfer, Form B
K1300_B

Indexing plungers with rotation lock and lead-in chamfer, Form B

go back

Item description/product images

DescriptionMaterial:Steel version:
indexing pin hardened: grade 5.8

Stainless steel version:
indexing pin hardened: threaded body 1.4305 (AISI 303 equivalent), indexing pin 1.4305 (AISI 303 equivalent).

Mushroom knob black gray thermoplastic.
Version:Steel version:
indexing pin hardened, ground and black oxidized.

Stainless steel version:
indexing pin hardened, ground and bright.
Note:Indexing plungers are used where any change in locking position due to lateral forces should be prevented. The rotation lock ensures that the position of the pin in relation to the body cannot be changed. The point angle enables the pin to retract automatically through a lateral force from one side. Loosening the screw as far as the marking on the plunger enables the point angle to be rotated in 60° increments.Assembly:The screw can be loosened using a hex. key.On request:Special versions.Accessory:Spacer rings K0665Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1300_B Indexing plungers with rotation lock and lead-in chamfer, Form B 325 kB

Drawings

Indexing plungers with rotation lock and lead-in chamfer, Form B

Item selection/filter

Order No.styleMain
material
DD1D2LL1L2L3Travel
S
SW1SW2Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K1300.22061Bsteel6M12x1,52549,72081741419814 16.71 $ (USD)
K1300.22060Bsteel6M122549,72081741419814 16.71 $ (USD)
K1300.23081Bsteel8M16x1,53366261023619242035 21.80 $ (USD)
K1300.23080Bsteel8M163366261023619242035 21.80 $ (USD)
K1300.022061Bstainless steel6M12x1,52549,72081741419814 30.26 $ (USD)
K1300.022060Bstainless steel6M122549,72081741419814 30.26 $ (USD)
K1300.023081Bstainless steel8M16x1,53366261023619242035 40.41 $ (USD)
K1300.023080Bstainless steel8M163366261023619242035 40.41 $ (USD)
