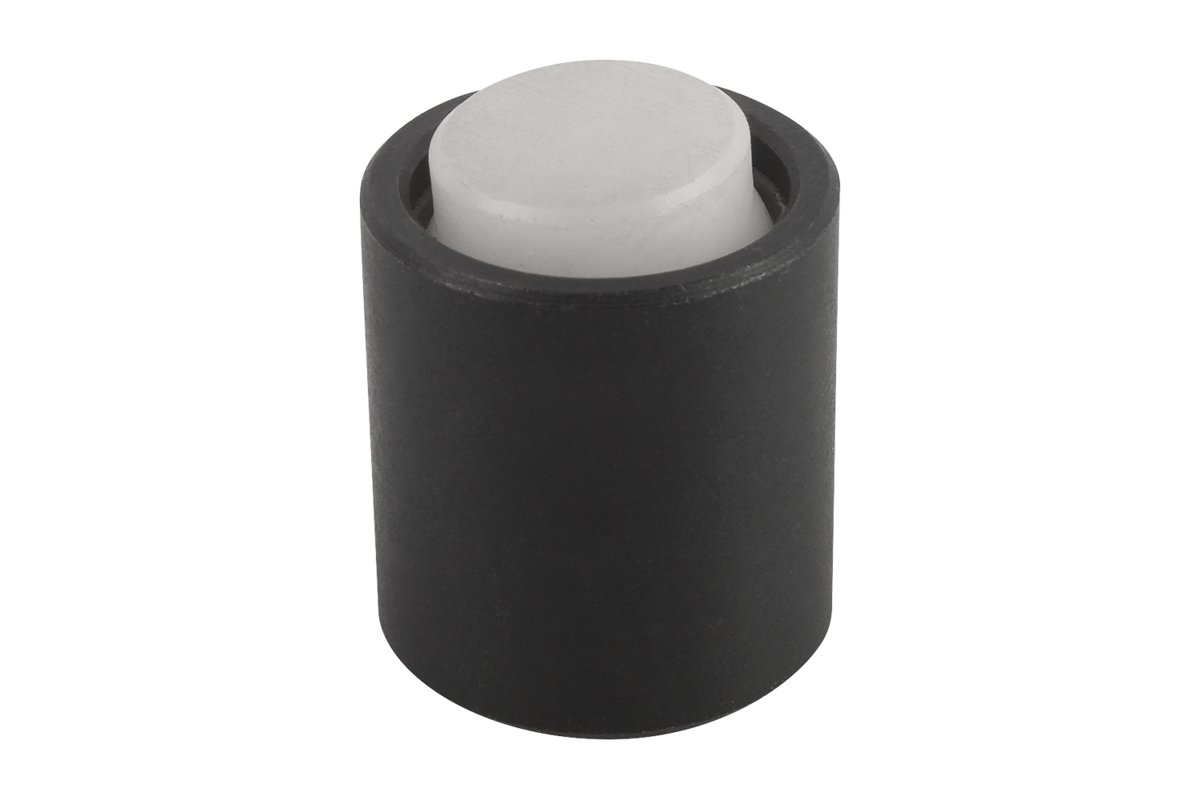

Self-aligning pads with O-ring, style K, flattened POM ball smooth
K0284_K

Self-aligning pads with O-ring, style K, flattened POM ball...

go back

Item description/product images

DescriptionMaterial:Body carbon steel.
Ball POM.
Version:Body tempered.
POM ball white.
Note:Self-aligning pads are used to support and clamp unmachined and machined workpieces. They can also be used as stops, supports and thrust pads in fixtures and toolmaking.

Ball secures against rotation.
Benefits:The built-in O-ring holds the ball in place and keeps dirt and foreign particles out ensuring smooth and even movement.
RoHS

Drawings

Self-aligning pads with O-ring, style K, flattened POM ball smooth

Item selection/filter

Item No.StyleD1D2D3LL1Ball ØLoad rating
max. kN
(static load only)
CADAcc.PriceOrder
K0284.704X012K106M4124,572on request
K0284.704X025K106M4251272on request
K0284.705X016K138,5M5165104on request
K0284.705X025K138,5M52512104on request
