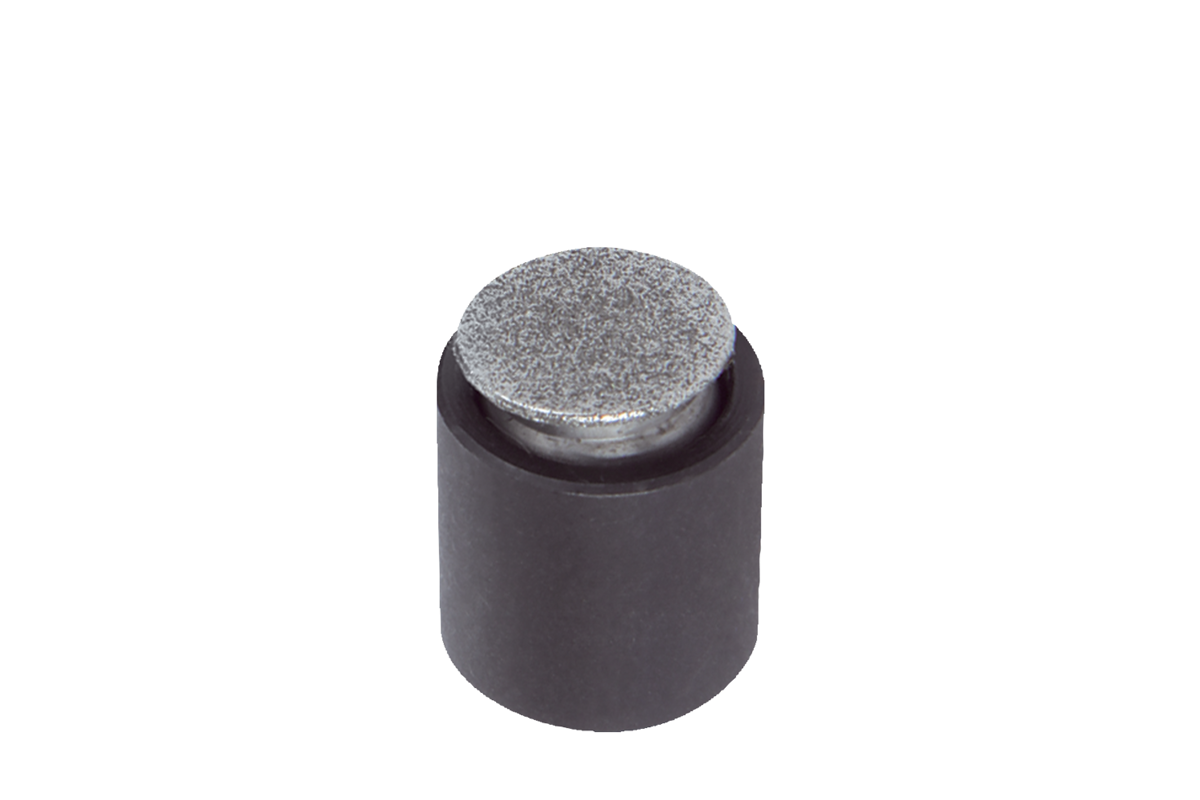

Self-aligning pads with O-ring, style O, stainless steel ball with diamond impregnated face
K0284_O

Self-aligning pads with O-ring, style O, stainless steel ball...

go back

Item description/product images

DescriptionMaterial:Body carbon steel.
Ball stainless steel with diamond surface.
Version:Body tempered and black oxide finish.
Ball: surface comparable to 100 grade abrasive grit.
Note:The self-aligning pads are used to support and clamp unmachined and machined workpieces.
In addition they serve as stops, supports and pressure pieces in fixtures and toolmaking.

Ball secured against rotation.

style O: The abrasive diamond surface is bonded firmly to the ball. It is ideally suited to supporting smooth or slippery applications with a minimum of clamping pressure. This allows the diamond particles to get a firm grip on a very small area with minimum damage to the surface. The diamond surface offers excellent wear resistance.
Benefits:The built-in O-ring holds the ball in place and keeps dirt and foreign particles out ensuring smooth and even movement.
RoHS

Drawings

Self-aligning pads with O-ring, style O, stainless steel ball with diamond impregnated face

Item selection/filter

Item No.StyleD1D2D3LL1L3WBall ØLoad rating
max. kN
(static load only)
CADAcc.PriceOrder
K0284.504X012O108M412,53,5228711,5on request
K0284.504X025O108M425,59228711,5on request
K0284.505X017O1311M517,56,53281019,8on request
K0284.505X026O1311M526,593281019,8on request
K0284.506X021O1714M6217,53281327,4on request
K0284.508X024O1919M8248,54241538,6on request
K0284.510X028O2421M102894242058,3on request
