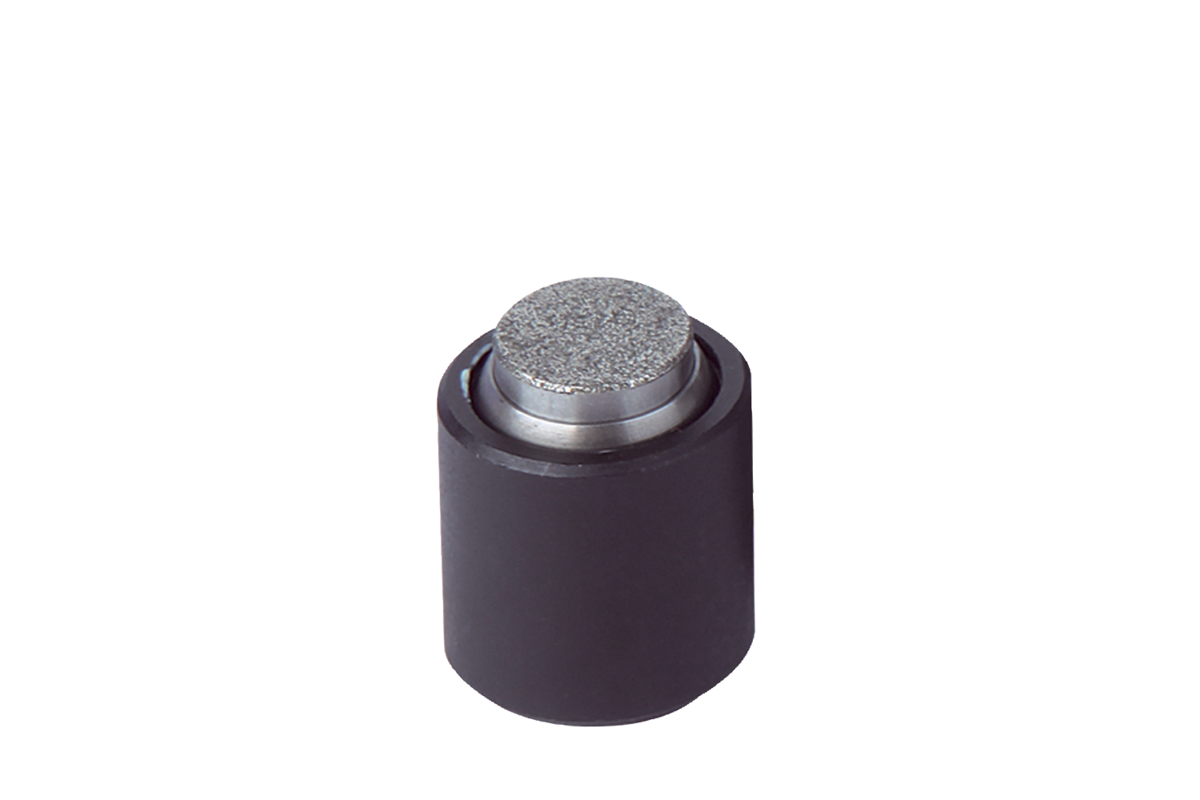

Self-aligning pads with O-ring and exchangeable inserts, style O, stainless steel insert with diamond impregnated face
K0285_O

Self-aligning pads with O-ring and exchangeable inserts, style...

go back

Item description/product images

DescriptionMaterial:Body carbon steel.
Ball rust and acid resistant steel.
Insert:
style O stainless steel.
Version:Body tempered, black oxide finish.
Ball hardened, bright.
Insert:
style O diamond surface comparable to 100 grade abrasive grit.
Note:Self-aligning pads are used to support and clamp unmachined and machined workpieces.
In addition, they serve as stops, supports and thrust pads in fixtures and toolmaking.
The ball can be removed from the housing by applying light pressure to the socket head screw.

Ball secured against rotation.
Benefits:Highly cost-effective as inserts can be exchanged.
The built-in O-ring holds the ball in place and keeps dirt and foreign particles out, ensuring unistyle movement.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0285_O Self-aligning pads with O-ring and exchangeable inserts, style O, stainless steel insert with diamond impregnated face 176 kB

Drawings

Self-aligning pads with O-ring and exchangeable inserts, style O, stainless steel insert with diamond impregnated face

Item selection/filter

Item No.StyleD1D2D3HH1H2TBall-ØLoad rating
max. kN
(static load only)
Item No.
stainless steel insert,
diamond surface
CADAcc.PriceOrder
K0285.517X022O17M6102241071328K0385.10105 116.46 $ (USD)
K0285.519X024O19M8122441081539K0385.12105 128.95 $ (USD)
K0285.524X028O24M10162841082058K0385.16105 141.32 $ (USD)
K0285.530X030O30M12203041092395K0385.20105 160.51 $ (USD)
K0285.536X036O36M1225364101128136K0385.25105 192.37 $ (USD)
