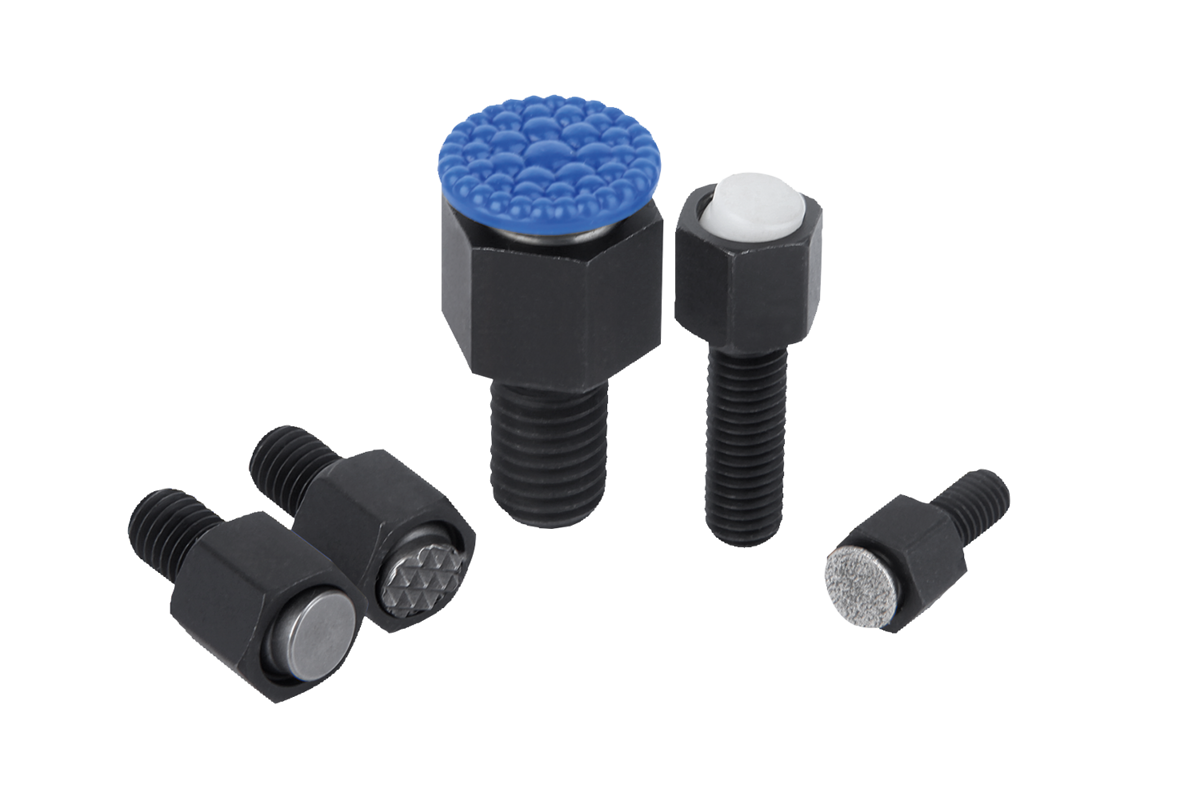

Self-aligning pads adjustable, with o-ring
K0288

Self-aligning pads adjustable, with o-ring

go back

Item description/product images

Show/filter all items
DescriptionMaterial:Body carbon steel.
Ball:
style C, F, tool steel.
style K POM.
style O stainless steel diamond impregnated.
style P stainless steel with polyurethane surface.
Version:Body tempered, black oxide finish.
Ball:
style C, F hardened, black oxide finish.
style K POM ball, white.
style O surface comparable to 100 grade abrasive grit.
style P polyurethane, hardness 60 Shore.

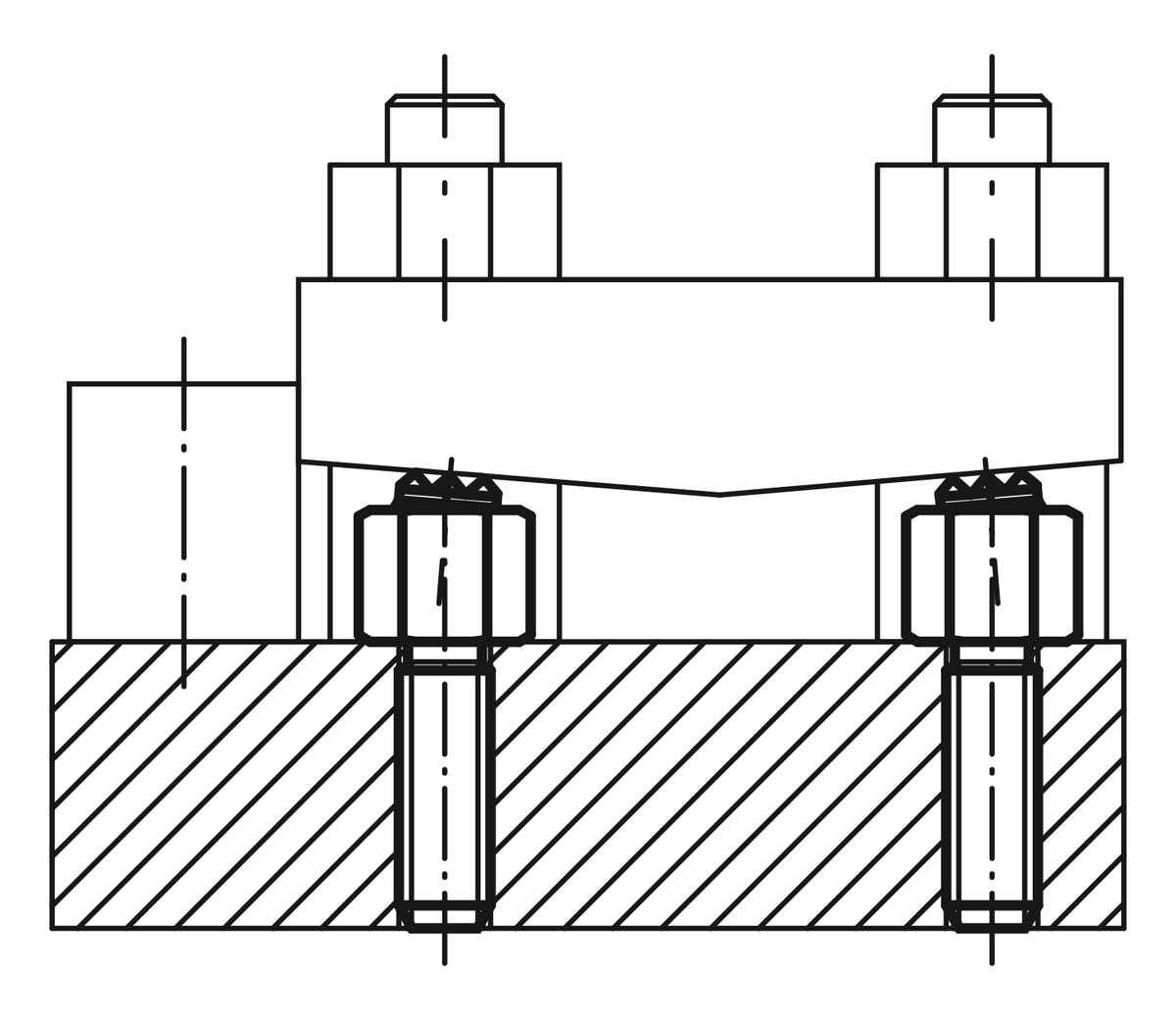

Note:Self-aligning pads are used to support and clamp unmachined and machined workpieces. They also serve as stops, supports and thrust pads in fixtures and toolmaking.

Ball secured against rotation.

style O: The abrasive diamond surface is bonded firmly to the ball. It is ideally suited to supporting smooth or slippery applications with a minimum of clamping pressure. This allows the diamond particles to get a firm grip on a very small area with minimum damage to the surface.
The diamond surface offers excellent wear resistance.

style P: The polyurethane surface is vulcanised firmly to the ball. It is abrasion-resistant and does not discolor.
It offers optimum protection against damage to delicate surfaces. The pearl-like surface gives a firm grip and allows air to escape so as to prevent any suction effect between the contact surface and the self-aligning pads.
Benefits:The built-in O-ring holds the ball in place and keeps dirt and foreign particles out, ensuring unistyle movement.
RoHS
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0288 Self-aligning pads adjustable, with o-ring 259 kB

Drawings (total overview)

Self-aligning pads adjustable, with o-ring

Self-aligning pads, adjustable, with O-ring, style C, flattened steel ball smooth

More information

Drawings

Self-aligning pads, adjustable, with O-ring, style C, flattened steel ball smooth

Item selection/filter

Item No.StyleD1D2L1L2ESWBall ØLoad rating
max. kN
(static load only)
CADAcc.PriceOrder
K0288.106X012C11,5M6--11,510-9on request
K0288.106X025C11,5M6--11,510-9on request
K0288.106X040C11,5M6--11,510-9on request
K0288.108X012C15M8--1513-15on request
K0288.108X025C15M8--1513-15on request
K0288.108X040C15M8--1513-15on request

Self-aligning pads, adjustable, with O-ring, style F, flattened ball with diamond grip

More information

Drawings

Self-aligning pads, adjustable, with O-ring, style F, flattened ball with diamond grip

Item selection/filter

Item No.StyleD1D2L1L2ESWBall ØLoad rating
max. kN
(static load only)
CADAcc.PriceOrder
K0288.306X012F11,5M6--11,510-9on request
K0288.306X025F11,5M6--11,510-9on request
K0288.306X040F11,5M6--11,510-9on request
K0288.308X012F15M8--1513-15on request
K0288.308X025F15M8--1513-15on request
K0288.308X040F15M8--1513-15on request

Self-aligning pads, adjustable, with O-ring, style K, flattened POM ball smooth

More information

Drawings

Self-aligning pads, adjustable, with O-ring, style K, flattened POM ball smooth

Item selection/filter

Item No.StyleD1D2L1L2ESWBall ØLoad rating
max. kN
(static load only)
CADAcc.PriceOrder
K0288.706X012K11,5M6--11,510-2on request
K0288.706X025K11,5M6--11,510-2on request
K0288.706X040K11,5M6--11,510-2on request
K0288.708X012K15M8--1513-4on request
K0288.708X025K15M8--1513-4on request
K0288.708X040K15M8--1513-4on request

Self-aligning pads, adjustable with O-ring, style O, stainless steel ball with diamond impregnated face

More information

Drawings

Self-aligning pads, adjustable with O-ring, style O, stainless steel ball with diamond impregnated face

Item selection/filter

Item No.StyleD1D2L1L2L3ESWSW1WBall ØLoad rating
max. kN
(static load only)
CADAcc.PriceOrder
K0288.506X012O11,5M6---11,510-28-9,2on request
K0288.506X025O11,5M6---11,510-28-9,2on request
K0288.506X040O11,5M6---11,510-28-9,2on request
K0288.508X012O15M8---1513-28-15,5on request
K0288.508X025O15M8---1513-28-15,5on request
K0288.508X040O15M8---1513-28-15,5on request
K0288.510X015O19,6M10---19,617328-18,8on request
K0288.510X030O19,6M10---19,617328-18,8on request
K0288.510X050O19,6M10---19,617328-18,8on request
K0288.512X020O21,9M12---21,919524-29,8on request
K0288.512X040O21,9M12---21,919524-29,8on request
K0288.512X060O21,9M12---21,919524-29,8on request
K0288.516X025O27,7M16---27,724624-50,3on request
K0288.516X050O27,7M16---27,724624-50,3on request
K0288.516X080O27,7M16---27,724624-50,3on request

Self-aligning pads, adjustable, with O-ring, style P, stainless steel ball with polyurethane face

More information

Drawings

Self-aligning pads, adjustable, with O-ring, style P, stainless steel ball with polyurethane face

Item selection/filter

Item No.Style

D1D2L1L2L3SWSW1WBall ØCADAcc.PriceOrder
K0288.606X012P11,5M6---10-28-on request
K0288.606X025P11,5M6---10-28-on request
K0288.606X040P11,5M6---10-28-on request
K0288.608X012P15M8---13-28-on request
K0288.608X025P15M8---13-28-on request
K0288.608X040P15M8---13-28-on request
K0288.610X015P19,6M10---17328-on request
K0288.610X030P19,6M10---17328-on request
K0288.610X050P19,6M10---17328-on request
K0288.612X020P21,9M12---19524-on request
K0288.612X040P21,9M12---19524-on request
K0288.612X060P21,9M12---19524-on request
K0288.616X025P27,7M16---24624-on request
K0288.616X050P27,7M16---24624-on request
K0288.616X080P27,7M16---24624-on request
