Self-aligning pads swivel angle 12°, style C
K0302_C

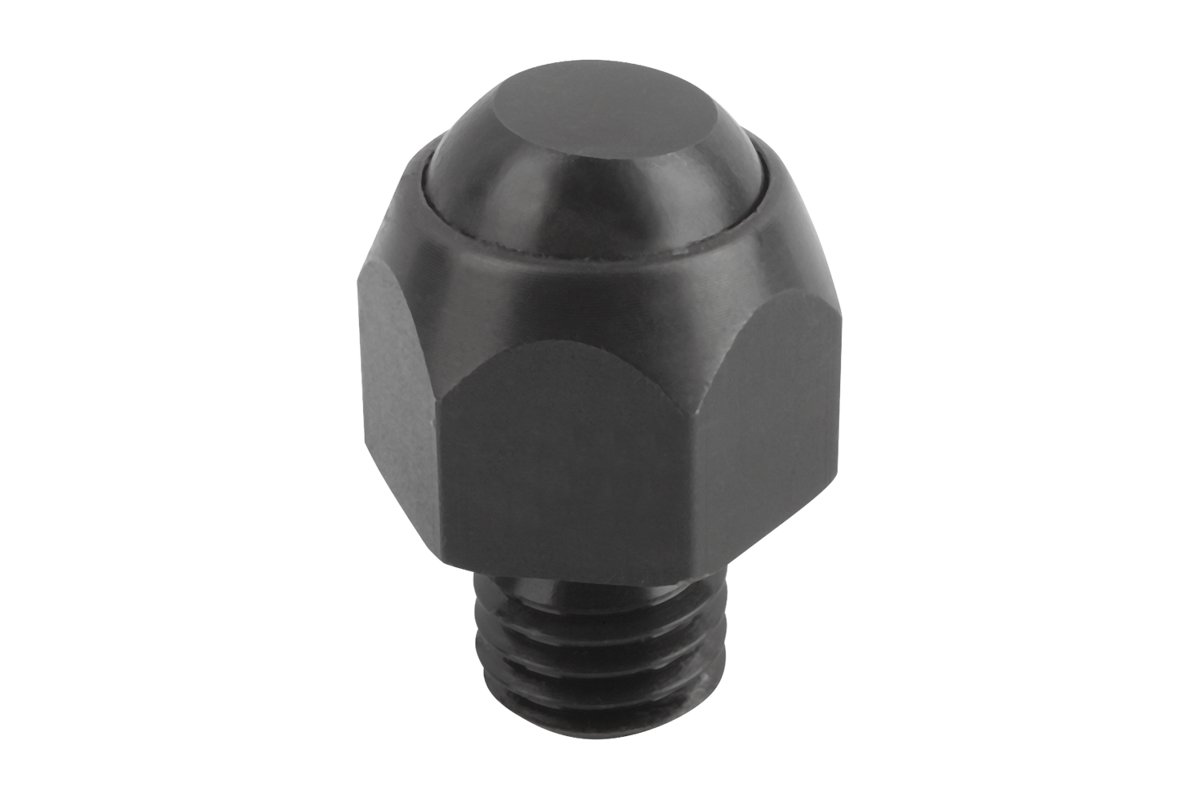

Self-aligning pads swivel angle 12°, style C

go back

Item description/product images

DescriptionMaterial:Body carbon steel.
Ball, ball-bearing steel 1.3505.
Version:Body tempered.
Ball hardened (50 - 55 HRC).
Note:Self-aligning pads serve as stops, supports and thrust pads in fixture construction. They can also be installed in existing clamping devices, e.g. "arness" clamps.

Ball is secured against rotation.
RoHS

Drawings

Self-aligning pads swivel angle 12°, style C

Item selection/filter

Item No.StyleDD1HH1Ball ØSWLoad rating
max. kN
(static load only)
CADAcc.PriceOrder
K0302.106CM66,7137101310on request
K0302.108CM86,7138101310on request
K0302.110CM10101810161925on request
K0302.112CM12101812161925on request
K0302.116CM16202716243090on request
K0302.120CM20202720243090on request
