- Locating Components
  - Support elements, locating elements, stop elements
    - Ball-end thrust screws with head, stainless steel

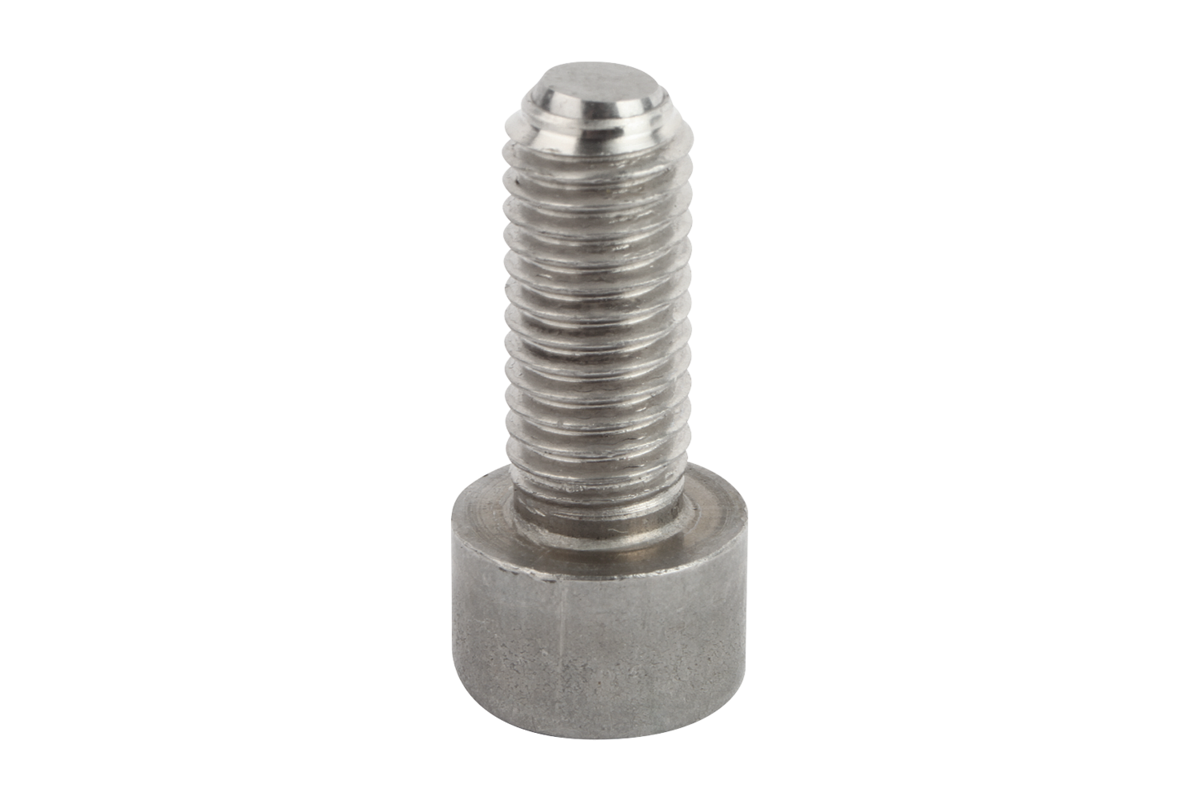

      - Ball-end thrust screws with hex. socket head, stainless steel, style B

Item description/product images

DescriptionMaterial:Stainless steelVersion:Bright.Note:Surfaces which are not plane and parallel can be firmly clamped or supported with style B with flattened ball because the movable ball can adapt itself up to 9°.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0381_B Ball-end thrust screws with hex. socket head, stainless steel, style B

88,3 kB

Drawings

Item selection/filter

Order No.	style	D	D1	D3	L	L1	L2	Ball-Ø	SW	Price
K0381.20410	B	M4	1,4	7	9,7	2,1	4	2,5	3	9.41 $ (USD)
K0381.20416	B	M4	1,4	7	15,7	2,1	4	2,5	3	9.41 $ (USD)
K0381.20420	B	M4	1,4	7	19,7	2,1	4	2,5	3	9.41 $ (USD)
K0381.20512	B	M5	2	8,5	11,7	2,4	5	3	4	9.65 $ (USD)
K0381.20516	B	M5	2	8,5	15,7	2,4	5	3	4	9.65 $ (USD)
K0381.20520	B	M5	2	8,5	19,7	2,4	5	3	4	9.65 $ (USD)
K0381.20620	B	M6	3,2	10	20	3	6	4	5	10.14 $ (USD)
K0381.20630	B	M6	3,2	10	30	3	6	4	5	10.14 $ (USD)
K0381.20640	B	M6	3,2	10	40	16	6	4	5	10.26 $ (USD)
K0381.20820	B	M8	4,5	13	20	3,5	8	5,5	6	12.62 $ (USD)
K0381.20835	B	M8	4,5	13	35	3,5	8	5,5	6	13.47 $ (USD)
K0381.20850	B	M8	4,5	13	50	22	8	5,5	6	14.53 $ (USD)
K0381.21025	B	M10	6	16	25	4,5	10	7	8	15.55 $ (USD)
K0381.21040	B	M10	6	16	40	4,5	10	7	8	16.40 $ (USD)
K0381.21060	B	M10	6	16	60	28	10	7	8	17.10 $ (USD)
K0381.21230	B	M12	7,2	18	30	5	12	8,5	10	20.51 $ (USD)
K0381.21250	B	M12	7,2	18	50	5	12	8,5	10	22.10 $ (USD)
K0381.21280	B	M12	7,2	18	80	44	12	8,5	10	23.74 $ (USD)
K0381.21640	B	M16	10,7	24	40	6	16	12	14	35.06 $ (USD)
K0381.21660	B	M16	10,7	24	60	6	16	12	14	35.65 $ (USD)
K0381.21680	B	M16	10,7	24	80	36	16	12	14	38.27 $ (USD)
