Swivel feet plates, style A
K0416_A

Swivel feet plates, style A

go back

Item description/product images

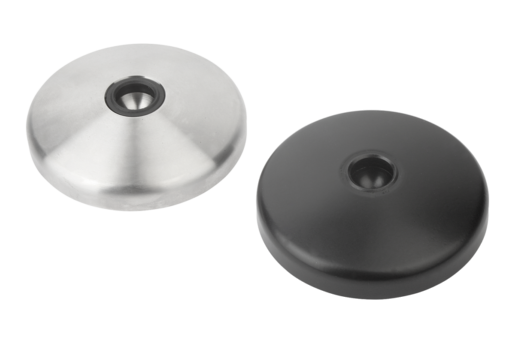

DescriptionMaterial:Plates die-cast zinc or stainless steel 1.4305 (AISI 303 equivalent).Version:Die-cast zinc plate, black powder-coated.
Stainless steel plate, bright.
Order information:

If the swivel foot plate and the threaded spindle or the ball joint are to be supplied assembled, please add the suffix “assembled” to the order number for the plate and the spindle or the ball joint.
(e.g. K0416.10301 and K0421.060151 assembled).

Note:Swivel feet consist of a plate and a threaded spindle or ball joint. Any plate can be combined with any threaded spindle or ball joint.
For matching threaded spindles see K0421.
For matching ball joints see K0422.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0416_A Swivel feet plates, style A 115 kB

Drawings

Swivel feet plates, style A

Item selection/filter

Order No.styleMain
material
D

AHLoad rating
max. kN
CADAcc.PriceOrder
K0416.10301Azinc30-1820  8.42 $ (USD)
K0416.10401Azinc40-1830  9.63 $ (USD)
K0416.10451Azinc45-1830  11.35 $ (USD)
K0416.10501Azinc50-1830  11.35 $ (USD)
K0416.10601Azinc60-1830  13.38 $ (USD)
K0416.10801Azinc80-1830  18.15 $ (USD)
K0416.11001Azinc100-1835  24.68 $ (USD)
K0416.11201Azinc120-1835  27.19 $ (USD)
K0416.10302Astainless steel30-1820  17.13 $ (USD)
K0416.10402Astainless steel40-1830  19.02 $ (USD)
K0416.10452Astainless steel45-1830  21.68 $ (USD)
K0416.10502Astainless steel50-1835  25.30 $ (USD)
K0416.10602Astainless steel60-1835  32.22 $ (USD)
K0416.10802Astainless steel80-1835  51.46 $ (USD)
K0416.11002Astainless steel100-1840  79.16 $ (USD)
K0416.11202Astainless steel120-1840  102.95 $ (USD)
