Product groups
Swivel feet plates, style D
K0416_D

Swivel feet plates, style D

go back

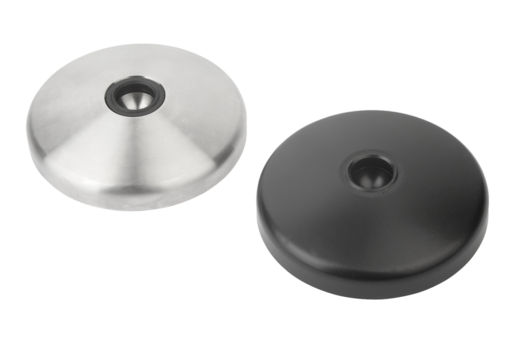

Item description/product images

DescriptionMaterial:Plate die-cast zinc or stainless steel 1.4305 (AISI 303 equivalent).
Anti-slip plate thermoplastic elastomer.
Version:Die-cast zinc plate, black powder-coated.
Stainless steel plate, bright.
Order information:

If the swivel foot plate and the threaded spindle or the ball joint are to be supplied assembled, please add the suffix “assembled” to the order number for the plate and the spindle or the ball joint.
(e.g. K0416.10301 and K0421.060151 assembled).

Note:Swivel feet consist of a plate and a threaded spindle or ball joint. Any plate can be combined with any threaded spindle or ball joint. The anti-slip plate absorbs vibrations and prevents the swivel foot slipping.
For matching threaded spindles see K0421.
For matching ball joints see K0422.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0416_D Swivel feet plates, style D 88,6 kB

Item selection/filter

Item No.StyleMain
material
DAHLoad rating
max. kN
CADAcc.PriceOrder
K0416.40801Dzinc80552030  22.01 $ (USD)
K0416.41001Dzinc100742035  29.62 $ (USD)
K0416.41201Dzinc120942035  32.16 $ (USD)
K0416.40802Dstainless steel80552035  51.40 $ (USD)
K0416.41002Dstainless steel100742040 77.52 $ (USD)
K0416.41202Dstainless steel120942040 98.60 $ (USD)
