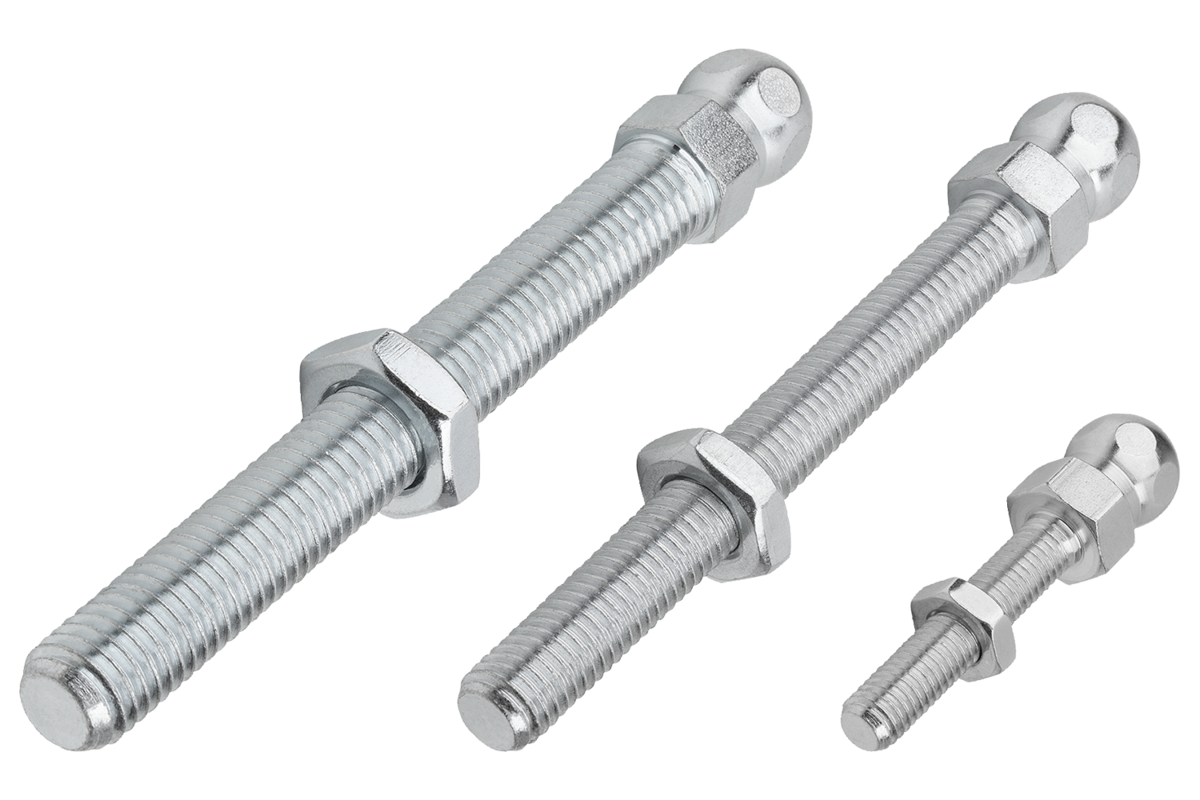

K0421Swivel feet threaded spindles steel or stainless steel |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel or stainless steel 1.4301 (AISI 304 equivalent).Version:Steel trivalent blue passivated.
Stainless steel bright.Order information:If the threaded spindle and the plate are to be supplied assembled, please add the suffix “assembled” to the order number for the spindle and plate.

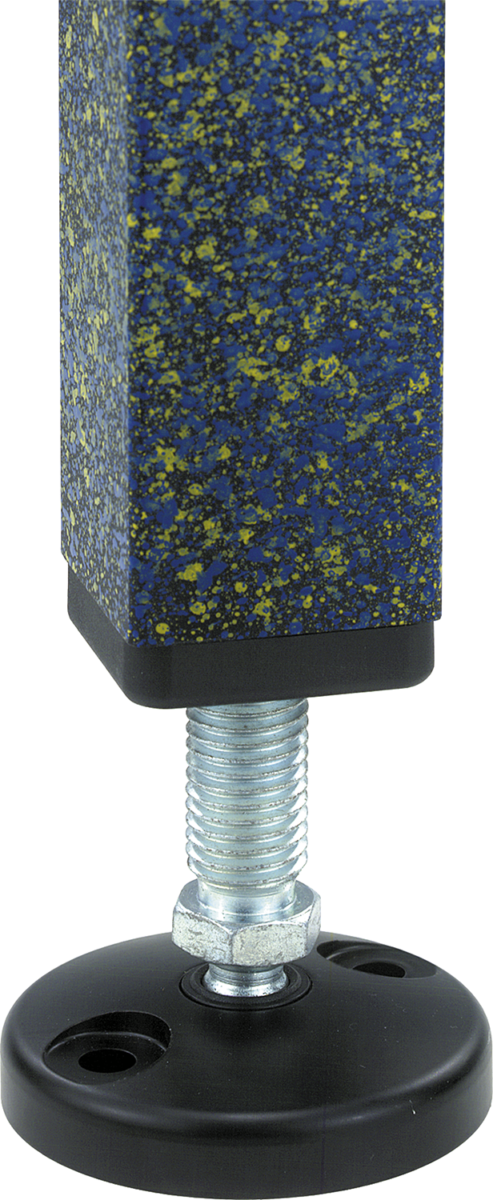

(e.g. K0421.060151 and K0415.1030 assembled.) Note:Swivel feet consist of a plate and a threaded spindle. Any plate can be combined with any threaded spindle. The height of the complete swivel foot is calculated by the length of the threaded spindle + height of hexagon + 22.5 mm. (Overall height of swivel foot = L + L1 + 22.5 mm). DownloadHere is all the information as a PDF datasheet:
|
| Item No. | Main
material | D1 | L | L1 | SW | Load rating
max. kN | CAD | Acc. | Price | Order |
|---|
| K0421.060151 | steel | M6 | 15 | 7,5 | 14 | 2 | | | on request | | | K0421.060301 | steel | M6 | 30 | 7,5 | 14 | 2 | | | on request | | | K0421.080401 | steel | M8 | 40 | 7,5 | 14 | 3,5 | | | on request | | | K0421.080801 | steel | M8 | 80 | 7,5 | 14 | 3,5 | | | on request | | | K0421.100451 | steel | M10 | 45 | 7,5 | 14 | 4,7 | | | on request | | | K0421.100701 | steel | M10 | 70 | 7,5 | 14 | 4,7 | | | on request | | | K0421.100901 | steel | M10 | 90 | 7,5 | 14 | 4,7 | | | on request | | | K0421.101251 | steel | M10 | 125 | 7,5 | 14 | 4,7 | | | on request | | | K0421.101501 | steel | M10 | 150 | 7,5 | 14 | 4,7 | | | on request | | | K0421.120451 | steel | M12 | 45 | 7,5 | 14 | 7,7 | | | on request | | | K0421.120661 | steel | M12 | 66 | 7,5 | 14 | 7,7 | | | on request | | | K0421.121001 | steel | M12 | 100 | 7,5 | 14 | 7,7 | | | on request | | | K0421.121251 | steel | M12 | 125 | 7,5 | 14 | 7,7 | | | on request | | | K0421.121501 | steel | M12 | 150 | 7,5 | 14 | 7,7 | | | on request | | | K0421.140661 | steel | M14 | 66 | 7,5 | 14 | 11,1 | | | on request | | | K0421.141001 | steel | M14 | 100 | 7,5 | 14 | 11,1 | | | on request | | | K0421.141251 | steel | M14 | 125 | 7,5 | 14 | 11,1 | | | on request | | | K0421.141501 | steel | M14 | 150 | 7,5 | 14 | 11,1 | | | on request | | | K0421.160661 | steel | M16 | 66 | 7,5 | 17 | 14,5 | | | on request | | | K0421.161001 | steel | M16 | 100 | 7,5 | 17 | 14,5 | | | on request | | | K0421.161251 | steel | M16 | 125 | 7,5 | 17 | 14,5 | | | on request | | | K0421.161501 | steel | M16 | 150 | 7,5 | 17 | 14,5 | | | on request | | | K0421.162001 | steel | M16 | 200 | 7,5 | 17 | 14,5 | | | on request | | | K0421.200851 | steel | M20 | 85 | 10,5 | 22 | 24,3 | | | on request | | | K0421.201001 | steel | M20 | 100 | 10,5 | 22 | 24,3 | | | on request | | | K0421.201251 | steel | M20 | 125 | 10,5 | 22 | 24,3 | | | on request | | | K0421.201501 | steel | M20 | 150 | 10,5 | 22 | 24,3 | | | on request | | | K0421.202001 | steel | M20 | 200 | 10,5 | 22 | 24,3 | | | on request | | | K0421.240851 | steel | M24 | 85 | 10,5 | 24 | 36,1 | | | on request | | | K0421.241001 | steel | M24 | 100 | 10,5 | 24 | 36,1 | | | on request | | | K0421.241251 | steel | M24 | 125 | 10,5 | 24 | 36,1 | | | on request | | | K0421.241501 | steel | M24 | 150 | 10,5 | 24 | 36,1 | | | on request | | | K0421.242001 | steel | M24 | 200 | 10,5 | 24 | 36,1 | | | on request | | | K0421.060152 | stainless steel | M6 | 15 | 7,5 | 14 | 2 | | | on request | | | K0421.060302 | stainless steel | M6 | 30 | 7,5 | 14 | 2 | | | on request | | | K0421.080402 | stainless steel | M8 | 40 | 7,5 | 14 | 3,5 | | | on request | | | K0421.080802 | stainless steel | M8 | 80 | 7,5 | 14 | 3,5 | | | on request | | | K0421.100452 | stainless steel | M10 | 45 | 7,5 | 14 | 4,7 | | | on request | | | K0421.100702 | stainless steel | M10 | 70 | 7,5 | 14 | 4,7 | | | on request | | | K0421.100902 | stainless steel | M10 | 90 | 7,5 | 14 | 4,7 | | | on request | | | K0421.101252 | stainless steel | M10 | 125 | 7,5 | 14 | 4,7 | | | on request | | | K0421.101502 | stainless steel | M10 | 150 | 7,5 | 14 | 4,7 | | | on request | | | K0421.120452 | stainless steel | M12 | 45 | 7,5 | 14 | 7,7 | | | on request | | | K0421.120662 | stainless steel | M12 | 66 | 7,5 | 14 | 7,7 | | | on request | | | K0421.121002 | stainless steel | M12 | 100 | 7,5 | 14 | 7,7 | | | on request | | | K0421.121252 | stainless steel | M12 | 125 | 7,5 | 14 | 7,7 | | | on request | | | K0421.121502 | stainless steel | M12 | 150 | 7,5 | 14 | 7,7 | | | on request | | | K0421.140662 | stainless steel | M14 | 66 | 7,5 | 14 | 11,1 | | | on request | | | K0421.141002 | stainless steel | M14 | 100 | 7,5 | 14 | 11,1 | | | on request | | | K0421.141252 | stainless steel | M14 | 125 | 7,5 | 14 | 11,1 | | | on request | | | K0421.141502 | stainless steel | M14 | 150 | 7,5 | 14 | 11,1 | | | on request | | | K0421.160662 | stainless steel | M16 | 66 | 7,5 | 17 | 14,5 | | | on request | | | K0421.161002 | stainless steel | M16 | 100 | 7,5 | 17 | 14,5 | | | on request | | | K0421.161252 | stainless steel | M16 | 125 | 7,5 | 17 | 14,5 | | | on request | | | K0421.161502 | stainless steel | M16 | 150 | 7,5 | 17 | 14,5 | | | on request | | | K0421.162002 | stainless steel | M16 | 200 | 7,5 | 17 | 14,5 | | | on request | | | K0421.200852 | stainless steel | M20 | 85 | 10,5 | 22 | 24,3 | | | on request | | | K0421.201002 | stainless steel | M20 | 100 | 10,5 | 22 | 24,3 | | | on request | | | K0421.201252 | stainless steel | M20 | 125 | 10,5 | 22 | 24,3 | | | on request | | | K0421.201502 | stainless steel | M20 | 150 | 10,5 | 22 | 24,3 | | | on request | | | K0421.202002 | stainless steel | M20 | 200 | 10,5 | 22 | 24,3 | | | on request | | | K0421.240852 | stainless steel | M24 | 85 | 10,5 | 24 | 36,1 | | | on request | | | K0421.241002 | stainless steel | M24 | 100 | 10,5 | 24 | 36,1 | | | on request | | | K0421.241252 | stainless steel | M24 | 125 | 10,5 | 24 | 36,1 | | | on request | | | K0421.241502 | stainless steel | M24 | 150 | 10,5 | 24 | 36,1 | | | on request | | | K0421.242002 | stainless steel | M24 | 200 | 10,5 | 24 | 36,1 | | | on request | |
