Swivel feet ball joints with internal thread
K0422

Swivel feet ball joints with internal thread

go back

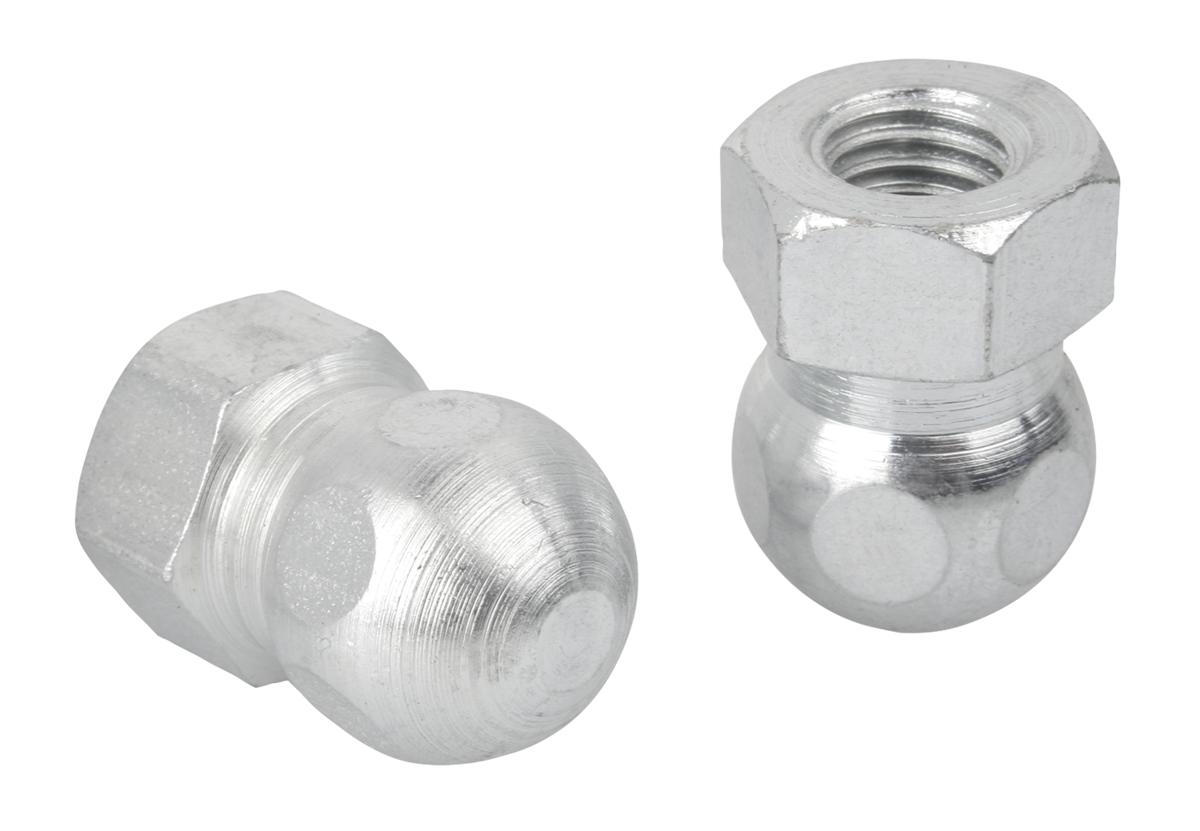

Item description/product images

DescriptionMaterial:Steel or stainless steel 1.4301 (AISI 304 equivalent).Version:Steel trivalent blue passivated.
Stainless steel bright.
Order information:

If the ball joint and plate are to be supplied assembled, please add the suffix “assembled” to the order number for the ball joint and plate.
(e.g. K0422.061 and K0415.1030 assembled.)

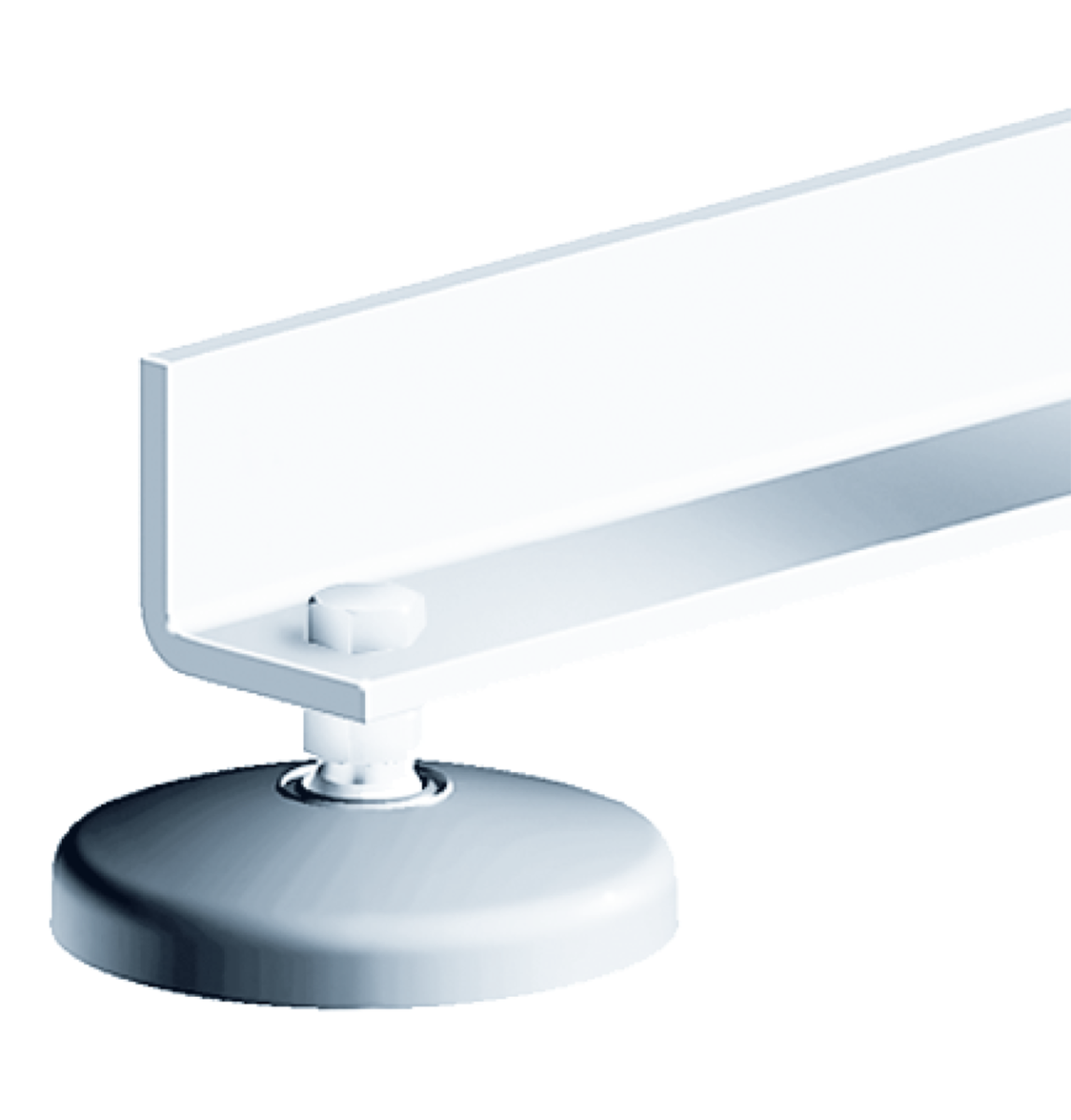

Note:For fastening swivel feet with standard screws.

Swivel feet consist of a ball joint and a plate. Any ball joint can be combined with any plate.
The height of the complete swivel foot is calculated by the height of the hexagon + 22.5 mm.
(Overall height of swivel foot = L1 + 22.5 mm).
RoHS
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0422 Swivel feet ball joints with internal thread 205 kB

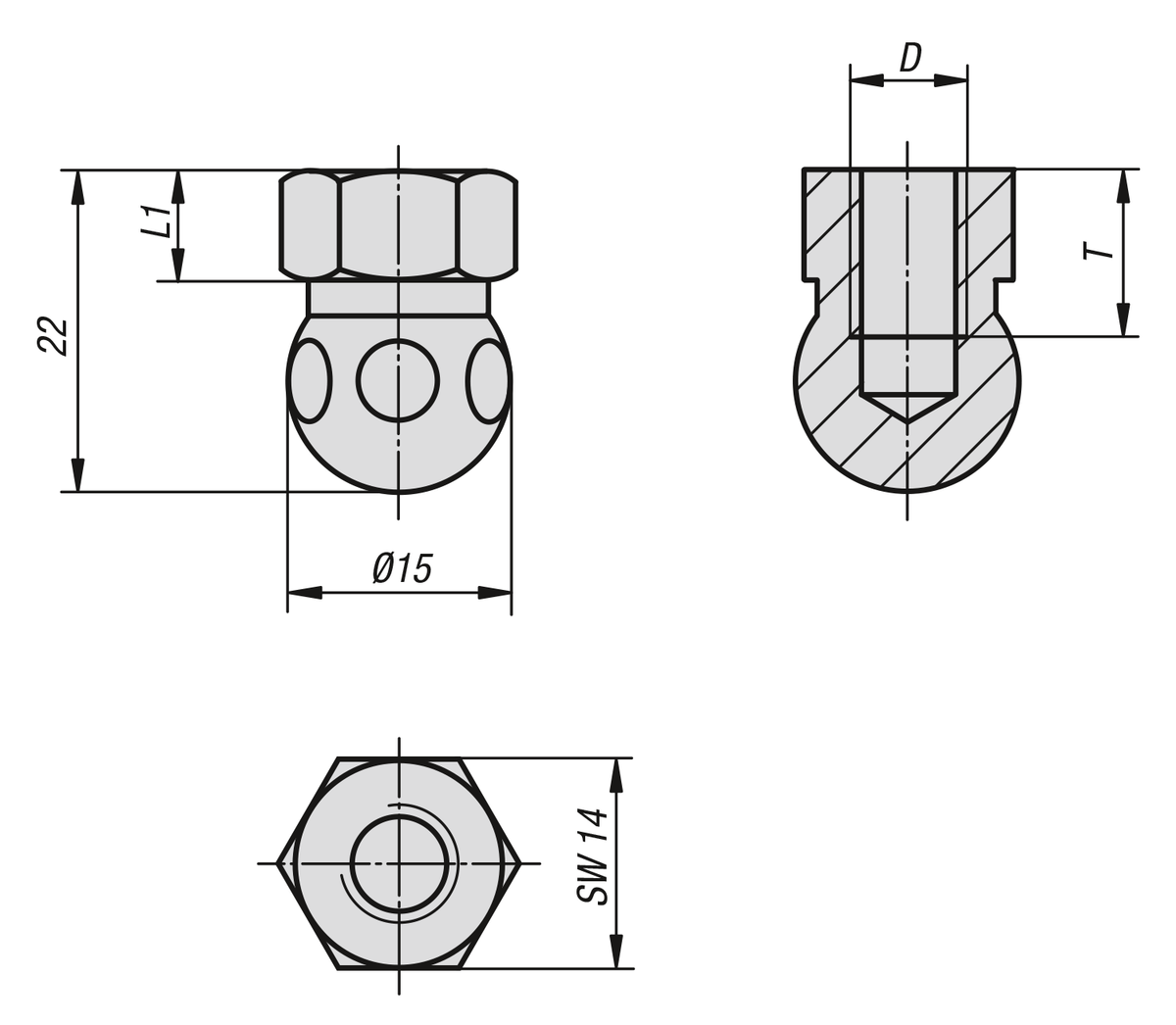

Drawings

Swivel feet ball joints with internal thread

Item selection/filter

Item No.Main
material
DL1TCADAcc.PriceOrder
K0422.061steelM67,510on request
K0422.062stainless steelM67,510on request
K0422.081steelM87,510on request
K0422.082stainless steelM87,510on request
