Product groups
Levelling feet platesplastic
K0423

Levelling feet plates plastic

go back

Item description/product images

Show/filter all items

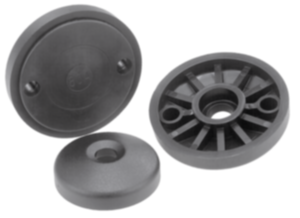

DescriptionMaterial:Plates, thermoplastic, fiberglass reinforced.
Anti-slip plate thermoplastic elastomer.
Version:black.Order information:

If the levelling foot plate and the threaded spindle are to be supplied assembled, please add the suffix “assembled” to the order number for the plate and spindle. (e.g. K0423.1060 and K0427.120661 assembled.)

Note:Levelling feet consist of a plate and a threaded spindle. Any plate can be combined with any threaded spindle.
The anti-slip plate absorbs vibrations and prevents the levelling foot slipping.
For matching threaded spindles see K0427.
Drawing reference:

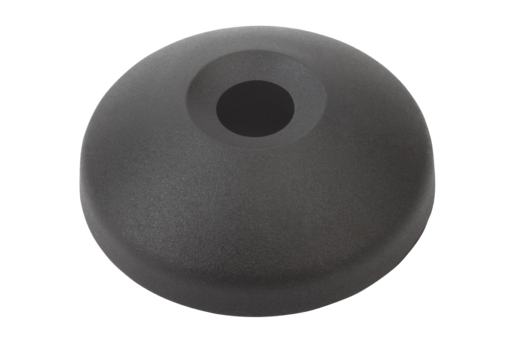

style A without screw-on hole, without anti-slip plate
style B without screw-on hole, with anti-slip plate

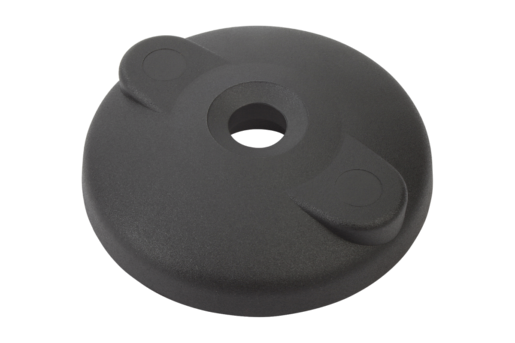

style C with screw-on hole (closed), without anti-slip plate
style D with screw-on hole (closed), with anti-slip plate

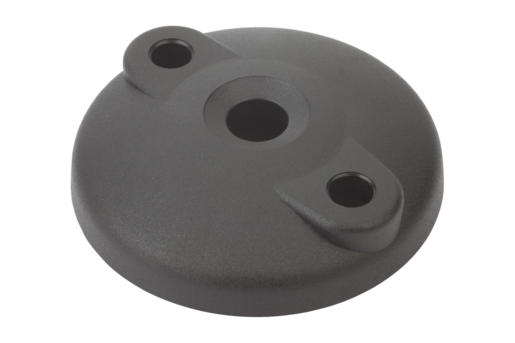

style E with screw-on hole (open), without anti-slip plate
style F with screw-on hole (open), with anti-slip plate

1) From plate Ø 80
RoHS
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0423 Levelling feet platesplastic 273 kB

Drawings (total overview)

Levelling feet platesplastic

Levelling feet plates, plastic, style A

More information

Drawings

Levelling feet plates, plastic, style A

Item selection/filter

Item No.StyleDHLoad rating
max. kN
CADAcc.PriceOrder
K0423.1060A601812 on request
K0423.1080A801812 on request
K0423.1100A1001812 on request

Levelling feet plates, plastic, style B

More information

Drawings

Levelling feet plates, plastic, style B

Item selection/filter

Item No.StyleDHLoad rating
max. kN
CADAcc.PriceOrder
K0423.2060B602012 on request
K0423.2080B802012 on request
K0423.2100B1002012 on request

Levelling feet plates, plastic, style C

More information

Drawings

Levelling feet plates, plastic, style C

Item selection/filter

Item No.StyleD

AHLoad rating
max. kN
CADAcc.PriceOrder
K0423.3080C80551812 on request
K0423.3100C100741812 on request

Levelling feet plates, plastic, style D

More information

Drawings

Levelling feet plates, plastic, style D

Item selection/filter

Item No.StyleD

AHLoad rating
max. kN
CADAcc.PriceOrder
K0423.4080D80552012 on request
K0423.4100D100742012 on request

Levelling feet plates, plastic, style E

More information

Drawings

Levelling feet plates, plastic, style E

Item selection/filter

Item No.StyleD

AHLoad rating
max. kN
CADAcc.PriceOrder
K0423.5080E80551812 on request
K0423.5100E100741812 on request

Levelling feet plates, plastic, style F

More information

Drawings

Levelling feet plates, plastic, style F

Item selection/filter

Item No.StyleD

AHLoad rating
max. kN
CADAcc.PriceOrder
K0423.6080F80552012 on request
K0423.6100F100742012 on request
