Product groups
Levelling feet platesdie-cast zinc or stainless steel
K0425

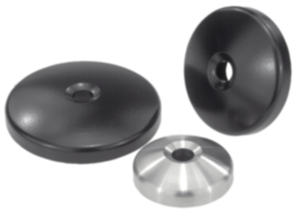

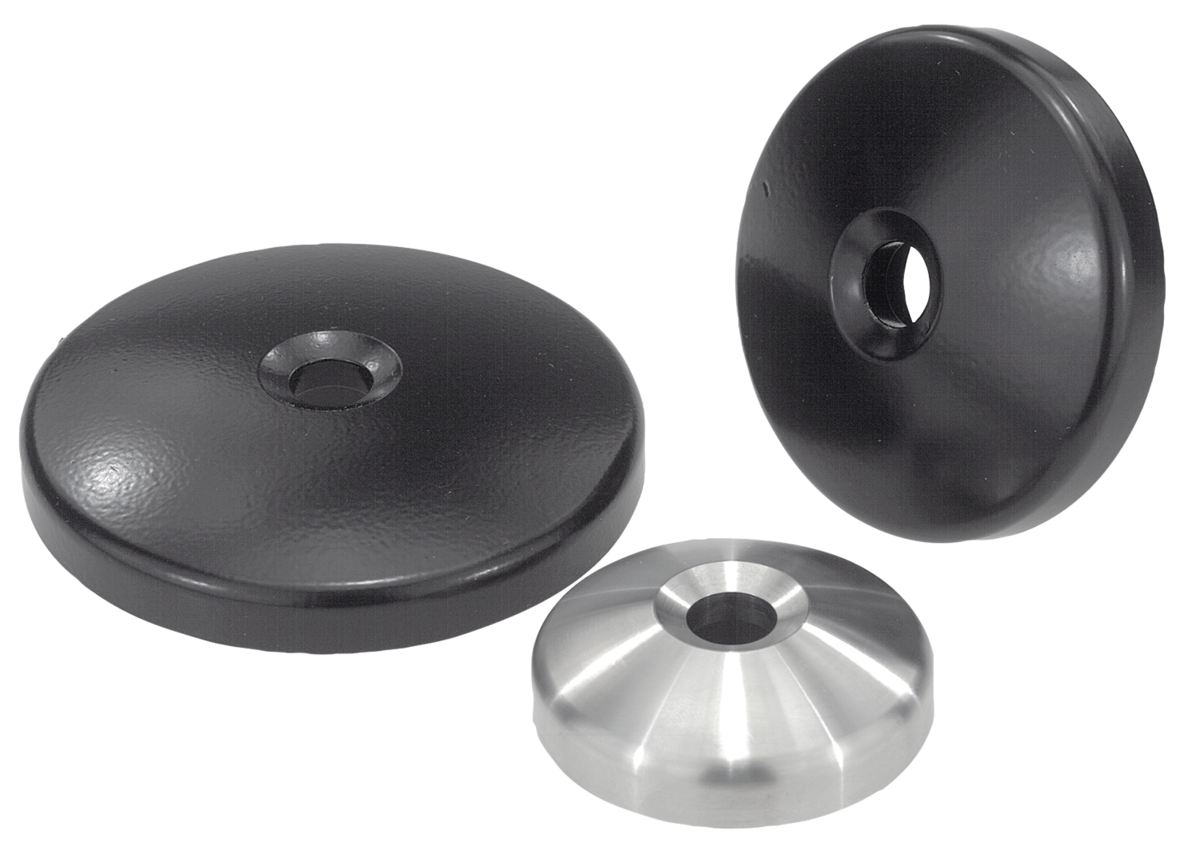

Levelling feet plates die-cast zinc or stainless steel

go back

Item description/product images

DescriptionMaterial:Plate die-cast zinc or stainless steel 1.4305 (AISI 303 equivalent).
Anti-slip plate thermoplastic elastomer.
Version:Die-cast zinc plate, black powder-coated.
Stainless steel plate, bright.
Order information:

If the levelling foot plate and the threaded spindle are to be supplied assembled, please add the suffix “assembled” to the order number for the plate and spindle.
(e.g. K0425.10601 and K0427.120661 assembled).

Note:Levelling feet consist of a plate and a threaded spindle. Any plate can be combined with any threaded spindle.
The anti-slip plate absorbs vibrations and prevents the levelling foot slipping.
For matching threaded spindles see K0427.
Drawing reference:

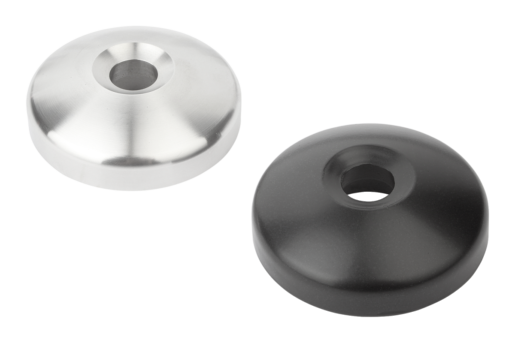

style A
without screw-on hole, without anti-slip plate
style B
without screw-on hole, with anti-slip plate

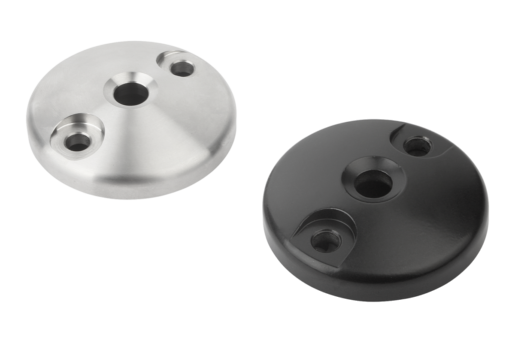

style C
with screw-on hole (open), without anti-slip plate
style D
with screw-on hole (open), with anti-slip plate

1) From plate Ø 80
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0425 Levelling feet platesdie-cast zinc or stainless steel 181 kB

Drawings (total overview)

Levelling feet platesdie-cast zinc or stainless steel

Levelling feet plates, style A

More information

Drawings

Levelling feet plates, style A

Item selection/filter

Item No.StyleMain
material
D

AHLoad rating
max. kN
CADAcc.PriceOrder
K0425.10401Azinc40-1820  on request
K0425.10451Azinc45-1825  on request
K0425.10501Azinc50-1825  on request
K0425.10601Azinc60-1835  on request
K0425.10801Azinc80-1835  on request
K0425.11001Azinc100-1835  on request
K0425.11201Azinc120-1835  on request
K0425.10602Astainless steel60-1845  on request
K0425.10802Astainless steel80-1845  on request
K0425.11002Astainless steel100-1845  on request

Levelling feet plates, style B

More information

Drawings

Levelling feet plates, style B

Item selection/filter

Item No.StyleMain
material
D

AHLoad rating
max. kN
CADAcc.PriceOrder
K0425.20601Bzinc60-2035  on request
K0425.20801Bzinc80-2035  on request
K0425.21001Bzinc100-2035  on request
K0425.21201Bzinc120-2035  on request
K0425.20602Bstainless steel60-2045  on request
K0425.20802Bstainless steel80-2045  on request
K0425.21002Bstainless steel100-2045  on request

Levelling feet plates, style C

More information

Drawings

Levelling feet plates, style C

Item selection/filter

Item No.StyleMain
material
DAHLoad rating
max. kN
CADAcc.PriceOrder
K0425.30801Czinc80551835  on request
K0425.31001Czinc100741835  on request
K0425.30802Cstainless steel80551845  on request
K0425.31002Cstainless steel100741845  on request

Levelling feet plates, style D

More information

Drawings

Levelling feet plates, style D

Item selection/filter

Item No.StyleMain
material
D

AHLoad rating
max. kN
CADAcc.PriceOrder
K0425.40801Dzinc80552035  on request
K0425.41001Dzinc100742035  on request
K0425.40802Dstainless steel80552045  on request
K0425.41002Dstainless steel100742045  on request
