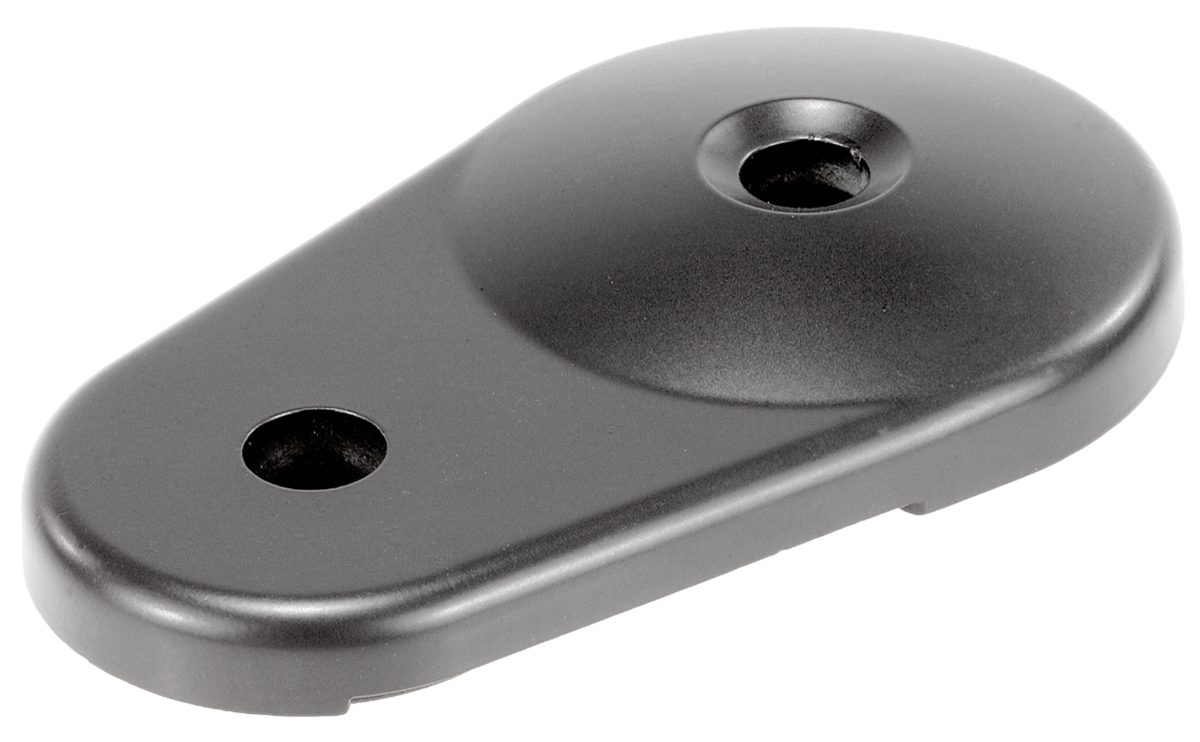

Levelling feet plates extended die-cast zinc
K0426

Levelling feet plates extended die-cast zinc

go back

Item description/product images

DescriptionMaterial:Plate die-cast zinc.
Anti-slip plate thermoplastic elastomer.
Version:Plate black powder-coated.Order information:

If the levelling foot plate and the threaded spindle are to be supplied assembled, please add the suffix “assembled” to the order number for the plate and spindle.
(e.g. K0426.30801 and K0427.120661 assembled.)

Note:Levelling feet consist of a plate and a threaded spindle. Any plate can be combined with any threaded spindle.
The anti-slip plate absorbs vibrations and prevents the levelling foot slipping.
For matching threaded spindles see K0427.
Drawing reference:
style C with screw-on hole, without anti-slip plate
style D with screw-on hole, with anti-slip plate
RoHS
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0426 Levelling feet plates extended die-cast zinc 198 kB

Drawings (total overview)

Levelling feet plates extended die-cast zinc

Levelling feet plates extended die-cast zinc, style C

More information

Drawings

Levelling feet plates extended die-cast zinc, style C

Item selection/filter

Item No.

StyleDHLoad rating
max. kN
CADAcc.PriceOrder
K0426.30801C801835 on request

Levelling feet plates extended die-cast zinc, style D

More information

Drawings

Levelling feet plates extended die-cast zinc, style D

Item selection/filter

Item No.

StyleDHLoad rating
max. kN
CADAcc.PriceOrder
K0426.40801D802035 on request
