Product groups
Levelling feetfor aluminium profiles
K0432

Levelling feet for aluminium profiles

go back

Item description/product images

DescriptionMaterial:Body fiberglass reinforced thermoplastic.
Spindle and washer steel.
Version:Body black.
Spindle and washer electro zinc-plated.

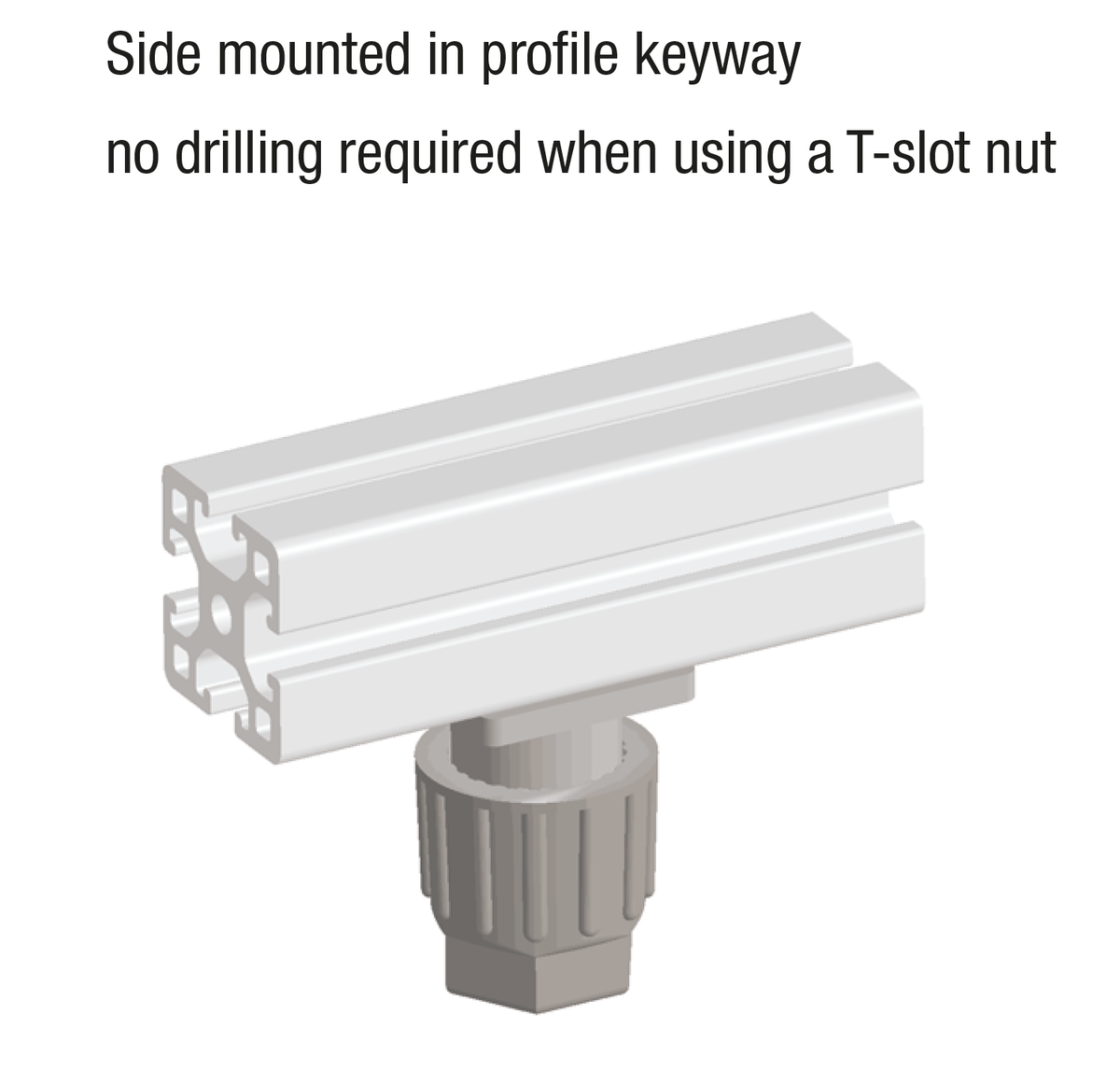

Note:These levelling feet are suitable for tables and lighter installations. The foot height is adjusted by turning the base nut by hand or spanner. The pins on the top flange center the foot and prevent it turning. These levelling feet can be attached to aluminium profiles using T-slot nuts, no need for drilling.Drawing reference:
1) support flange
2) nut
RoHS
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0432 Levelling feetfor aluminium profiles 281 kB

Drawings

Levelling feetfor aluminium profiles

Item selection/filter

Item No.

A
for
aluminium profile
BC
for slot
DD1D2
for
countersunk screw
HH1LSW1Load rating
max. kN
(static load only)
StatusCADAcc.PriceOrder
K0432.3008063020,5830M6M435-5044-599221,5on request
K0432.3008083020,5830M8M435-5044-599221,5on request
K0432.3010063020,51030M6M435-5044-599221,5on request
K0432.3010083020,51030M8M435-5044-599221,5on request
K0432.4008084028840M8M645-6554-749301,5on request
K0432.40100640281040M6M645-6554-749301,5on request
K0432.40100840281040M8M645-6554-749301,5on request
