Product groups
Levelling feet
K0433

Levelling feet

go back

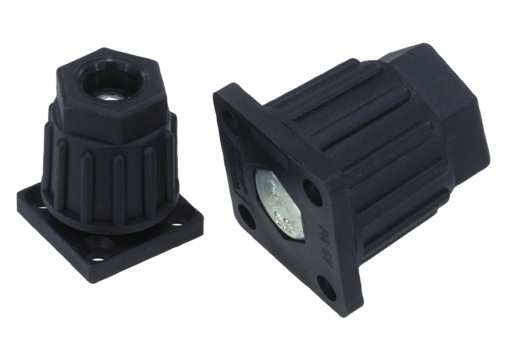

Item description/product images

DescriptionMaterial:Body fiberglass reinforced thermoplastic.
Hexagon head screw steel.
Version:Body black.
Hexagon head screw electro zinc-plated.
Note:The flat top flange and sunken screw head make these levelling feet ideal for mounting on smooth surfaces.
The foot height is adjusted by turning the base nut by hand or spanner.
Drawing reference:
1) support flange
2) nut
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0433 Levelling feet 156 kB

Drawings

Levelling feet

Item selection/filter

Item No.

ABDD2
for
countersunk screw
H1SW1Load rating
max. kN
(static load only)
CADAcc.PriceOrder
K0433.30043020,530M435-50221,5 11.55 $ (USD)
K0433.4006402840M645-65301,5 12.74 $ (USD)
