Product groups
Swivel feet plates extended plastic
K0654

Swivel feet plates extended plastic

go back

Item description/product images

DescriptionMaterial:Plates, thermoplastic, fiberglass reinforced.
Anti-slip plate thermoplastic elastomer.
Version:black.Order information:

If the swivel foot plate and the threaded spindle or ball joint are to be supplied assembled, please add the suffix “assembled” to the order number for the plate and the spindle or ball joint.
(e.g. K0654.30803 and K0421.060151 assembled.)

Note:Swivel feet consist of a plate and a threaded spindle or ball joint. Any plate can be combined with any threaded spindle or ball joint. The anti-slip plate absorbs vibrations and prevents the swivel foot slipping.
For matching threaded spindles see K0421.
For matching ball joints see K0422.
Drawing reference:

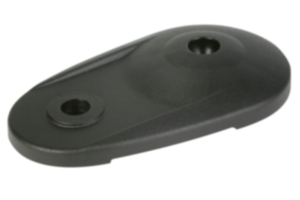

style C with screw-on hole, without anti-slip plate

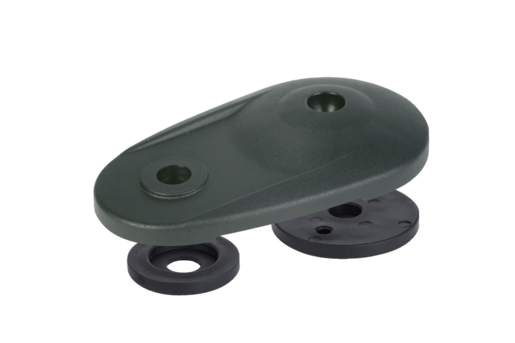

style D with screw-on hole, with anti-slip plate
RoHS
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0654 Swivel feet plates extended plastic 219 kB

Drawings (total overview)

Swivel feet plates extended plastic

Swivel feet plates extended, plastic, style C

More information

Drawings

Swivel feet plates extended, plastic, style C

Item selection/filter

Item No.

StyleDHLoad rating
max. kN
CADAcc.PriceOrder
K0654.30803C801930on request

Swivel feet plates extended, plastic, style D

More information

Drawings

Swivel feet plates extended, plastic, style D

Item selection/filter

Item No.

StyleDHLoad rating
max. kN
CADAcc.PriceOrder
K0654.40803D802130on request
