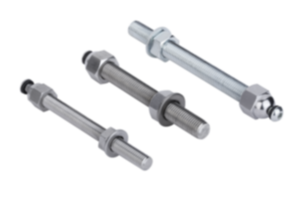

Levelling feet threaded spindlessteel or stainless steel
K0669

Levelling feet threaded spindles steel or stainless steel

go back

Item description/product images

DescriptionMaterial:Steel or stainless steel 1.4301 (AISI 304 equivalent).Version:Steel electro zinc-plated.
Stainless steel bright.
Order information:

If the levelling foot plate and the threaded spindle are to be supplied assembled, please add the suffix “assembled” to the order number for the plate and spindle.
(e.g. K0669.080501 and K0672.10801 assembled).

Note:Levelling feet consist of a plate and a threaded spindle. Any threaded spindle can be combined with any plate.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0669 Levelling feet threaded spindlessteel or stainless steel 136 kB

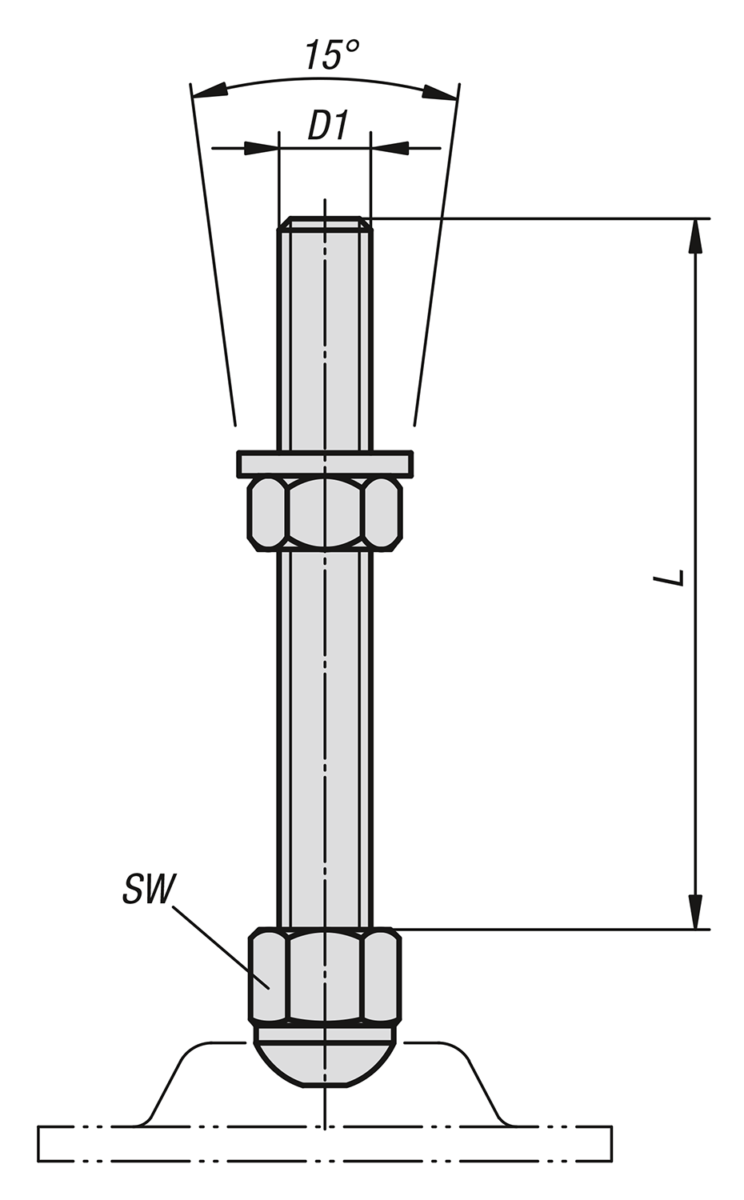

Drawings

Levelling feet threaded spindlessteel or stainless steel

Item selection/filter

Item No.

Main
material
D1LSWLoad rating
max. kN
CADAcc.PriceOrder
K0669.080501steelM8501740 4.40 $ (USD)
K0669.080801steelM8801740 4.48 $ (USD)
K0669.081001steelM81001740 4.59 $ (USD)
K0669.081201steelM81201740 4.67 $ (USD)
K0669.081501steelM81501740 4.74 $ (USD)
K0669.100501steelM10501740 5.32 $ (USD)
K0669.100801steelM10801740 5.36 $ (USD)
K0669.101001steelM101001740 5.56 $ (USD)
K0669.101201steelM101201740 5.74 $ (USD)
K0669.101501steelM101501740 5.78 $ (USD)
K0669.120501steelM12501940 5.27 $ (USD)
K0669.120801steelM12801940 5.32 $ (USD)
K0669.121001steelM121001940 5.43 $ (USD)
K0669.121201steelM121201940 5.78 $ (USD)
K0669.121501steelM121501940 5.87 $ (USD)
K0669.160501steelM16502440 5.32 $ (USD)
K0669.160801steelM16802440 5.70 $ (USD)
K0669.161001steelM161002440 6.37 $ (USD)
K0669.161201steelM161202440 6.85 $ (USD)
K0669.161501steelM161502440 7.32 $ (USD)
K0669.200501steelM20503040 7.64 $ (USD)
K0669.200801steelM20803040 8.35 $ (USD)
K0669.201001steelM201003040 9.53 $ (USD)
K0669.201201steelM201203040 9.98 $ (USD)
K0669.201501steelM201503040 10.91 $ (USD)
K0669.080502stainless steelM8501740 5.56 $ (USD)
K0669.080802stainless steelM8801740 5.84 $ (USD)
K0669.081002stainless steelM81001740 6.76 $ (USD)
K0669.081202stainless steelM81201740 6.93 $ (USD)
K0669.081502stainless steelM81501740 7.22 $ (USD)
K0669.100502stainless steelM10501740 7.41 $ (USD)
K0669.100802stainless steelM10801740 7.72 $ (USD)
K0669.101002stainless steelM101001740 7.92 $ (USD)
K0669.101202stainless steelM101201740 8.14 $ (USD)
K0669.101502stainless steelM101501740 8.32 $ (USD)
K0669.120502stainless steelM12501940 7.72 $ (USD)
K0669.120802stainless steelM12801940 7.92 $ (USD)
K0669.121002stainless steelM121001940 8.53 $ (USD)
K0669.121202stainless steelM121201940 8.82 $ (USD)
K0669.121502stainless steelM121501940 9.11 $ (USD)
K0669.160502stainless steelM16502440 8.09 $ (USD)
K0669.160802stainless steelM16802440 8.66 $ (USD)
K0669.161002stainless steelM161002440 9.21 $ (USD)
K0669.161202stainless steelM161202440 10.60 $ (USD)
K0669.161502stainless steelM161502440 11.10 $ (USD)
K0669.200502stainless steelM20503040 12.93 $ (USD)
K0669.200802stainless steelM20803040 14.01 $ (USD)
K0669.201002stainless steelM201003040 14.86 $ (USD)
K0669.201202stainless steelM201203040 15.45 $ (USD)
K0669.201502stainless steelM201503040 16.21 $ (USD)
