Product groups
Levelling feet plates with rubber basesteel or stainless steel

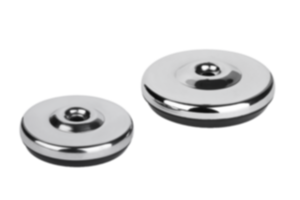

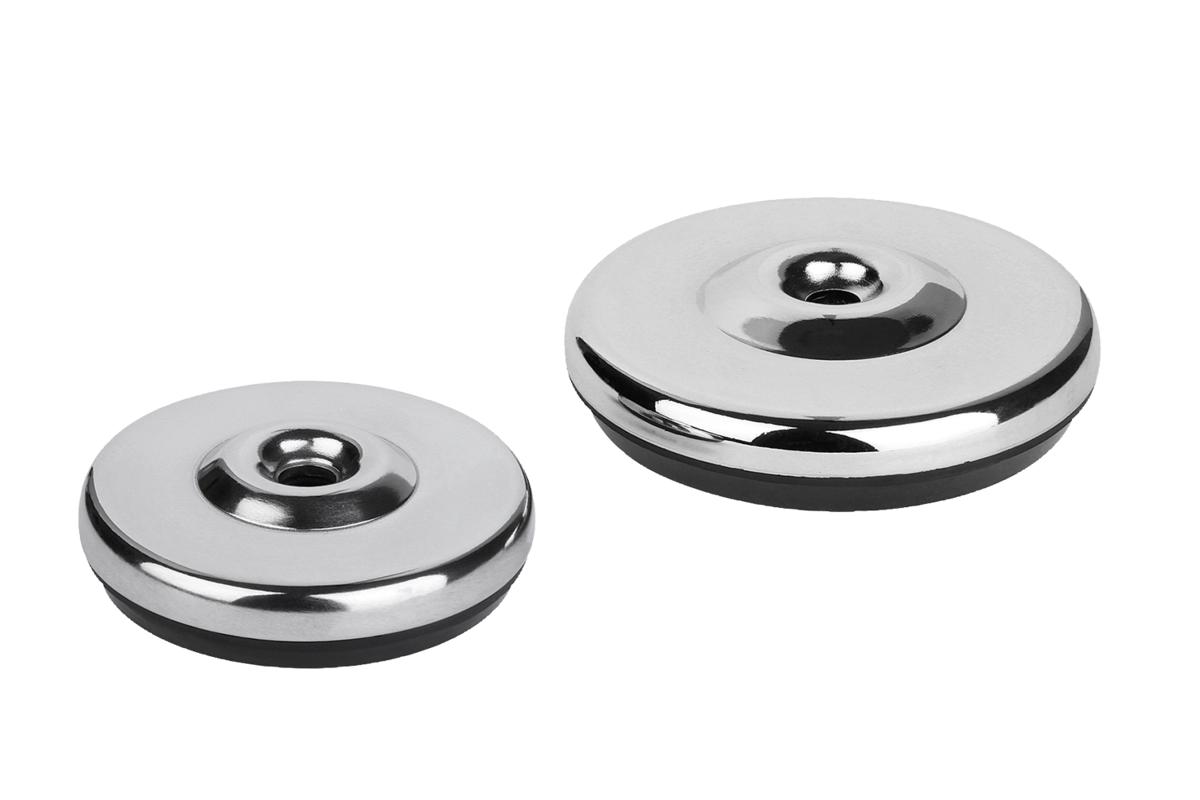

Levelling feet plates with rubber base steel or stainless steel

go back

Item description/product images

DescriptionMaterial:Plate steel or stainless steel 1.4301 (AISI 304 equivalent).
Rubber base NBR, Shore 70A.
Version:Steel chromed.
Stainless steel polished.
Order information:

If the levelling foot plate and the threaded spindle are to be supplied assembled, please add the suffix “assembled” to the order number for the plate and spindle
(e.g. K0673.10801 and K0669.080501 assembled).

Note:Levelling feet consist of a plate and a threaded spindle. Any plate can be combined with any threaded spindle.

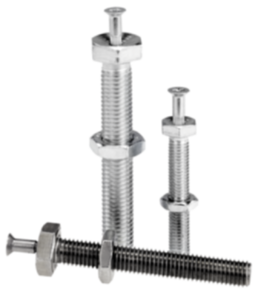

For matching threaded spindles see K0669.
Drawing reference:
1) X with spindle size:
Special features:
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0673 Levelling feet plates with rubber basesteel or stainless steel 95,3 kB

Item selection/filter

Order No.Main

HLoad rating
max. kN
K0673.10801steel80178,5 12.93 $ (USD)
K0673.11001steel1001920 17.59 $ (USD)
K0673.10802stainless steel80178,5 18.49 $ (USD)
K0673.11002stainless steel1001920 28.64 $ (USD)
