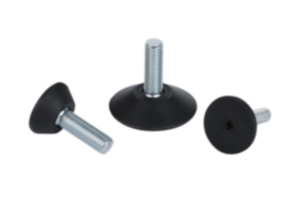

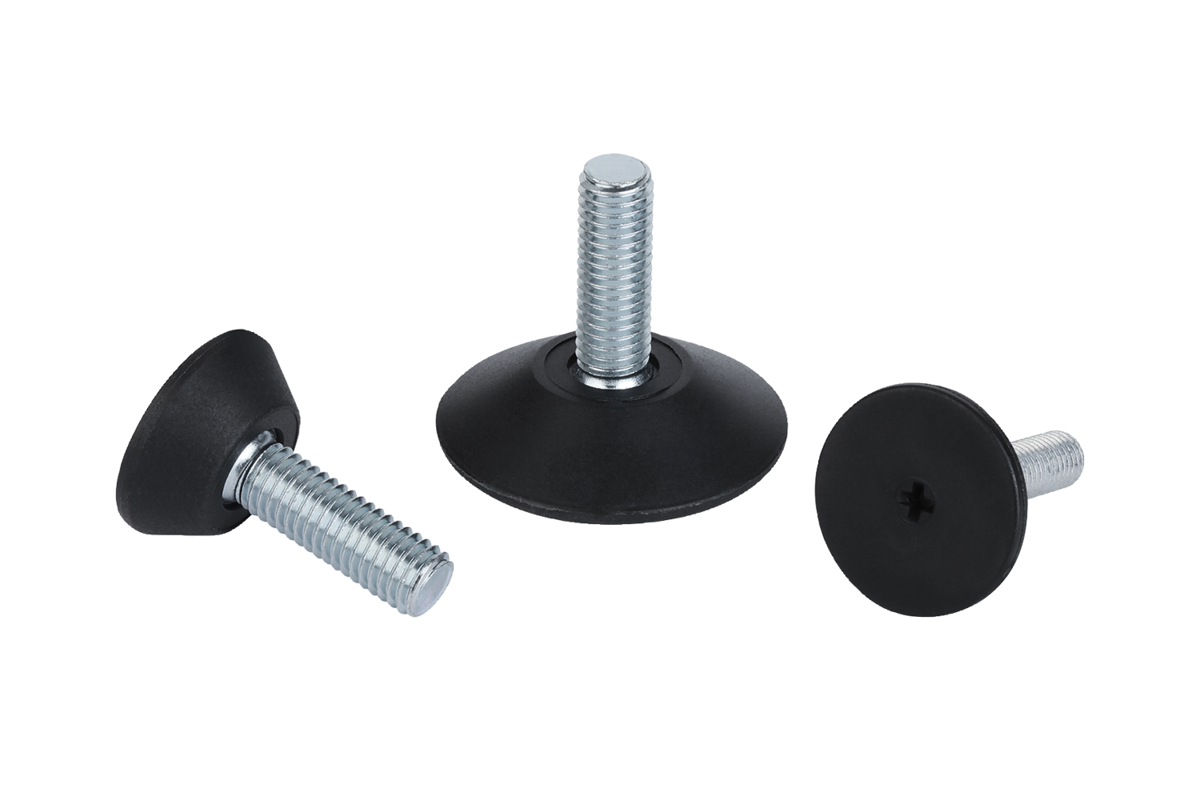

Levelling feet round

K0674

Levelling feet round

Products
- Swivel feet, levelling feet
  - Levelling feet round

Item description/product images

DescriptionMaterial:Polyamide.
Screw, steel.Version:Black.
Screw electro zinc-plated.Note:Levelling feet with cross slot in the base as assembly aid.
Rigid version.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0674 Levelling feet round

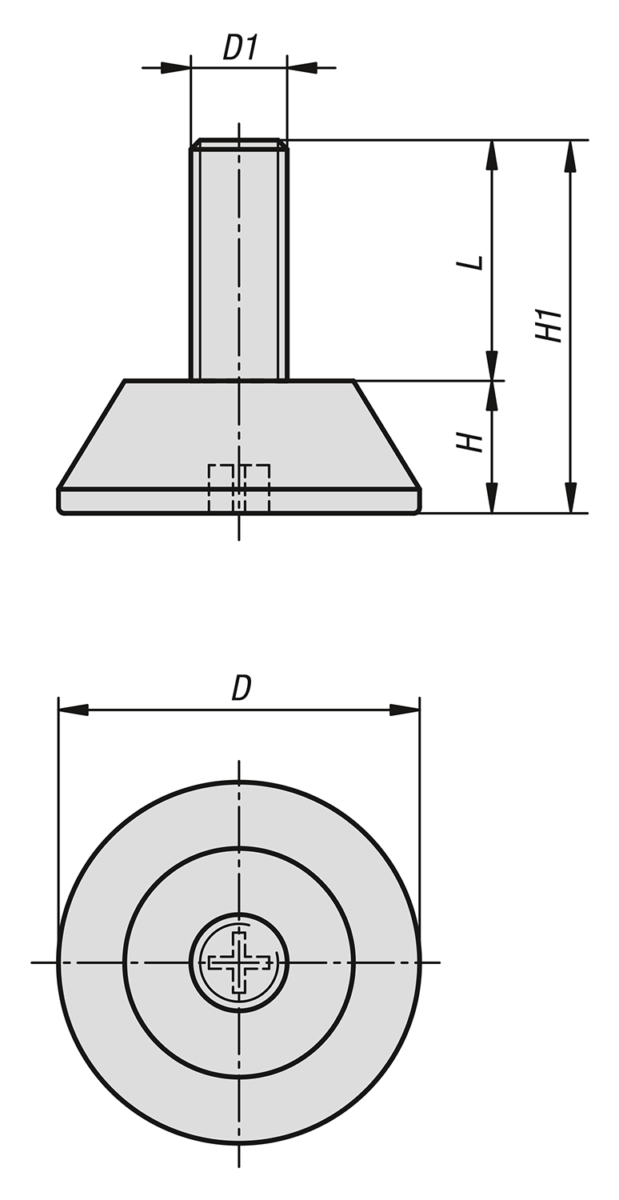

Drawings

Levelling feet round

Item selection/filter

Item No.	D	D1	H	H1	L	Load rating max. kN (static load only)	CAD	Acc.	Price	Order
K0674.3006X020	30	M6	11	31	20	3			0.71 $ (USD)
K0674.3006X030	30	M6	11	41	30	3			0.74 $ (USD)
K0674.3008X016	30	M8	11	27	16	3			0.78 $ (USD)
K0674.3008X020	30	M8	11	31	20	3			0.78 $ (USD)
K0674.3008X025	30	M8	11	36	25	3			0.79 $ (USD)
K0674.3008X030	30	M8	11	41	30	3			0.79 $ (USD)
K0674.3008X040	30	M8	11	51	40	3			0.85 $ (USD)
K0674.3010X025	30	M10	11	36	25	3			0.87 $ (USD)
K0674.3010X030	30	M10	11	41	30	3			0.95 $ (USD)
K0674.3010X035	30	M10	11	46	35	3			0.95 $ (USD)
K0674.4708X016	47	M8	11	27	16	4			0.88 $ (USD)
K0674.4708X020	47	M8	11	31	20	4			0.93 $ (USD)
K0674.4708X030	47	M8	11	41	30	4			0.93 $ (USD)
K0674.4708X040	47	M8	11	51	40	4			0.96 $ (USD)
K0674.4710X020	47	M10	11	31	20	4			1.15 $ (USD)
K0674.4710X030	47	M10	11	41	30	4			1.15 $ (USD)
K0674.4710X055	47	M10	11	66	55	4			1.46 $ (USD)
