DescriptionMaterial:Foot plate and threaded spindle stainless steel 1.4301 (AISI 304 equivalent).
Base and seal rubber (EPDM).Version:Foot plate, polished. Threaded spindle, bright. Rubber base black. Rubber seal black.Note:The levelling foot has an adjustment body which covers the part of the thread. An O-ring is inserted inside the body to prevent dirt from entering.
EPDM complies with the guidelines specified in the USDA documentation for rubber products.
The stainless steel levelling feet for sterile areas received the Equipment Acceptance Certificate of the USDA (US-Department of Agriculture).

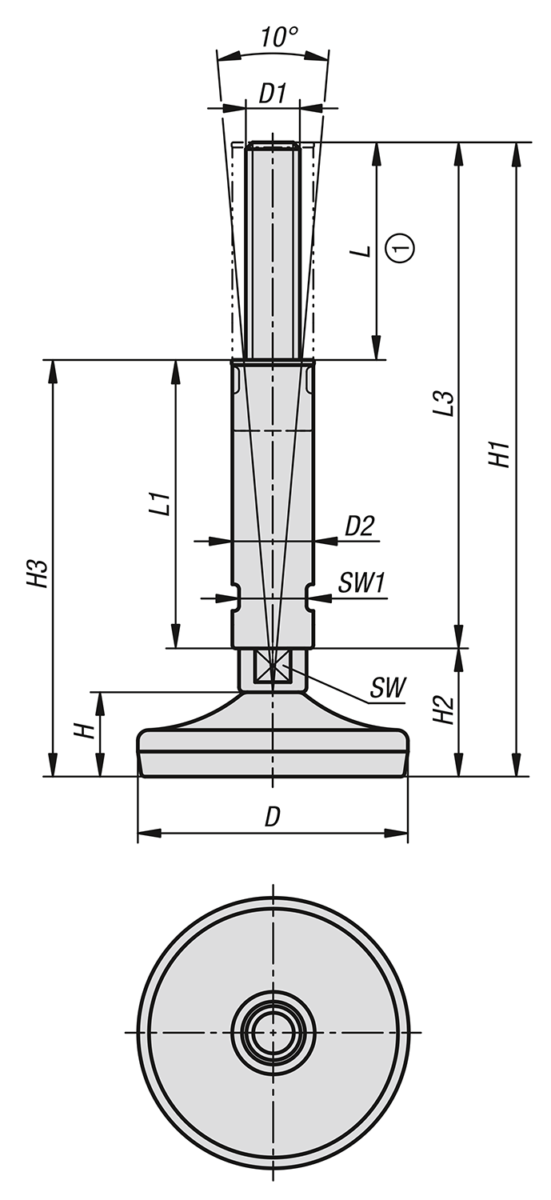

The load values specified in the table are based on a test series in which a static load was applied perpendicular to the plates through the center of the spindle. Radially acting forces such as those produced by vibrations or other shaking effects, affect the load rating and are not taken into account for the specified values.Drawing reference:
1) Adjustment range
Special features:
