Product groups

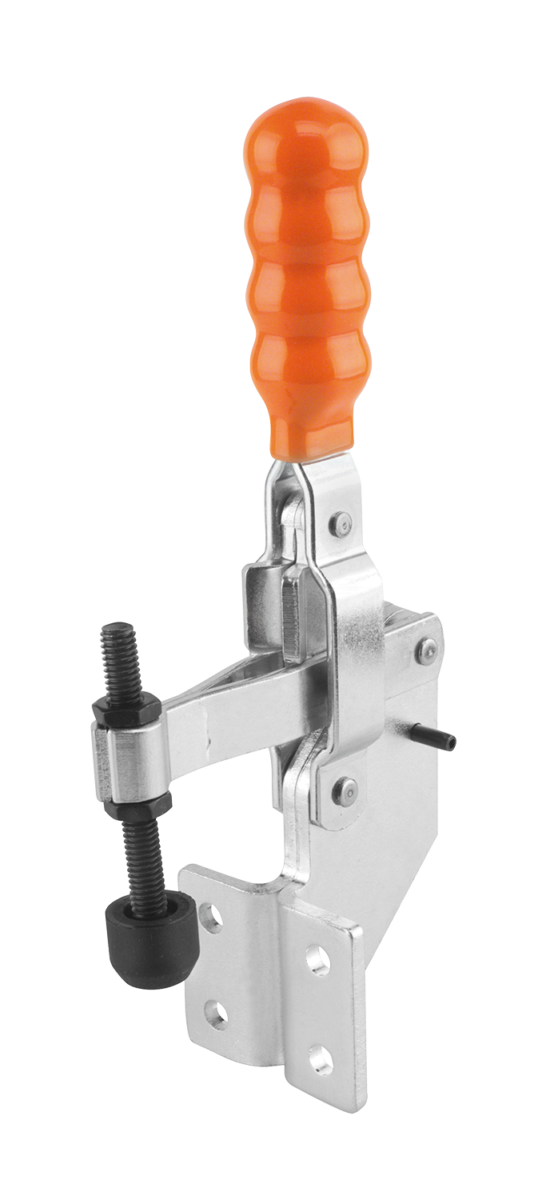

Toggle clamps vertical with angled foot and fixed clamping spindle
K0063

Toggle clamps vertical with angled foot and fixed clamping...

go back

Item description/product images

DescriptionMaterial:Steel.Version:Trivalent passivated.
Clamping spindle and nuts phosphated.
Plastic grip oil-resistant.
Note:The opening angle between the holding arm and the handle can be reduced or increased by repositioning or removing the stop pin.

A neoprene pressure pad is supplied with version K0063.0100.
Accessory:K0100
K0101
K0102
K0103
K0106
Drawing reference:
1) Position 1

Drawings

Toggle clamps vertical with angled foot and fixed clamping spindle

Overview of items (compressed)

Item selection/filter
Item No.Opening angle
of holding arm
position 1
Opening angle
of holding arm
stop pin removed
Opening angle
of handle
position 1
Opening angle
of handle
stop pin removed
CADAcc.PriceOrder
K0063.010080°190°60°100°K0100.16 on request
K0063.0200105°175°70°95°K0100.22 on request
K0063.0300105°160°65°90°K0100.28 on request
Item No.AA1A2A3BB1CC1DHLL1L2MHand
force
FH N
Retaining
force
F1 N
Clamping
force
F3 N
CADAcc.PriceOrder
K0063.010014297-17,528449,54,81226624,536M5x3580850650 on request
K0063.020019358-25416412,75,5170772744M6x5010016001150 on request
K0063.0300355181635518121,56,82351165851M8x6013030001150 on request
