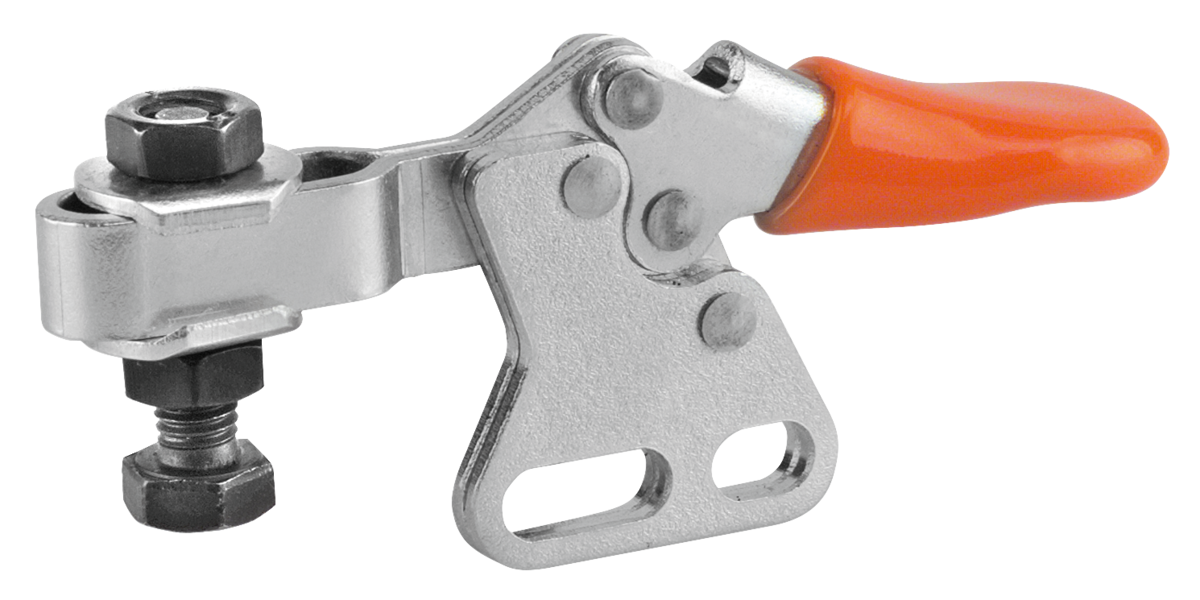

Toggle clamp mini, horizontal with straight foot and adjustable clamping spindle
 K0068

Toggle clamp mini, horizontal with straight foot and adjustable...

 go back

Item description/product images
DescriptionMaterial:Steel.Version:Trivalent passivated.
Clamping spindle and nuts phosphated.
Plastic grip oil-resistant.Accessory:K0101
K0102
K0103
K0106
K0107Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet K0068 Toggle clamp mini, horizontal with straight foot and adjustable clamping spindle 188 kB

Drawings

Toggle clamp mini, horizontal with straight foot and adjustable clamping spindle

Overview of items (compressed)

 Item selection/filter
Item No.

Opening
angle of
holding arm		Opening
angle of
handle		Hand
force
FH N		Retaining
force
F1 N		Retaining
force
F2 N		Clamping
force
F3 N		Clamping
force
F4 N		CADAcc.PriceOrder
K0068.005085°65°80250550170370 17.23 $ (USD)
Item No.

AA1A2A3B3CC1C2DHLL1MSS1CADAcc.PriceOrder
K0068.00501624,52,46,55,214744,2297027M5x203,21,5 17.23 $ (USD)
