Toggle clamps horizontal with flat foot and full holding arm
K0076

Toggle clamps horizontal with flat foot and full holding arm

go back

Item description/product images

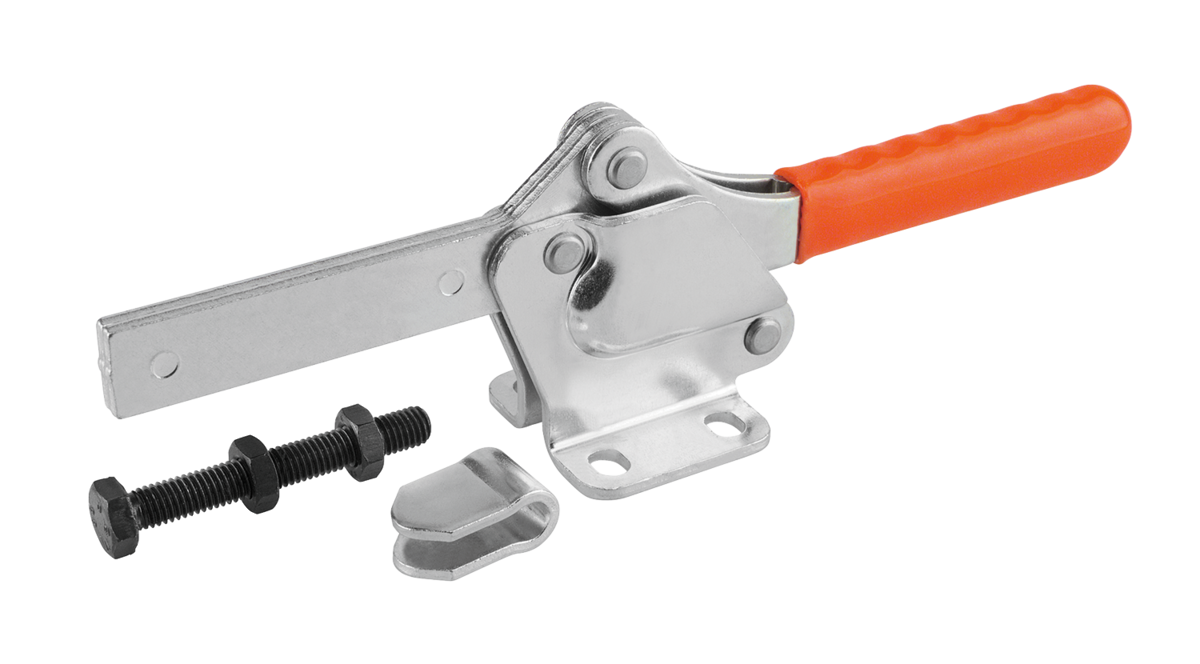

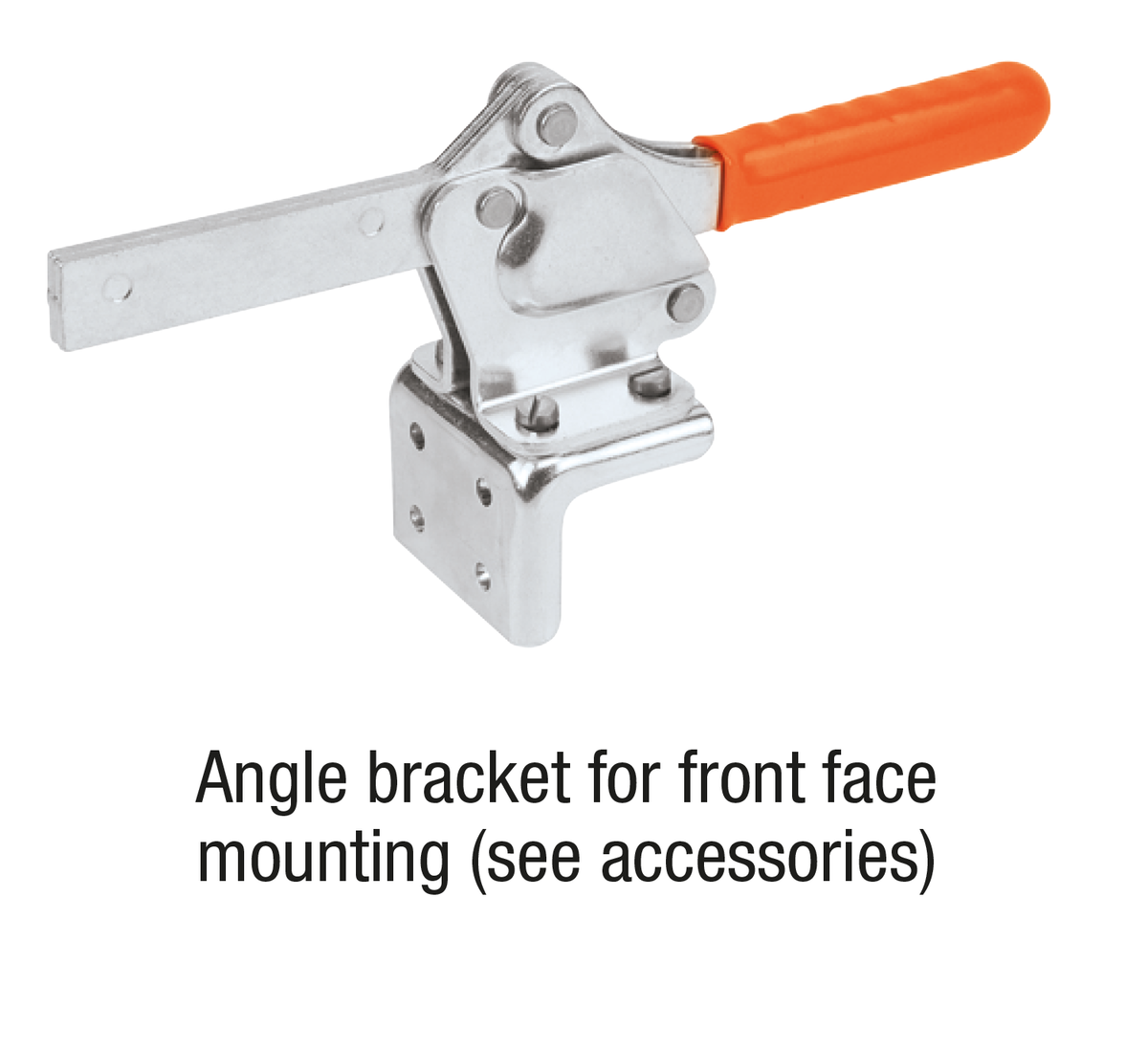

DescriptionMaterial:Steel.Version:Galvanized and chromated, plastic handle oil-resistantNote:spindle bracket weldable.Accessory:K0098
K0100
K0101
K0102
K0103
K0106
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0076 Toggle clamps horizontal with flat foot and full holding arm 223 kB

Drawings

Toggle clamps horizontal with flat foot and full holding arm

Overview of items (compressed)

Item selection/filter
Item No.

Opening angle
of holding arm
Opening
angle of
handle
Hand
force
FH N
Retaining
force
F1 N
Holding
force
F2 N
Clamping
force
F3 N
Clamping
force
F4 N
CADAcc.PriceOrder
K0076.025095°80°200150035008001950K0100.28 on request
K0076.035090°75°2502500550011503100K0100.30 on request
K0076.045090°75°2503000650011503100K0100.34 on request
Item No.

AA1A2BB1B2B3B4CC1C3DD1EHLL1Clamping
spindle
Item No.
Angle Bracket
CADAcc.PriceOrder
K0076.0250264283247236273417,517,56,68,3246722682M8x60K0098.04 on request
K0076.035041,259943,76030839,74524228,710,33091272110M10x80K0098.06 on request
K0076.045041,2671342,8683810-5927268,712,332110310130M12x100K0098.06 on request
