Product groups

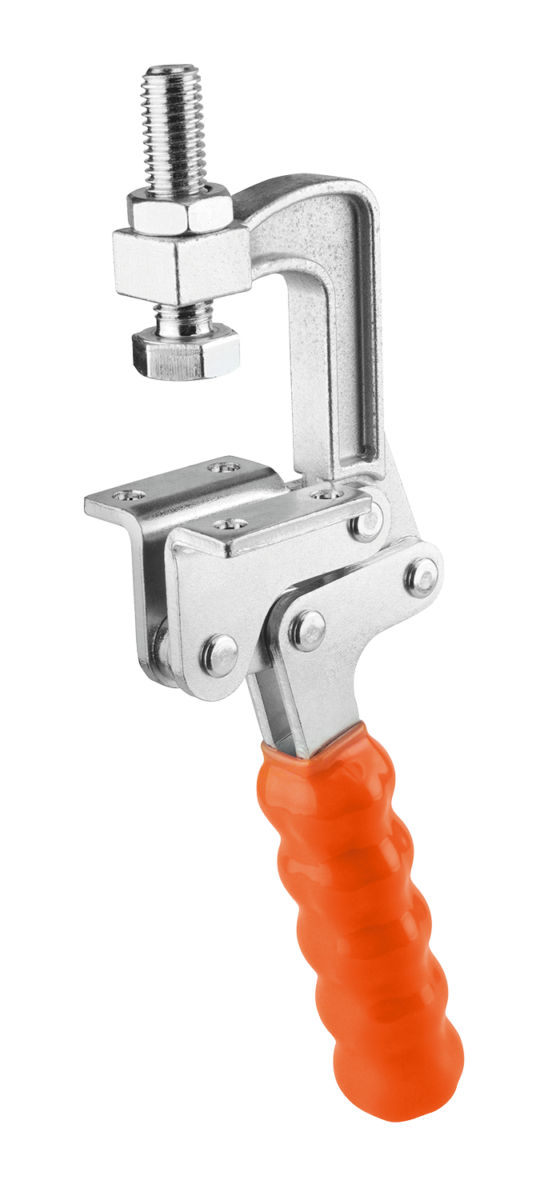

Toggle clamps pivot jaw
K0078

Toggle clamps pivot jaw

go back

Item description/product images

DescriptionMaterial:Steel, clamping bow in cast steelVersion:Trivalent passivated.
Plastic grip oil-resistant.
Note:The pivot jaw toggle clamp is ideal for applications in which there is little mounting space at the sides. In this case the clamp plate is secured from below to the work surface.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0078 Toggle clamps pivot jaw 162 kB

Drawings

Toggle clamps pivot jaw

Item selection/filter

Item No.

Opening angle
of holding arm
Opening
angle of
handle
Hand
force
FH N
Retaining
force
F1 N
Clamping
force
F3 N
CADAcc.PriceOrder
K0078.036090°50°25036001150K0100.30on request
