Toggle clamps latch vertical with catch plate
K0082

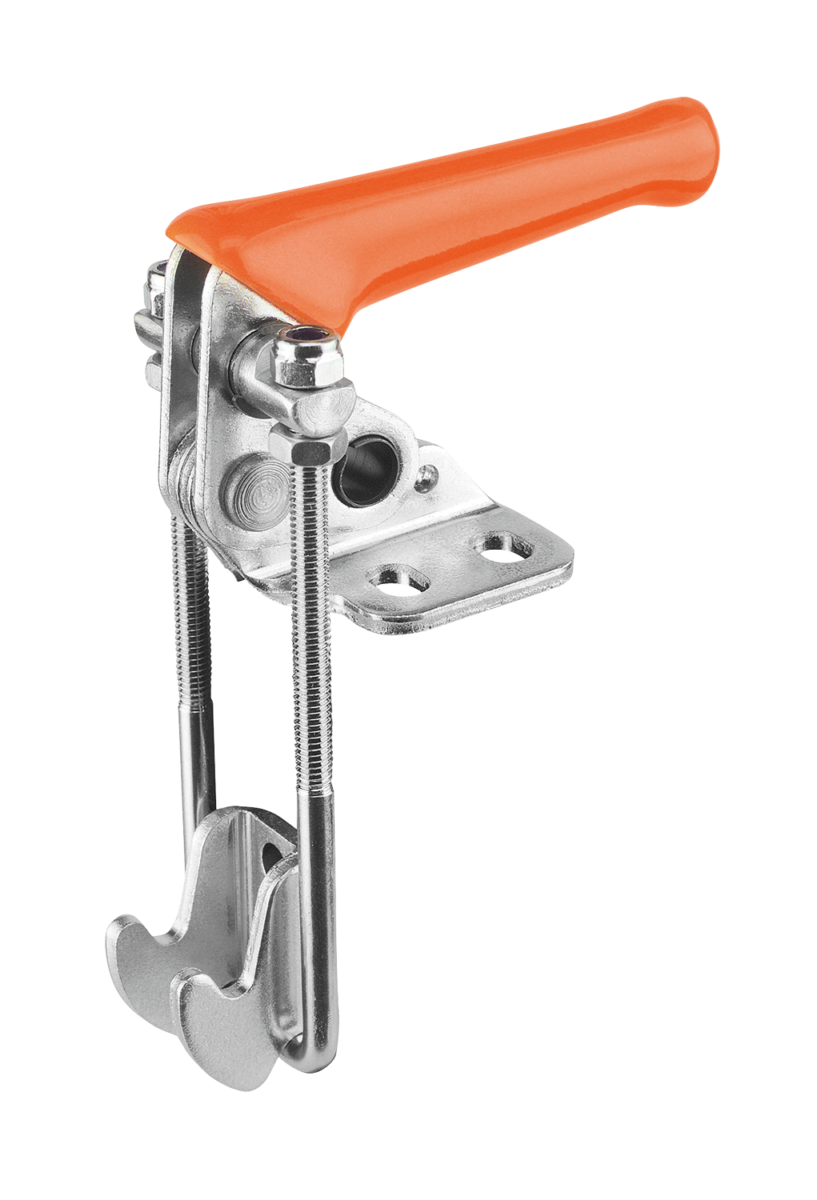

Toggle clamps latch vertical with catch plate

go back

Item description/product images

DescriptionMaterial:Steel or stainless steel.Version:Trivalent passivated.
Stainless steel bright.
Plastic grip oil-resistant.
Note:Vertical latch toggle clamps are especially suitable for quickly closing and locking covers and hatches.
The travel can be set by altering the hasp length.

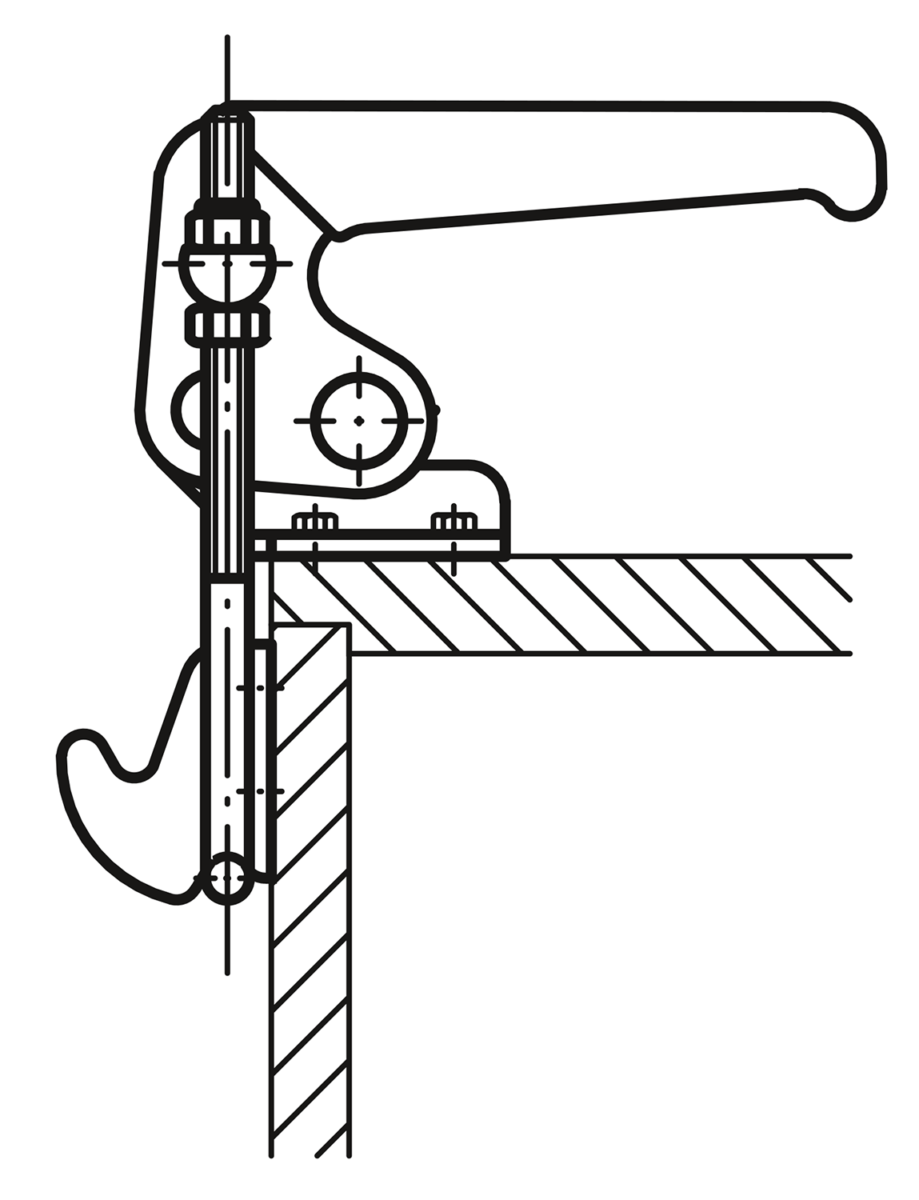

Drawing reference:
1) edge and latch bracket mounted flush
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0082 Toggle clamps latch vertical with catch plate 243 kB

Drawings

Toggle clamps latch vertical with catch plate

Overview of items (compressed)

Item selection/filter
Order No.Main
material
Opening
angle of
handle
Hand
force
FH N
Retaining
force
F2 N
Traction
force
F1 N
Travel
path
L1 min.
Travel
path
L1 max.
Clamping
travel
L2
CADAcc.PriceOrder
K0082.0140steel145°1002000180012522 43.65 $ (USD)
K0082.0250steel145°1504000270012834 64.44 $ (USD)
K0082.0450steel145°2007000450014045 107.97 $ (USD)
K0082.0140Nstainless steel145°1002000180012522 56.49 $ (USD)
K0082.0250Nstainless steel145°1504000270012834 79.37 $ (USD)
K0082.0450Nstainless steel145°2007000450014045 150.37 $ (USD)
Item No.

Main
material
AA1A2A3A4BB1B2B3DD1L3HSCADAcc.PriceOrder
K0082.0140steel26134,51124362419165,2476422,5 43.65 $ (USD)
K0082.0250steel351961432483326216,56115643 64.44 $ (USD)
K0082.0450steel513281940644536288,58152854 107.97 $ (USD)
K0082.0140Nstainless steel26134,51124362419165,2476422,5 56.49 $ (USD)
K0082.0250Nstainless steel351961432483326216,56115643 79.37 $ (USD)
K0082.0450Nstainless steel513281940644536288,58152854 150.37 $ (USD)
