Thrust screws with thrust pad

K0689

Thrust screws with thrust pad

Products
- Toggle Clamps
  - Accessories
    - Thrust screws with thrust pad

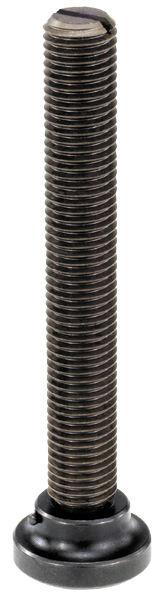

Item description/product images

DescriptionMaterial:Screw and thrust pad steel.Version:Screw black.
Thrust pad black oxidized.
Screw pin and thrust pad case-hardened.Drawing reference:

1) retaining pin

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0689 Thrust screws with thrust pad

Drawings

Thrust screws with thrust pad

Item selection/filter

Item No.	L	H	D	D1	S	F max. kN	CAD	Acc.	Price	Order
K0689.06X52	52	7	M6	12	2,5	1			8.55 $ (USD)
K0689.08X63	63	9	M8	16	4	2,3			9.09 $ (USD)
K0689.10X84	84	11	M10	20	5	3,5			10.71 $ (USD)
K0689.12X104	104	13	M12	25	6	4,6			13.84 $ (USD)
K0689.14X105	105	14	M14	28	6	5			22.28 $ (USD)
K0689.16X130	130	15	M16	32	7	6			22.28 $ (USD)
