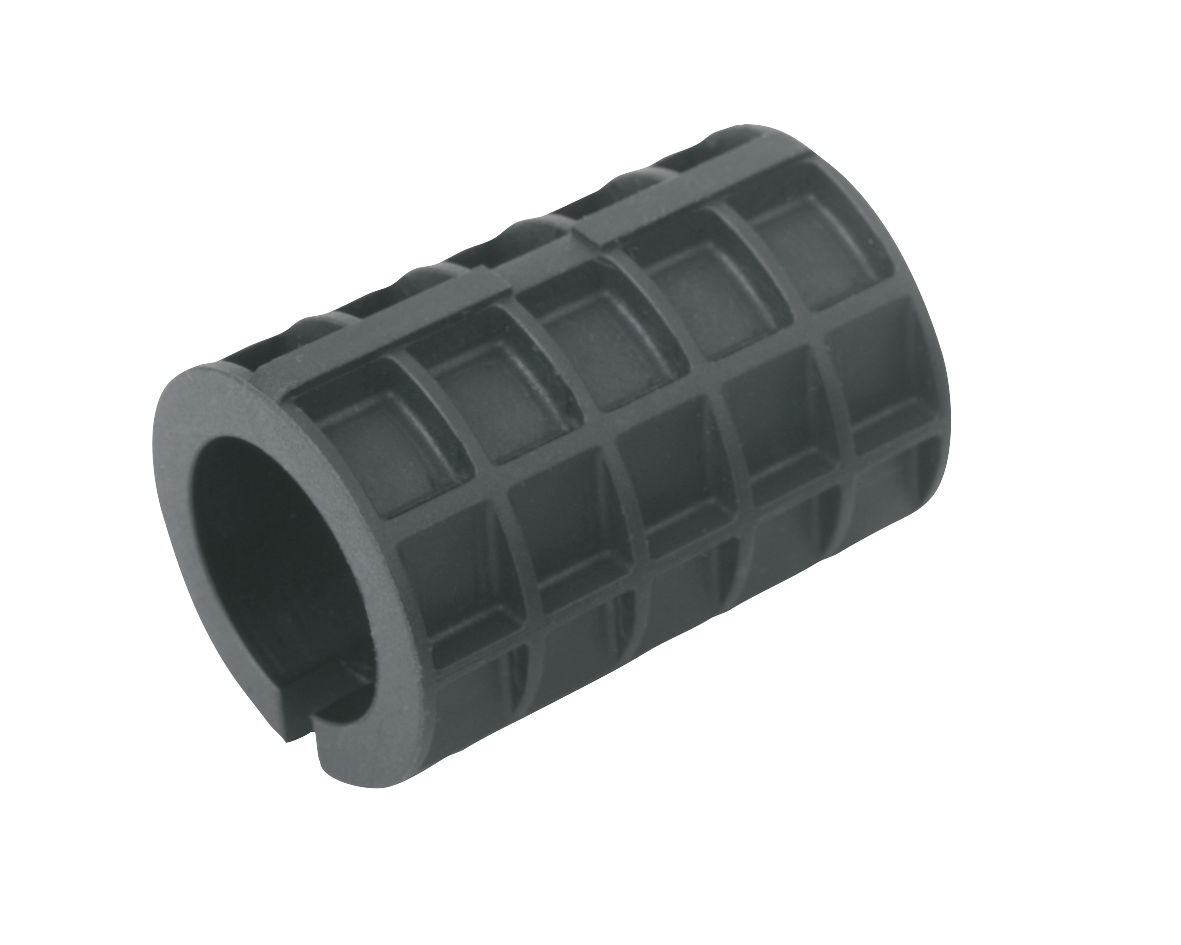

Reducing bushinges for round tubes

K0492_R

Reducing bushinges for round tubes

Products
- Tube Connectors
  - Reducer bodys round
    - Reducing bushinges for round tubes

Item description/product images

DescriptionMaterial:Thermoplastic.Version:black.Note:Reducer bodys are for clamping smaller tubes.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0492_R Reducer bodys for round tubes

Drawings

Reducing bushinges for round tubes

Item selection/filter

Order No.	Version 2	A	B	C	D	E	L	CAD	Acc.	Price	Order
K0492.01812	for round tubes	12,25	18	2,5	11,9	2,4	30			1.98 $ (USD)
K0492.01814	for round tubes	14,25	18	2,5	11,9	2,4	30			1.98 $ (USD)
K0492.01815	for round tubes	15,25	18	2,5	11,9	2,4	30			1.98 $ (USD)
K0492.01816	for round tubes	16,25	18	2,5	11,9	2,4	30			1.98 $ (USD)
K0492.03020	for round tubes	20,25	30	3,5	18,9	3,4	45			2.93 $ (USD)
K0492.03025	for round tubes	25,25	30	3,5	18,9	3,4	45			2.93 $ (USD)
