Product groups
Round and square tubes
K0493

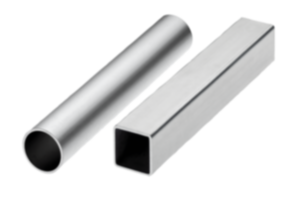

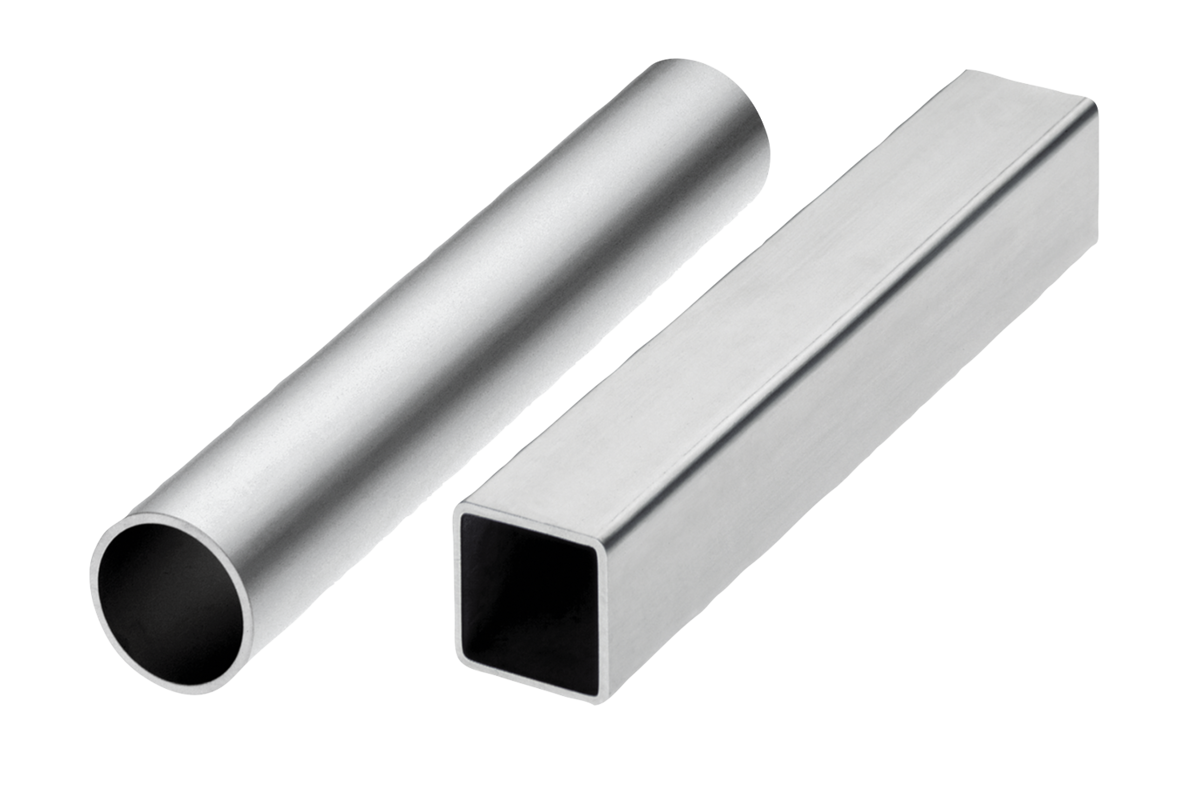

Round and square tubes

go back

Item description/product images

Show/filter all items
DescriptionMaterial:Steel 1.0037.
Aluminum EN AW-6060.
Version:Steel electro zinc-plated.
Aluminum clear anodized.
Note:The machining tolerances of these round and square tubes are specially suited to the tube clamping system.

* solid bar.
On request:- stainless steel tubes
- customer specific lengths
RoHS
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0493 Round and square tubes 199 kB

Drawings (total overview)

Round and square tubes

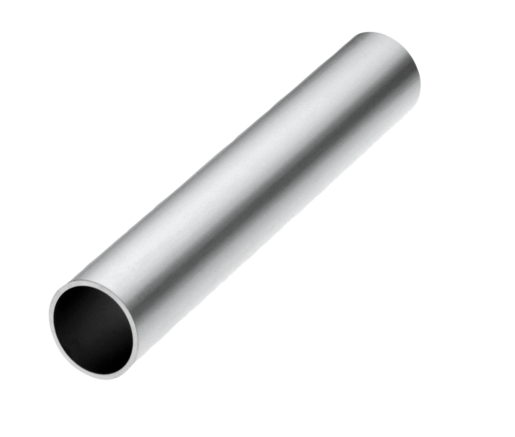

round tubes

More information

Drawings

round tubes

Item selection/filter

Item No.Version

DescriptionD1D2LCADAcc.PriceOrder
K0493.0112X500steelRound tubeØ12 x 1,512 ±0,19500on request
K0493.0112X1000steelRound tubeØ12 x 1,512 ±0,191000on request
K0493.0112X2000steelRound tubeØ12 x 1,512 ±0,192000on request
K0493.0114X500steelRound tubeØ14 x 1,514 ±0,111500on request
K0493.0114X1000steelRound tubeØ14 x 1,514 ±0,1111000on request
K0493.0114X2000steelRound tubeØ14 x 1,514 ±0,1-2000on request
K0493.0115X500steelRound tubeØ15 x 1,515 ±0,112500on request
K0493.0115X1000steelRound tubeØ15 x 1,515 ±0,1121000on request
K0493.0115X2000steelRound tubeØ15 x 1,515 ±0,1122000on request
K0493.0116X500steelRound tubeØ16 x 1,516 ±0,113500on request
K0493.0116X1000steelRound tubeØ16 x 1,516 ±0,1131000on request
K0493.0116X2000steelRound tubeØ16 x 1,516 ±0,1132000on request
K0493.0118X500steelRound tubeØ18 x 1,518 ±0,115500on request
K0493.0118X1000steelRound tubeØ18 x 1,518 ±0,1151000on request
K0493.0118X2000steelRound tubeØ18 x 1,518 ±0,1152000on request
K0493.0120X500steelRound tubeØ20 x 220 ±0,116500on request
K0493.0120X1000steelRound tubeØ20 x 220 ±0,1161000on request
K0493.0120X2000steelRound tubeØ20 x 220 ±0,1162000on request
K0493.0125X500steelRound tubeØ25 x 225 ±0,121500on request
K0493.0125X1000steelRound tubeØ25 x 225 ±0,1211000on request
K0493.0125X2000steelRound tubeØ25 x 225 ±0,1212000on request
K0493.0130X500steelRound tubeØ30 x 230 ±0,126500on request
K0493.0130X1000steelRound tubeØ30 x 230 ±0,1261000on request
K0493.0130X2000steelRound tubeØ30 x 230 ±0,1262000on request
K0493.0140X500steelRound tubeØ40 x 440 ±0,1532500on request
K0493.0140X1000steelRound tubeØ40 x 440 ±0,15321000on request
K0493.0140X2000steelRound tubeØ40 x 440 ±0,15322000on request
K0493.0150X500steelRound tubeØ50 x 450 ±0,242500on request
K0493.0150X1000steelRound tubeØ50 x 450 ±0,2421000on request
K0493.0150X2000steelRound tubeØ50 x 450 ±0,2422000on request
K0493.0220X500aluminumRound tubeØ20 x 32014500on request
K0493.0220X1000aluminumRound tubeØ20 x 320141000on request
K0493.0220X2000aluminumRound tubeØ20 x 320142000on request
K0493.0230X500aluminumRound tubeØ30 x 230 ±0,126500on request
K0493.0230X1000aluminumRound tubeØ30 x 230 ±0,1261000on request
K0493.0230X2000aluminumRound tubeØ30 x 230 ±0,1262000on request
K0493.0240X500aluminumRound tubeØ40 x 340 ±0,1534500on request
K0493.0240X1000aluminumRound tubeØ40 x 340 ±0,15341000on request
K0493.0240X2000aluminumRound tubeØ40 x 340 ±0,15342000on request
K0493.0250X500aluminumRound tubeØ50 x 350 ±0,244500on request
K0493.0250X1000aluminumRound tubeØ50 x 350 ±0,2441000on request
K0493.0250X2000aluminumRound tubeØ50 x 350 ±0,2442000on request

square tubes

More information

Drawings

square tubes

Item selection/filter

Item No.Version

DescriptionD1D2LCADAcc.PriceOrder
K0493.4120X500steelSquare tube20 x 20 x 120 ±0,318500on request
K0493.4120X1000steelSquare tube20 x 20 x 120 ±0,3181000on request
K0493.4120X2000steelSquare tube20 x 20 x 120 ±0,3182000on request
K0493.4125X500steelSquare tube25 x 25 x 1,525 ±0,322500on request
K0493.4125X1000steelSquare tube25 x 25 x 1,525 ±0,3221000on request
K0493.4125X2000steelSquare tube25 x 25 x 1,525 ±0,3222000on request
K0493.4130X500steelSquare tube30 x 30 x 230 ±0,326500on request
K0493.4130X1000steelSquare tube30 x 30 x 230 ±0,3261000on request
K0493.4130X2000steelSquare tube30 x 30 x 230 ±0,3262000on request
K0493.4140X500steelSquare tube40 x 40 x 340 ±0,434500on request
K0493.4140X1000steelSquare tube40 x 40 x 340 ±0,4341000on request
K0493.4140X2000steelSquare tube40 x 40 x 340 ±0,4342000on request
K0493.4210X500aluminumSquare tube10 x 1010*-500on request
K0493.4210X1000aluminumSquare tube10 x 1010*-1000on request
K0493.4210X2000aluminumSquare tube10 x 1010*-2000on request
K0493.4220X500aluminumSquare tube20 x 20 x 1,520 ±0,217500on request
K0493.4220X1000aluminumSquare tube20 x 20 x 1,520 ±0,2171000on request
K0493.4220X2000aluminumSquare tube20 x 20 x 1,520 ±0,2172000on request
K0493.4230X500aluminumSquare tube30 x 30 x 230 ±0,226500on request
K0493.4230X1000aluminumSquare tube30 x 30 x 230 ±0,2261000on request
K0493.4230X2000aluminumSquare tube30 x 30 x 230 ±0,2262000on request
K0493.4240X500aluminumSquare tube40 x 40 x 440 ±0,332500on request
K0493.4240X1000aluminumSquare tube40 x 40 x 440 ±0,3321000on request
K0493.4240X2000aluminumSquare tube40 x 40 x 440 ±0,3322000on request
