Item description/product images

DescriptionMaterial:Steel 1.0037.
Aluminum EN AW-6060.
Version:Steel electro zinc-plated.
Aluminum clear anodized.
Note:The production tolerances for square tubes are adapted to the tube clamping system.

* Solid materials.
On request:- stainless steel tubes
- customer specific lengths
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0493_V Square tubes 130 kB

Drawings

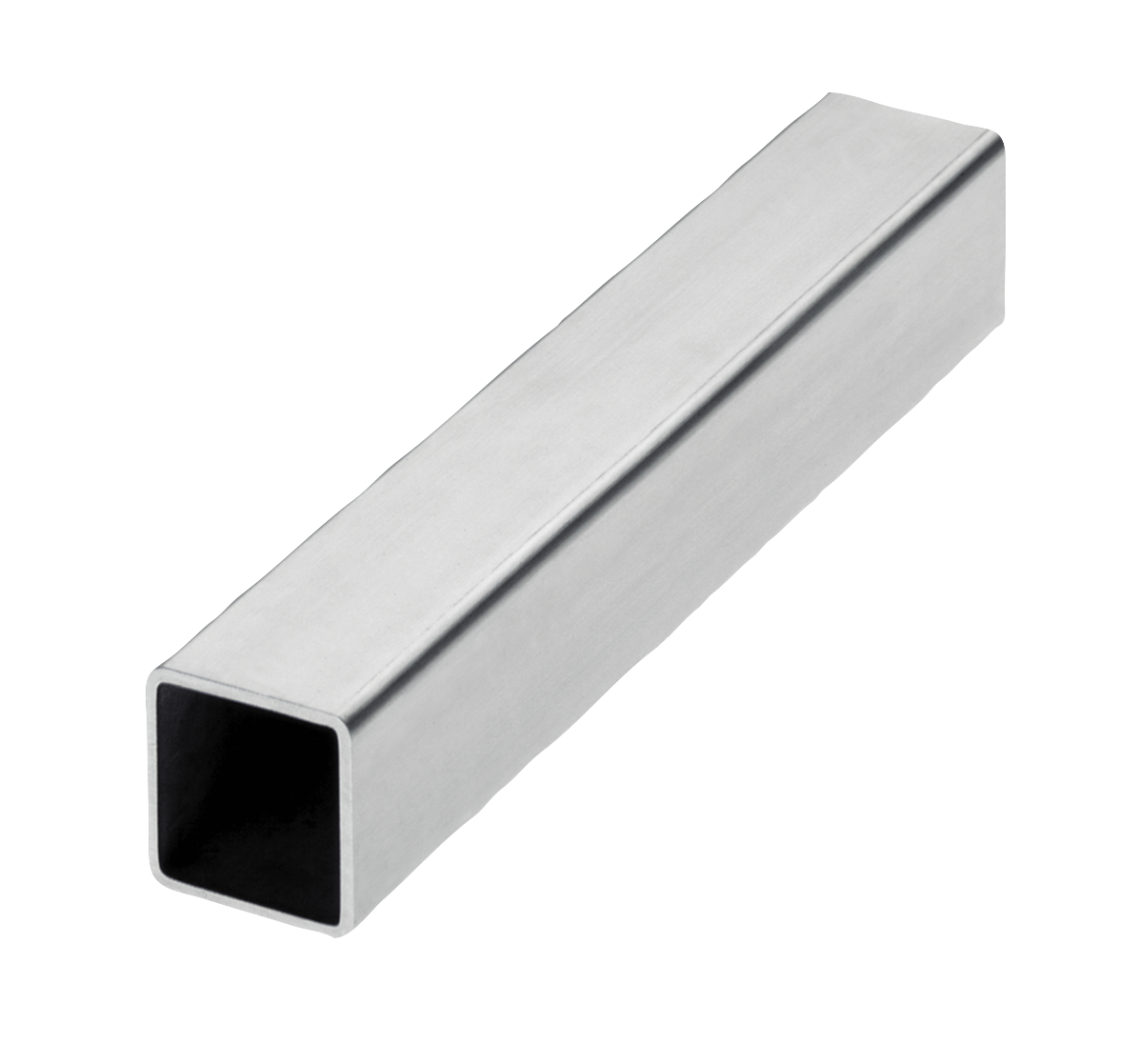

square tubes

Item selection/filter

Item No.MaterialVersion

DescriptionD1D2LCADAcc.PriceOrder
K0493.4120X500steelSquare Tube20 x 20 x 120 ±0,318500 on request
K0493.4120X1000steelSquare Tube20 x 20 x 120 ±0,3181000 on request
K0493.4120X2000steelSquare Tube20 x 20 x 120 ±0,3182000 on request
K0493.4125X500steelSquare Tube25 x 25 x 1,525 ±0,322500on request
K0493.4125X1000steelSquare Tube25 x 25 x 1,525 ±0,3221000on request
K0493.4125X2000steelSquare Tube25 x 25 x 1,525 ±0,3222000on request
K0493.4130X500steelSquare Tube30 x 30 x 230 ±0,326500 on request
K0493.4130X1000steelSquare Tube30 x 30 x 230 ±0,3261000 on request
K0493.4130X2000steelSquare Tube30 x 30 x 230 ±0,3262000 on request
K0493.4140X500steelSquare Tube40 x 40 x 340 ±0,434500 on request
K0493.4140X1000steelSquare Tube40 x 40 x 340 ±0,4341000 on request
K0493.4140X2000steelSquare Tube40 x 40 x 340 ±0,4342000 on request
K0493.4210X500aluminumSquare Tube10 x 1010*-500 on request
K0493.4210X1000aluminumSquare Tube10 x 1010*-1000 on request
K0493.4210X2000aluminumSquare Tube10 x 1010*-2000 on request
K0493.4220X500aluminumSquare Tube20 x 20 x 1,520 ±0,217500 on request
K0493.4220X1000aluminumSquare Tube20 x 20 x 1,520 ±0,2171000 on request
K0493.4220X2000aluminumSquare Tube20 x 20 x 1,520 ±0,2172000 on request
K0493.4230X500aluminumSquare Tube30 x 30 x 230 ±0,226500 on request
K0493.4230X1000aluminumSquare Tube30 x 30 x 230 ±0,2261000 on request
K0493.4230X2000aluminumSquare Tube30 x 30 x 230 ±0,2262000 on request
K0493.4240X500aluminumSquare Tube40 x 40 x 440 ±0,332500 on request
K0493.4240X1000aluminumSquare Tube40 x 40 x 440 ±0,3321000 on request
K0493.4240X2000aluminumSquare Tube40 x 40 x 440 ±0,3322000 on request
