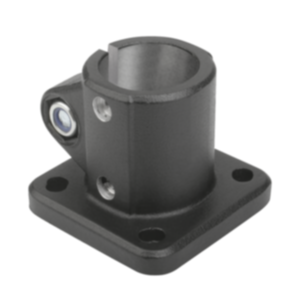

K0499

Linear actuator connector clamps base

go back

Products
- Tube Connectors
  - Linear actuator connector clamps base

Item description/product images

DescriptionMaterial:Cast aluminum.
DIN 7984 screws and DIN 985 nuts, steel.Version:Black powder-coated.
Screws and nuts electro zinc-plated.On request:Adjustable handles for tightening.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0499 Linear actuator connector clamps base

251 kB

Drawings

Item selection/filter

Order No.	hole arrangement	Type E	B	C	D	L	M1	M2	M3	M4	V1	Price
K0499.18	1	18	42	42	5,5	37	28	28	30	30	M6x20	44.69 $ (USD)
K0499.30	2	30	60	60	6,5	50	40	42	42	45	M8x25	38.00 $ (USD)
K0499.40	1	40	90	90	8,5	70	60	60	64	64	M10x30	65.09 $ (USD)
K0499.50	1	50	105	105	10,5	85	74	74	80	80	M10x35	72.31 $ (USD)
