Angle sets Type B

go back

Products
- Additional Products
  - Tube connectors, profile connectors
    - Angle sets Type B

Item description/product images

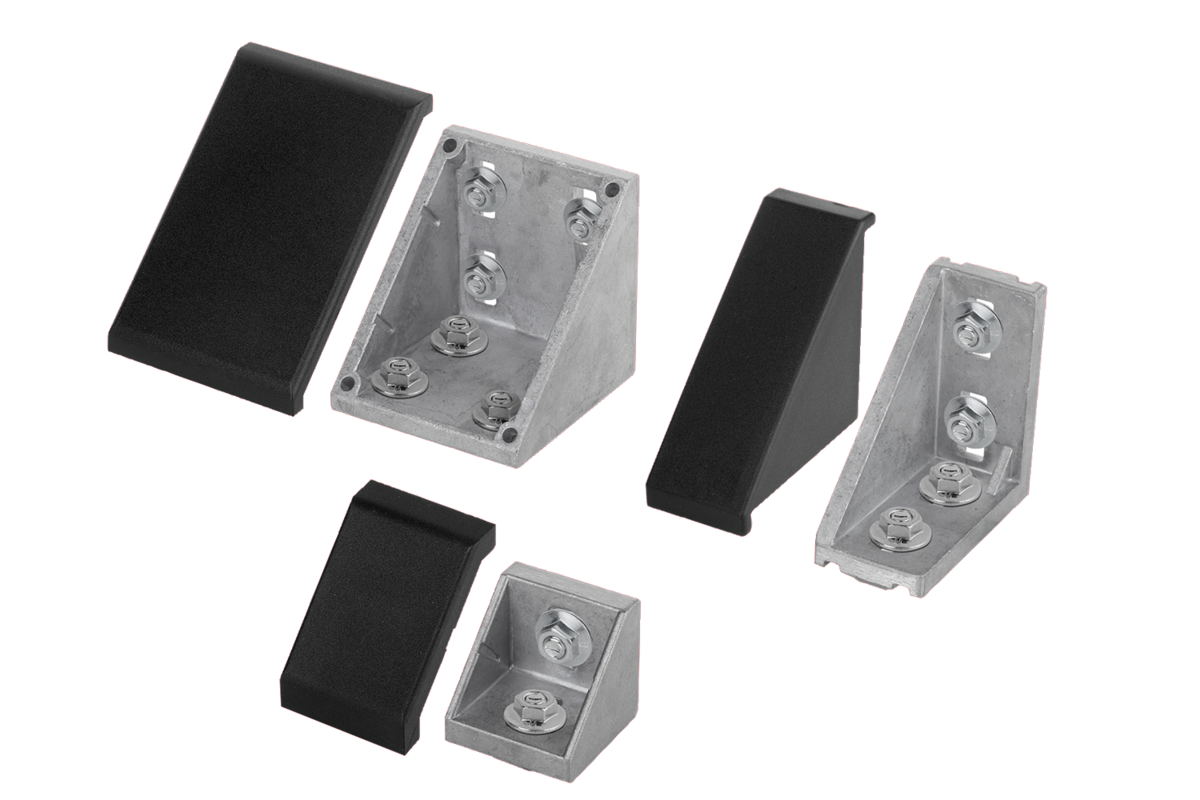

DescriptionMaterial:Angle die-cast aluminum.

Screws and slot nuts steel.
End cap polyamide, fiberglass reinforced.Version:Angle bright.
Screws and slot nuts electro zinc-plated.
End cap black.Note:Suitable for reinforcing profile constructions and for frictional connection of profiles with each other without machining. Can also be used as fastening element (e.g. bracket) for any components.
The angles have centering lugs for accurate and twist-proof mounting. The centering lugs can be removed if necessary by breaking off i.e. for mounting plates. The open side can be closed off with the end cap.

DownloadHere is all the information as a PDF datasheet:

Datasheet K1046 Angle sets Type B

241 kB

Drawings

Item selection/filter

Item No.	Type	Slot width	Version	A	A1	A2	A3	A4	A5	B	B1	D	H	H1	L	N	T	Price
