Product groups
Joints with clamping lever

Joints with clamping lever

go back

Item description/product images

DescriptionMaterial:Joint die-cast zinc.
Fastenings die-cast zinc.
Spacer rings stainless steel.
Tapped bushings and countersunk screws steel.
Handle die-cast zinc DIN EN 12844. Metal parts stainless steel 1.4305 (AISI 303 equivalent).
Version:Joint painted aluminum tone.
Fasteners electro zinc-plated.
Spacer rings bright.
Tapped bushings and countersunk screws electro zinc-plated.
Handle powder-coated. Steel parts bright stainless steel.

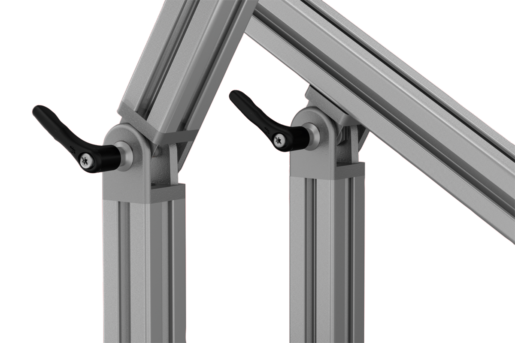

Note:Joints for connecting two profiles at any angle.
The adjustment range is 0° to 180°. The joint can also be used as a heavy hinge.

When the spacer rings are inserted, the joint can move freely. When these are removed, the joint can be used as a rigid angle element. The joints are particularly suitable for use as adjustable brackets, swivel arms or similar applications.
Special features:
RoHSStainless steel
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1051_MK Joints with clamping lever 251 kB


Joints with clamping lever

Item selection/filter

Order No.TypeBN=Slot widthStyle


K1051.1063030I6C22,5-30316,445307 37.87 $ (USD)
K1051.1084040I8C30-40318,460409 39.55 $ (USD)
K1051.2084080I8D504040318,4100809 84.80 $ (USD)
K1051.1104545B10C30-4542,58,560458 43.33 $ (USD)
K1051.2104590B10D50454542,58,5100909 86.50 $ (USD)
