Joints without clamping lever
K1051_OK

Joints without clamping lever

go back

Item description/product images

DescriptionMaterial:Joint die-cast zinc.
Fasteners die-cast zinc.
Spacer rings stainless steel.
Tapped bushing and countersunk screws steel.
Version:Joint painted aluminum tone.
Fasteners electro zinc-plated.
Spacer rings bright.
Tapped bushings and countersunk screws electro zinc-plated.

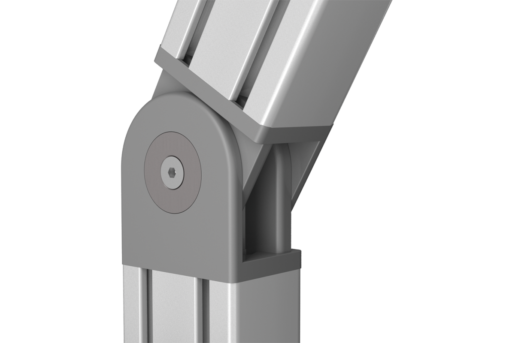

Note:Joints for connecting two profiles at any angle.
The adjustment range is 0° to 180°. The joint can also be used as a heavy hinge.

When the spacer rings are inserted, the joint can move freely. When these are removed, the joint can be used as a rigid angle element. The joints are particularly suitable for use as adjustable brackets, swivel arms or similar applications.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1051_OK Joints without clamping lever 243 kB

Drawings

Joints without clamping lever

Item selection/filter

Order No.TypeSlot
width
Style

AA1BD

HLTCADAcc.PriceOrder
K1051.063030I6A22,5-306,445307 31.49 $ (USD)
K1051.084040I8A30-408,460409 24.03 $ (USD)
K1051.084080I8B5040408,4100809 73.65 $ (USD)
K1051.083030B8A22,5-308,345307 37.89 $ (USD)
K1051.104545B10A30-458,560458 33.65 $ (USD)
K1051.104590B10B5045458,5100909 73.65 $ (USD)
