End caps Type B and Type I

K1053

End caps Type B and Type I

Products
- Tube Connectors
  - End caps Type B and Type I

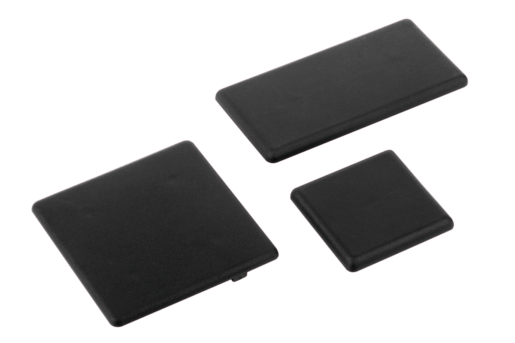

Item description/product images

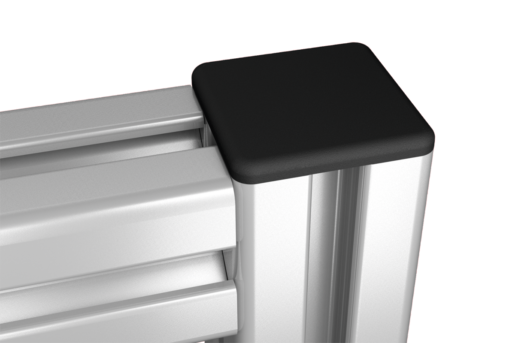

DescriptionMaterial:Polyamide fiberglass reinforced.Version:black.Note:Round edged covers with rotation lock for covering the profile ends. Prevents dirt from penetrating and avoids injuries. Simple clip-on mounting.Special features:

RoHS

Stainless steel

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1053 End caps Type B and Type I

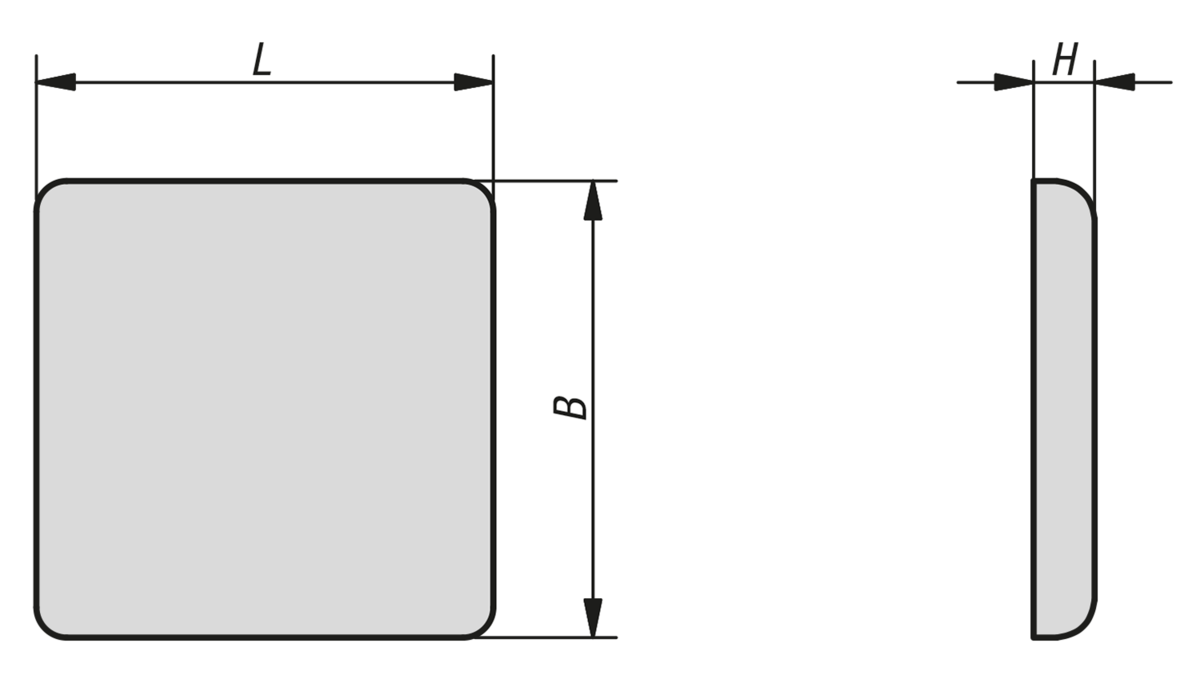

Drawings

End caps Type B and Type I

Item selection/filter

Order No.	Type	Slot width	Profile	B	L	H	CAD	Acc.	Price	Order
K1053.06303011	I	6	30x30	30	30	3			1.01 $ (USD)
K1053.06306011	I	6	30x60	30	60	3			1.39 $ (USD)
K1053.06606011	I	6	60x60	60	60	3			2.38 $ (USD)
K1053.08164011	I	8	16x40	16	40	4			1.57 $ (USD)
K1053.08404011	I	8	40x40	40	40	4			0.82 $ (USD)
K1053.08408011	I	8	40x80	40	80	4			1.18 $ (USD)
K1053.08808011	I	8	80x80	80	80	4			2.34 $ (USD)
K1053.08303021	B	8	30x30	30	30	4			1.14 $ (USD)
K1053.08306021	B	8	30x60	30	60	4			1.71 $ (USD)
K1053.10404021	B	10	40x40	40	40	4			0.78 $ (USD)
K1053.10408021	B	10	40x80	40	80	4			1.52 $ (USD)
K1053.10454521	B	10	45x45	45	45	4			0.90 $ (USD)
K1053.10456021	B	10	45x60	45	60	4			1.52 $ (USD)
K1053.10459021	B	10	45x90	45	90	4			1.71 $ (USD)
K1053.10909021	B	10	90x90	90	90	4			3.92 $ (USD)
