Foot plates Type B and Type I

go back

Products
- Tube Connectors
  - Foot plates Type B and Type I

Item description/product images

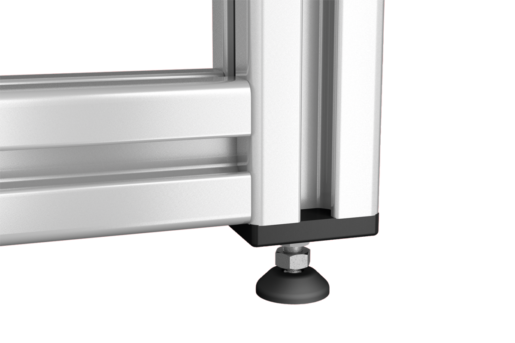

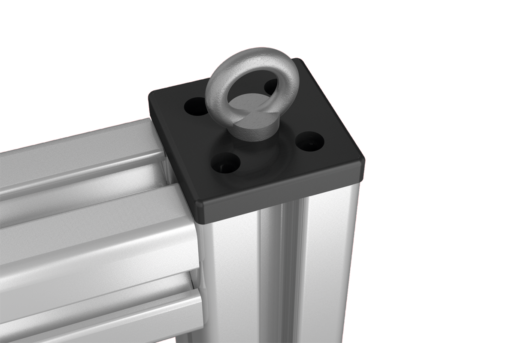

DescriptionMaterial:Die-cast zinc.Version:bright or black powder-coated.Note:Used to mount levelling feet, rollers, eye bolts and other elements. Can also be mounted to the side of a profile using slot nuts.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1057 Foot plates Type B and Type I

349 kB

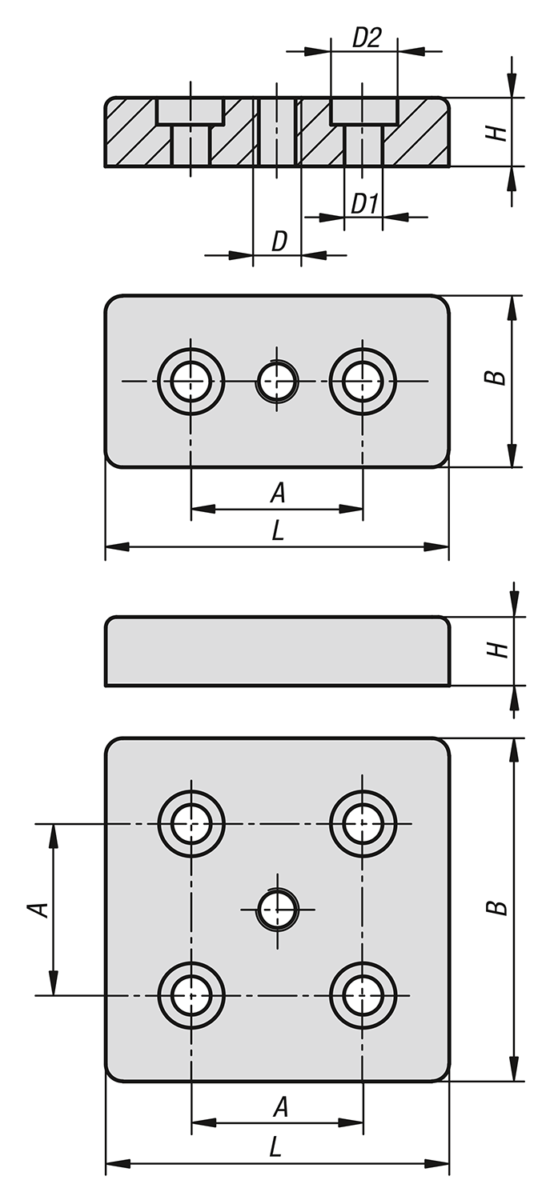

Drawings

Item selection/filter

Order No.	Finish	Type	Slot width	Profile	B	L	H	A	D	D1	D2	Price
K1057.0840801080	bright	I	8	40x80	40	80	16	40	M8	9	15	13.82 $ (USD)
K1057.0840801100	bright	I	8	40x80	40	80	16	40	M10	9	15	15.54 $ (USD)
K1057.0840801120	bright	I	8	40x80	40	80	16	40	M12	9	15	15.54 $ (USD)
K1057.0840801160	bright	I	8	40x80	40	80	16	40	M16	9	15	15.54 $ (USD)
K1057.0880801080	bright	I	8	80x80	80	80	16	40	M8	9	15	22.66 $ (USD)
K1057.0880801100	bright	I	8	80x80	80	80	16	40	M10	9	15	22.66 $ (USD)
K1057.0880801120	bright	I	8	80x80	80	80	16	40	M12	9	15	22.66 $ (USD)
K1057.0880801160	bright	I	8	80x80	80	80	16	40	M16	9	15	22.66 $ (USD)
K1057.1040802080	bright	B	10	40x80	40	80	16	40	M8	14,5	20	15.54 $ (USD)
K1057.1040802100	bright	B	10	40x80	40	80	16	40	M10	14,5	20	15.54 $ (USD)
K1057.1040802120	bright	B	10	40x80	40	80	16	40	M12	14,5	20	15.54 $ (USD)
K1057.1040802160	bright	B	10	40x80	40	80	16	40	M16	14,5	20	15.54 $ (USD)
K1057.1045902100	bright	B	10	45x90	45	90	16	45	M10	14,5	20	19.70 $ (USD)
K1057.1045902120	bright	B	10	45x90	45	90	16	45	M12	14,5	20	19.70 $ (USD)
K1057.1045902140	bright	B	10	45x90	45	90	16	45	M14	14,5	20	19.70 $ (USD)
K1057.1045902160	bright	B	10	45x90	45	90	16	45	M16	14,5	20	19.70 $ (USD)
K1057.1045902200	bright	B	10	45x90	45	90	16	45	M20	14,5	20	19.70 $ (USD)
K1057.1090902100	bright	B	10	90x90	90	90	16	45	M10	14,5	20	28.06 $ (USD)
K1057.1090902120	bright	B	10	90x90	90	90	16	45	M12	14,5	20	28.06 $ (USD)
K1057.1090902140	bright	B	10	90x90	90	90	16	45	M14	14,5	20	28.06 $ (USD)
K1057.1090902160	bright	B	10	90x90	90	90	16	45	M16	14,5	20	28.06 $ (USD)
K1057.1090902200	bright	B	10	90x90	90	90	16	45	M20	14,5	20	28.06 $ (USD)
K1057.0630601081	black powdercoated	I	6	30x60	30	60	12	30	M8	6,6	11	16.78 $ (USD)
K1057.0630601101	black powdercoated	I	6	30x60	30	60	12	30	M10	6,6	11	16.78 $ (USD)
K1057.0630601121	black powdercoated	I	6	30x60	30	60	12	30	M12	6,6	11	16.78 $ (USD)
K1057.0630601161	black powdercoated	I	6	30x60	30	60	12	30	M16	6,6	11	16.78 $ (USD)
K1057.0660601081	black powdercoated	I	6	60x60	60	60	12	30	M8	6,6	11	19.95 $ (USD)
K1057.0660601101	black powdercoated	I	6	60x60	60	60	12	30	M10	6,6	11	19.95 $ (USD)
K1057.0660601121	black powdercoated	I	6	60x60	60	60	12	30	M12	6,6	11	19.95 $ (USD)
K1057.0660601161	black powdercoated	I	8	60x60	60	60	16	40	M16	9	15	19.95 $ (USD)
K1057.0840801081	black powdercoated	I	8	40x80	40	80	16	40	M8	9	15	19.10 $ (USD)
K1057.0840801101	black powdercoated	I	8	40x80	40	80	16	40	M10	9	15	19.10 $ (USD)
K1057.0840801121	black powdercoated	I	8	40x80	40	80	16	40	M12	9	15	19.10 $ (USD)
K1057.0840801161	black powdercoated	I	8	40x80	40	80	16	40	M16	9	15	19.10 $ (USD)
K1057.0880801081	black powdercoated	I	8	80x80	80	80	16	40	M8	9	15	27.47 $ (USD)
K1057.0880801101	black powdercoated	I	8	80x80	80	80	16	40	M10	9	15	27.47 $ (USD)
K1057.0880801121	black powdercoated	I	8	80x80	80	80	16	40	M12	9	15	27.47 $ (USD)
K1057.0880801161	black powdercoated	I	8	80x80	80	80	16	40	M16	9	15	27.47 $ (USD)
K1057.0830602081	black powdercoated	B	8	30x60	30	60	12	30	M8	9	15	16.58 $ (USD)
K1057.0830602101	black powdercoated	B	8	30x60	30	60	12	30	M10	9	15	16.58 $ (USD)
K1057.0830602121	black powdercoated	B	8	30x60	30	60	12	30	M12	9	15	16.58 $ (USD)
K1057.1045902101	black powdercoated	B	10	45x90	45	90	16	45	M10	14,5	20	23.28 $ (USD)
K1057.1045902121	black powdercoated	B	10	45x90	45	90	16	45	M12	14,5	20	23.28 $ (USD)
K1057.1045902141	black powdercoated	B	10	45x90	45	90	16	45	M14	14,5	20	23.28 $ (USD)
K1057.1045902161	black powdercoated	B	10	45x90	45	90	16	45	M16	14,5	20	23.28 $ (USD)
K1057.1045902201	black powdercoated	B	10	45x90	45	90	16	45	M20	14,5	20	23.28 $ (USD)
K1057.1090902101	black powdercoated	B	10	90x90	90	90	16	45	M10	14,5	20	34.16 $ (USD)
K1057.1090902121	black powdercoated	B	10	90x90	90	90	16	45	M12	14,5	20	34.16 $ (USD)
K1057.1090902141	black powdercoated	B	10	90x90	90	90	16	45	M14	14,5	20	34.16 $ (USD)
K1057.1090902161	black powdercoated	B	10	90x90	90	90	16	45	M16	14,5	20	34.16 $ (USD)
K1057.1090902201	black powdercoated	B	10	90x90	90	90	16	45	M20	14,5	20	34.16 $ (USD)
