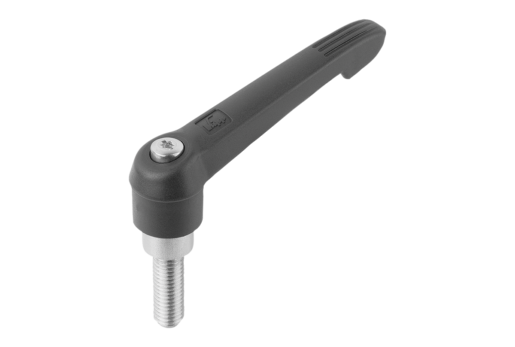

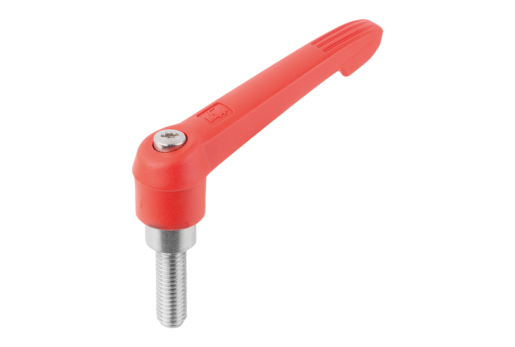

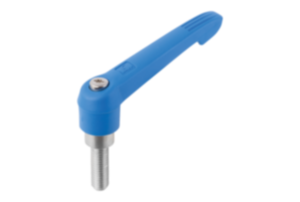

Adjustable Handles, Modern Design Style “Novo·Grip”, with external thread, components in stainless steel, inch
K0270 Inch

Adjustable Handles, Modern Design Style “Novo·Grip”, with...

go back

Item description/product images

DescriptionProduct description:For many people the NOVO grip Adjustable Handle represents the key to secure and comfortable gripping. This handle provides a future-oriented and powerful solution for almost any operating and clamping problem.Material:Handle in fiberglass reinforced plastic with toothed
wheel in die cast zinc;
steel parts in stainless steel 1.4305
Version:Steel parts natural finish.On request:Other external threads, screw lengths and special versions.
Dimension "H1" can be produced in other lengths at an additional charge.
Drawing reference:
1) flat point DIN 78

Drawings

Adjustable Handles, Modern Design Style “Novo·Grip”, with external thread, components in stainless steel, inch

Overview of items (compressed)

Item selection/filter
Item No.SizeXDD1D2HH1H2H3H4AA1BNo. of
teeth
LFilter
K0270.1A0ΔX110-24101314,524,54153033,540477,51615/20/25
K0270.1A1ΔX110-32101314,524,54153033,540477,51615/20/25
K0270.1A2ΔX11/4-20101314,524,54153033,540477,51610/15/20/25/30/40/50
K0270.2A2ΔX21/4-2013,51819,528,56,517,541,545,565759,52015/20/25/30/40/50/60
K0270.2A3ΔX25/16-1813,51819,528,56,517,541,545,565759,52015/20/25/30/40/50/60
K0270.2A4ΔX23/8-1613,51819,528,56,517,541,545,565759,52020/25/30/40/50/60
K0270.3A3ΔX35/16-181621,52337102453,5588091,5112220/25/30/40/50/60
K0270.3A4ΔX33/8-161621,52337102453,5588091,5112220/25/30/40/50/60
K0270.4A5ΔX41/2-131925,527,5431026616695109132425/30/40/50/60
K0270.5A6ΔX55/8-11233032,5491233727711012615,52630/40/50/60
