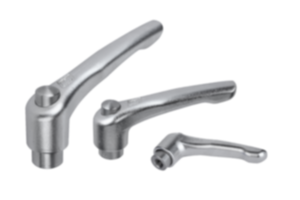

Item description/product images

DescriptionMaterial:Handle investment cast 1.4308 (AISI "316" equivalent).
Other steel parts 1.4305 (AISI 303 equivalent).Version:Handle electropolished.
Steel parts bright.On request:Other threads and special versions.
Dimension “H1” available in other lengths at extra charge.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0124_inch Adjustable Handles with protective cap Modern Design Style, stainless steel, internal thread, inch

222 kB

Drawings

Item selection/filter

Order No.	Size	X	T	D	D1	D2	H	H1	H2	H3	H4	A	A1	B	No. of teeth	Price
K0124.92A2	2	1/4-20	12	13,5	18,5	19	32	6,5	17,5	42,5	45,5	65	74,5	10	10	49.56 $ (USD)
K0124.92A3	2	5/16-18	12	13,5	18,5	19	32	6,5	17,5	42,5	45,5	65	74,5	10	10	49.56 $ (USD)
K0124.93A3	3	5/16-18	14	16	21	22	41,5	10	24	54,5	58,5	80	91	11	11	59.37 $ (USD)
K0124.93A4	3	3/8-16	14	16	21	22	41,5	10	24	54,5	58,5	80	91	11	11	59.37 $ (USD)
