Adjustable Tension Levers, with external thread, inch, 0 degree

go back

Products
- Adjustable Handles
  - Adjustable Tension Levers
    - Adjustable Tension Levers external thread
      - Adjustable Tension Levers, with external thread, inch, 0 degree

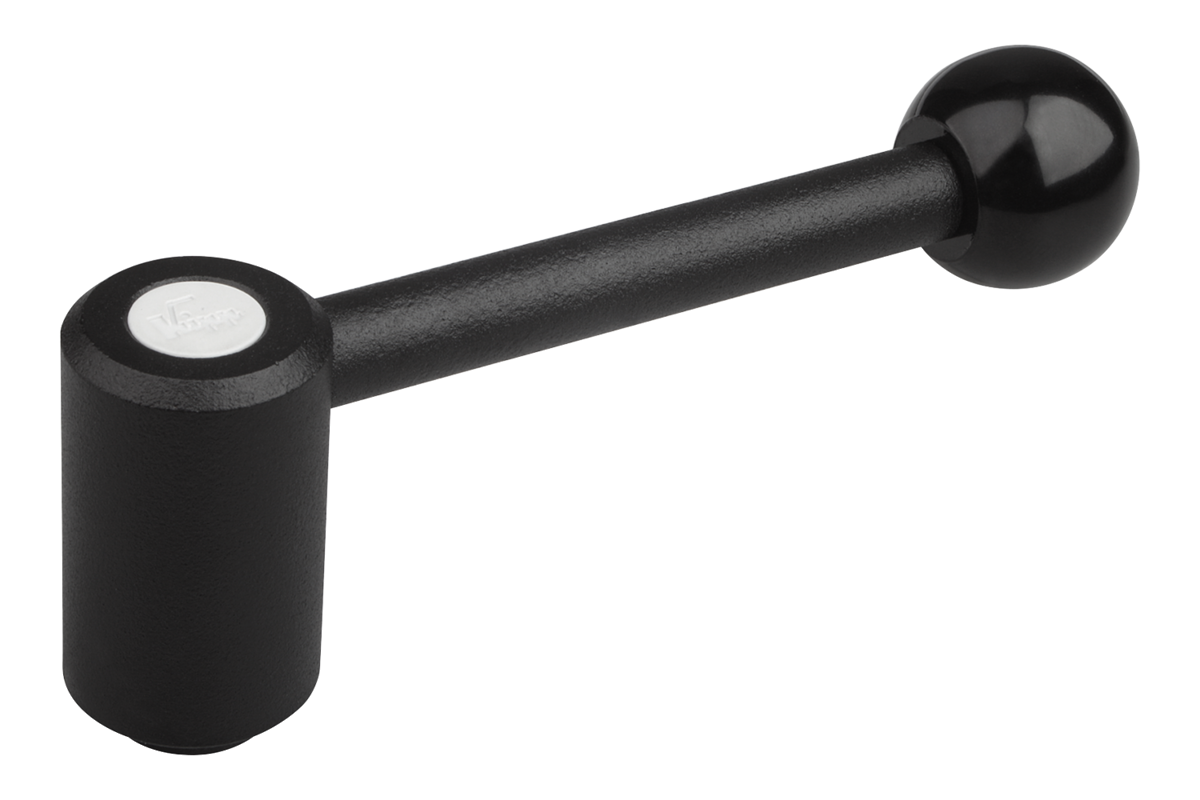

Item description/product images

DescriptionMaterial:Steel parts grade 5.8.
Ball knob black plastic.Version:Powder-coated with fine texture, black.Order information:Threaded studs with dimension L=70 mm or greater are partially threaded, 60 mm.On request:Other threads, screw lengths and special versions.
Dimensions “H1” and “A” available in other lengths at extra charge.Drawing reference:

1) flat point DIN EN ISO 4753

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0108_0 Inch Adjustable Tension Levers, with external thread, inch, 0 degree

233 kB

Drawings

Overview of items (compressed)

Item selection/filter

Order No.	style	Size	X	A=Handle length	D	D1	D2	D3	H	H1	H2	H4	L	No. of teeth
K0108.1A32X	0°	1	5/16-18	92	16	24	25	10	44,5	4,5	37	49,5	20/25/30/40/50/60	22
K0108.1A42X	0°	1	3/8-16	92	16	24	25	10	44,5	4,5	37	49,5	20/25/30/40/50/60	22
K0108.1A52X	0°	1	1/2-13	92	16	24	25	10	44,5	4,5	37	49,5	20/25/30/40/50/60	22
K0108.2A52X	0°	2	1/2-13	111	19	28	32	12	51,5	5,5	42	57,5	20/25/30/40/50/60	24
K0108.3A52X	0°	3	1/2-13	134,5	23	33	32	13	58	6	47	65	20/25/30/40/50/60	26
K0108.3A62X	0°	3	5/8-11	134,5	23	33	32	13	58	6	47	65	20/25/30/40/50/60	26
K0108.4A62X	0°	4	5/8-11	134	30	41	32	13	68,5	7,5	56,5	76,5	30/40/50/60	36
K0108.4A72X	0°	4	3/4-10	134	30	41	32	13	68,5	7,5	56,5	76,5	30/40/50/60	36
