Adjustable Tension Levers low profile, internal thread, 15°,...

go back

Products
- Adjustable Handles
  - Adjustable Tension Levers
    - Adjustable Tension Levers low profile, internal thread
      - Adjustable Tension Levers low profile, internal thread, 15°, inch

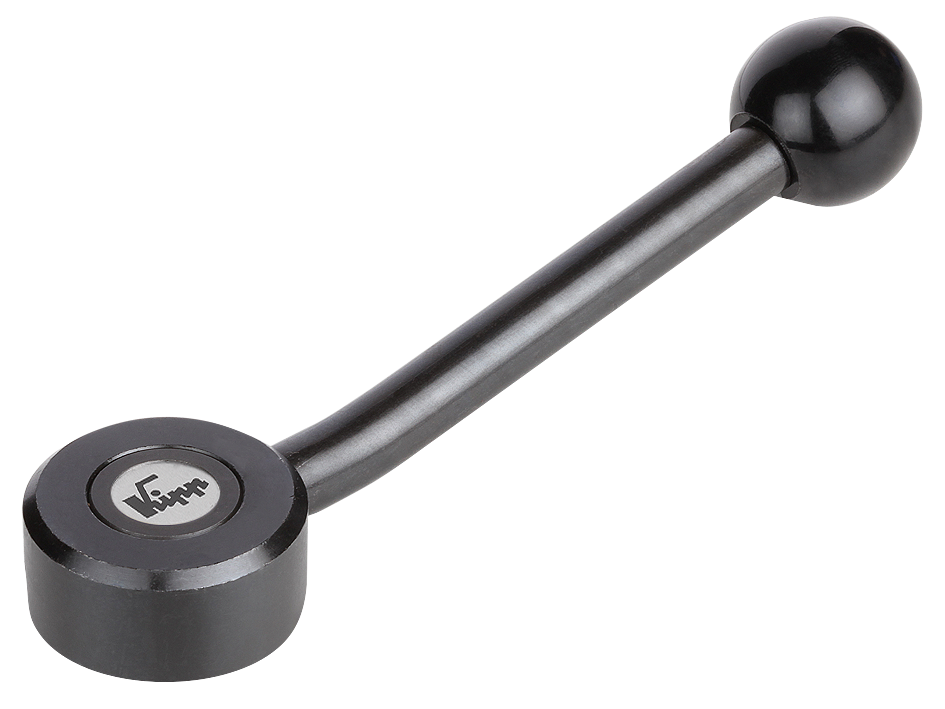

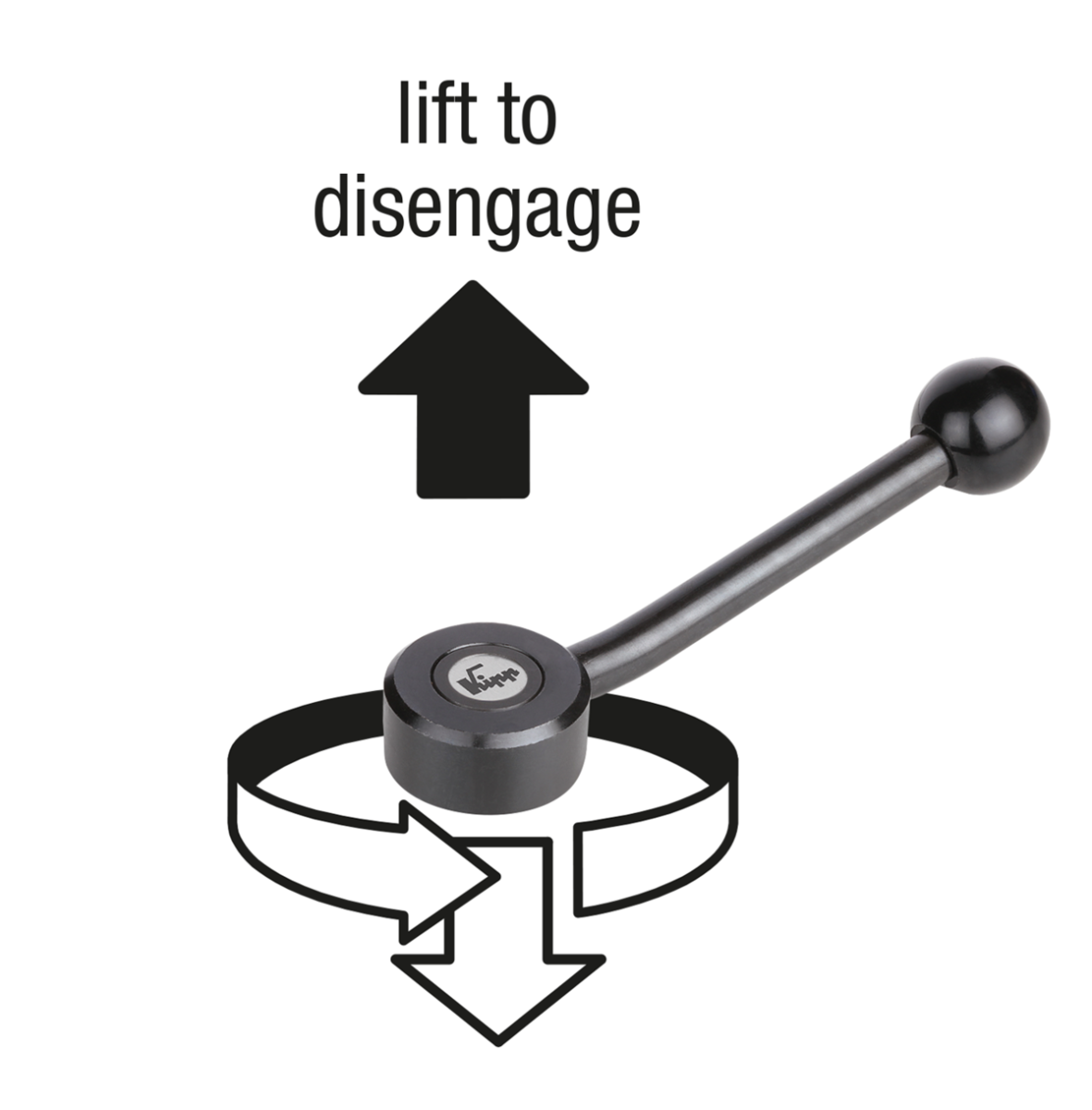

Item description/product images

DescriptionMaterial:Steel parts grade 5.8.
Ball knob black plastic.Version:Black oxidized.On request:Other threads and special versions.
Dimensions “H1” and “A” available in other lengths at extra charge.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0114_15 Inch Adjustable Tension Levers low profile, internal thread, 15°, inch

189 kB

Drawings

Item selection/filter

Order No.	style	X	T	A=Handle length	A2	D	D1	D2	D3	H	H1	H2	H3	H4	No. of teeth	Price
K0114.1A22	15°	1/4-20	18	100	15	13,5	33	25	10	19	2	12	23	29	26	32.65 $ (USD)
K0114.1A32	15°	5/16-18	18	100	15	13,5	33	25	10	19	2	12	23	29	26	32.65 $ (USD)
K0114.2A42	15°	3/8-16	21	127	15	19	41	30	12	22	2	13,5	26	38	30	39.91 $ (USD)
K0114.2A52	15°	1/2-13	21	127	15	19	41	30	12	22	2	13,5	26	38	30	39.91 $ (USD)
K0114.3A52	15°	1/2-13	27	145	15	23	45	37	14	28	2	17	33	48	36	46.51 $ (USD)
K0114.3A62	15°	5/8-11	27	145	15	23	45	37	14	28	2	17	33	48	36	46.51 $ (USD)
