Tension levers stainless steel

go back

Products
- Adjustable Handles
  - Adjustable Tension Levers
    - Tension levers stainless steel

Item description/product images

DescriptionMaterial:Steel parts stainless steel 1.4305 (AISI 303 equivalent).
Ball knob black plastic.Version:Stainless steel parts bright.
Ball knob polished.Note:Tension levers can be used for simple clamping or control operations.
Where applicable, there must be enough space available so that the grip can be rotated 360°.On request:Other internal threads, reamed holes and special versions.
Dimension “A” available in other lengths at extra charge.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1444 Tension levers stainless steel

136 kB

Drawings (total overview)

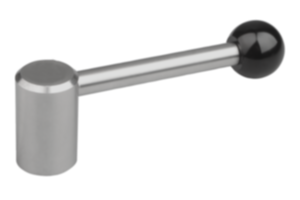

Tension levers stainless steel with internal thread, 0°

More information

Drawings

Tension levers stainless steel with internal thread, 0°

Item selection/filter

Item No.		Style	Size	X	T	D	D1	D2	H	H2	A	Price
K1444.2082	internal thread	0°	1	M8	18	24	10	25	40	32,5	88,1	on request
K1444.2102	internal thread	0°	1	M10	18	24	10	25	40	32,5	88,1	on request
K1444.21012	internal thread	0°	2	M10	20	28	12	32	46	36,5	104	on request
K1444.2122	internal thread	0°	2	M12	20	28	12	32	46	36,5	104	on request
K1444.2162	internal thread	0°	3	M16	23	33	13	32	52	41	126,5	on request
K1444.2202	internal thread	0°	4	M20	26	41	13	32	61	49	128,5	on request

Tension lever, stainless steel, with reamed hole, 0 degrees

More information

Drawings

Tension lever, stainless steel, with reamed hole, 0 degrees

Item selection/filter

Item No.		Style	Size	X	T	D	D1	D2	H	H1	H2	A	A2	Price
K1444.1102	reamed hole	0°	1	10	22	24	10	25	40	-	32,5	88,1	-	on request
K1444.1122	reamed hole	0°	2	12	25	28	12	32	46	-	36,5	104	-	on request
K1444.1142	reamed hole	0°	2	14	25	28	12	32	46	-	36,5	104	-	on request
K1444.1162	reamed hole	0°	3	16	28	33	13	32	52	-	41	126,5	-	on request
K1444.1202	reamed hole	0°	4	20	32	41	13	32	61	-	49	128,5	-	on request

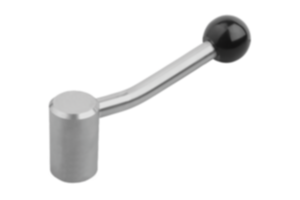

Tension levers stainless steel with internal thread, 20°

More information

Drawings

Tension levers stainless steel with internal thread, 20°

Item selection/filter

Item No.		Style	Size	X	T	D	D1	D2	H	H2	A	Price
K1444.208	internal thread	20°	1	M8	18	24	10	25	40	32,5	84,5	on request
K1444.210	internal thread	20°	1	M10	18	24	10	25	40	32,5	84,5	on request
K1444.2101	internal thread	20°	2	M10	20	28	12	32	46	36,5	100	on request
K1444.212	internal thread	20°	2	M12	20	28	12	32	46	36,5	100	on request
K1444.216	internal thread	20°	3	M16	23	33	13	32	52	41	121	on request
K1444.220	internal thread	20°	4	M20	26	41	13	32	61	49	123	on request

Tension lever, stainless steel, with reamed hole, 20 degrees

More information

Drawings

Tension lever, stainless steel, with reamed hole, 20 degrees

Item selection/filter

Item No.		Style	Size	X	T	D	D1	D2	H	H1	H2	A	A2	Price
K1444.110	reamed hole	20°	1	10	22	24	10	25	40	52,5	32,5	84,5	15	on request
K1444.112	reamed hole	20°	2	12	25	28	12	32	46	61	36,5	100	15	on request
K1444.114	reamed hole	20°	2	14	25	28	12	32	46	61	36,5	100	15	on request
K1444.116	reamed hole	20°	3	16	28	33	13	32	52	72	41	121	15	on request
K1444.120	reamed hole	20°	4	20	32	41	13	32	61	80	49	123	15	on request
