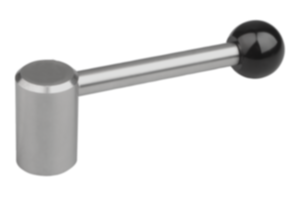

Tension levers stainless steel with internal thread, 0°

go back

Products
- Adjustable Handles
  - Adjustable Tension Levers
    - Tension levers stainless steel
      - Tension levers stainless steel with internal thread, 0°

Item description/product images

DescriptionMaterial:Steel parts stainless steel 1.4305 (AISI 303 equivalent).
Ball knob black plastic.Version:Stainless steel parts bright.
Ball knob polished.Note:Tension levers can be used for simple clamping or control operations.
Where applicable, there must be enough space available so that the grip can be rotated 360°.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1444_IG0 Tension levers stainless steel with internal thread, 0°

95,5 kB

Item selection/filter

Order No.	Thread type	style	Size	X	T	D	D1	D2	H	H2	A	Price
K1444.2082	internal thread	0°	1	M8	18	24	10	25	40	32,5	88,1	24.17 $ (USD)
K1444.2102	internal thread	0°	1	M10	18	24	10	25	40	32,5	88,1	24.17 $ (USD)
K1444.21012	internal thread	0°	2	M10	20	28	12	32	46	36,5	104	29.93 $ (USD)
K1444.2122	internal thread	0°	2	M12	20	28	12	32	46	36,5	104	29.93 $ (USD)
K1444.2162	internal thread	0°	3	M16	23	33	13	32	52	41	126,5	36.23 $ (USD)
K1444.2202	internal thread	0°	4	M20	26	41	13	32	61	49	128,5	50.24 $ (USD)
