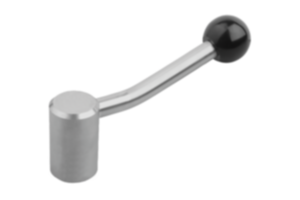

Tension lever, stainless steel, with reamed hole, 20 degrees

go back

Products
- Adjustable Handles
  - Adjustable Tension Levers
    - Tension levers stainless steel
      - Tension lever, stainless steel, with reamed hole, 20 degrees

Item description/product images

DescriptionMaterial:

Steel parts stainless steel 1.4305 (AISI 303 equivalent).
Ball knob black plastic.

Version:Stainless steel parts bright.
Ball knob polished.Note:Tension levers can be used for simple clamping or control operations.
Where applicable, there must be enough space available so that the grip can be rotated 360°.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1444_PB20 Tension lever, stainless steel, with reamed hole, 20 degrees

100 kB

Item selection/filter

Order No.	Thread type	style	Size	X	T	D	D1	D2	H	H1	H2	A	A2	Price
K1444.110	reamed hole	20°	1	10	22	24	10	25	40	52,5	32,5	84,5	15	24.98 $ (USD)
K1444.112	reamed hole	20°	2	12	25	28	12	32	46	61	36,5	100	15	30.94 $ (USD)
K1444.114	reamed hole	20°	2	14	25	28	12	32	46	61	36,5	100	15	30.94 $ (USD)
K1444.116	reamed hole	20°	3	16	28	33	13	32	52	72	41	121	15	37.46 $ (USD)
K1444.120	reamed hole	20°	4	20	32	41	13	32	61	80	49	123	15	51.97 $ (USD)
