K0118

Cam Levers expansion

go back

Item description/product images

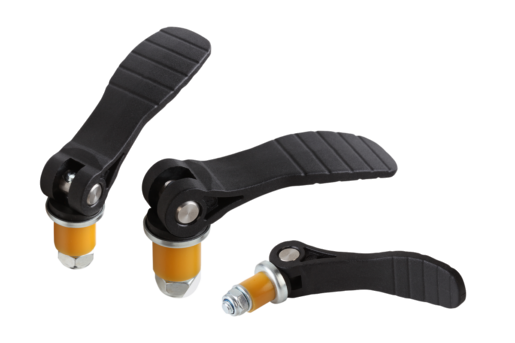

DescriptionMaterial:Handle and thrust washer fiberglass reinforced plastic PA 66.
Hinge pin stainless steel 1.4305 (AISI 303 equivalent).
Screw and washer steel quality class 5.8.
Expanding ring PUR elastomer.
Version:Handles and thrust washer black.
Hinge pins bright.
Screw, washer, locknut and thrust washer trivalent blue passivated.

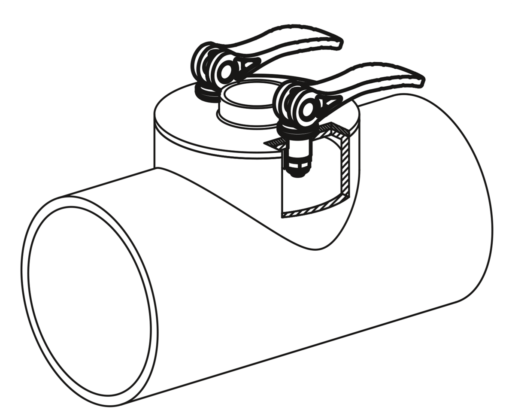

Note:Actuating the handle causes the elastomer bushing to expand and style to the surrounding surface.
The amount of expansion of the elastomer bushing and hence the clamping force can be adjusted by tightening or loosening the locknut.
The thread lock in the nut also ensures that the preset clamping force remains unchanged when the clamp is released.
Application:The specified holding forces are not suitable for constant loads.
We would be happy to supply samples to test on your application.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0118 Cam Levers expansion 300 kB

Drawings

Cam Levers expansion

Item selection/filter

Order No.DD1BB1HH1H2H3AA1SWClamping force ca. N
clamp bore
(no permanent load)
Clamping force ca. N
plate clamping
(no permanent load)
CADAcc.PriceOrder
K0118.121112X121218,122161423,212,851271,579,61010050 26.05 $ (USD)
K0118.121114X121418,122161423,212,851271,579,61015060 26.05 $ (USD)
K0118.221116X201627,1332416,227,814,72099,91101335060 32.39 $ (USD)
K0118.221118X201827,1332416,227,814,72099,911013350100 32.39 $ (USD)
K0118.221120X202027,1332416,227,814,72099,911016350100 34.41 $ (USD)
