Cam levers, stainless steel with internal thread, plastic thrust...

go back

Products
- Adjustable Handles
  - Cam Levers
    - Cam levers internal and external thread, stainless steel
      - Cam levers, stainless steel with internal thread, plastic thrust washer - inch

Item description/product images

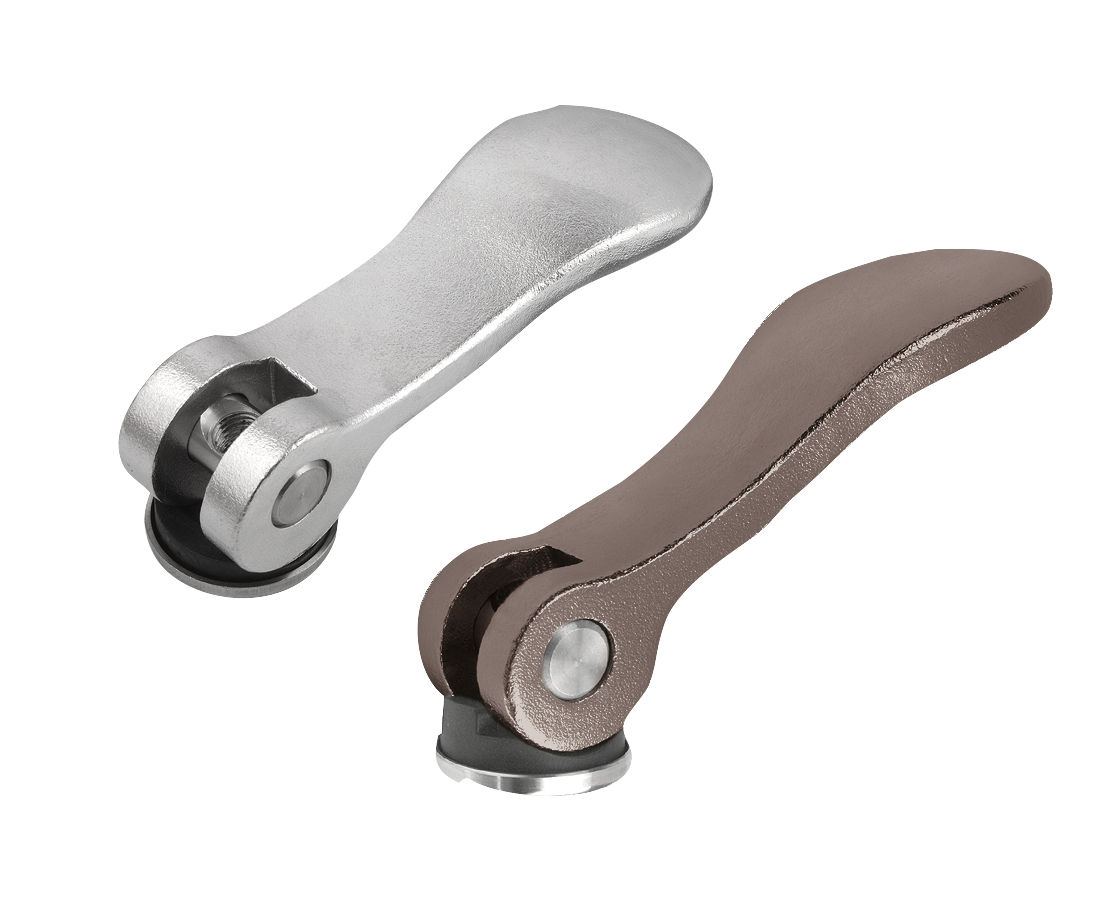

DescriptionMaterial:

Handles 1.4308 (AISI "316" equivalent).
Thrust washer plastic PA 66 GF 35-X fiberglass reinforced.
Hinge pin, washer 1.4305 (AISI 303 equivalent).

Version:Handle electropolished or blasted.
Thrust washer black.
Hinge pin bright.Note:Plastics are subject to creeping under load (retardation).Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0645_IG inch Cam levers, stainless steel with internal thread, plastic thrust washer - inch

213 kB

Drawings

Item selection/filter

Order No.	Surface finish body	D	D1	D2	B	B1	H	H1	A	A1	Travel S	Clamping force F (kN)	Hand force FH N	Price
K0645.95120AD	electropolished	6-32	12	6	14,4	11,5	9	13	36,2	41,7	1	1,5	90	24.67 $ (USD)
K0645.95120AE	electropolished	8-32	12	6	14,4	11,5	9	13	36,2	41,7	1	1,5	90	24.67 $ (USD)
K0645.05120AE	electropolished	8-32	15,4	8	18	13	11,2	17	52,3	59,1	1	2,5	100	26.23 $ (USD)
K0645.05120A0	electropolished	10-24	15,4	8	18	13	11,2	17	52,3	59,1	1	2,5	100	26.23 $ (USD)
K0645.05120A1	electropolished	10-32	15,4	8	18	13	11,2	17	52,3	59,1	1	2,5	100	26.23 $ (USD)
K0645.15120A1	electropolished	10-32	18,1	9	21,5	15	14,5	22	70,4	79,2	1,2	4	120	40.88 $ (USD)
K0645.15120A2	electropolished	1/4-20	18,1	9	21,5	15	14,5	22	70,4	79,2	1,2	4	120	40.88 $ (USD)
K0645.25120A3	electropolished	5/16-18	27,1	11	33,3	24	18	28,5	96	108	1,5	8	350	56.65 $ (USD)
K0645.95123AD	blasted	6-32	12	6	14,4	11,5	9	13	36,2	41,7	1	1,5	90	21.88 $ (USD)
K0645.95123AE	blasted	8-32	12	6	14,4	11,5	9	13	36,2	41,7	1	1,5	90	21.88 $ (USD)
K0645.05123AE	blasted	8-32	15,4	8	18	13	11,2	17	52,3	59,1	1	2,5	100	23.25 $ (USD)
K0645.05123A0	blasted	10-24	15,4	8	18	13	11,2	17	52,3	59,1	1	2,5	100	23.25 $ (USD)
K0645.05123A1	blasted	10-32	15,4	8	18	13	11,2	17	52,3	59,1	1	2,5	100	23.25 $ (USD)
K0645.15123A1	blasted	10-32	18,1	9	21,5	15	14,5	22	70,4	79,2	1,2	4	120	27.39 $ (USD)
K0645.15123A2	blasted	1/4-20	18,1	9	21,5	15	14,5	22	70,4	79,2	1,2	4	120	27.39 $ (USD)
K0645.25123A3	blasted	5/16-18	27,1	11	33,3	24	18	28,5	96	108	1,5	8	350	37.96 $ (USD)
