K0646_AG InchCam Lever with plastic handle with external thread, steel or... |
go back |
|
Item description/product images |
|
|

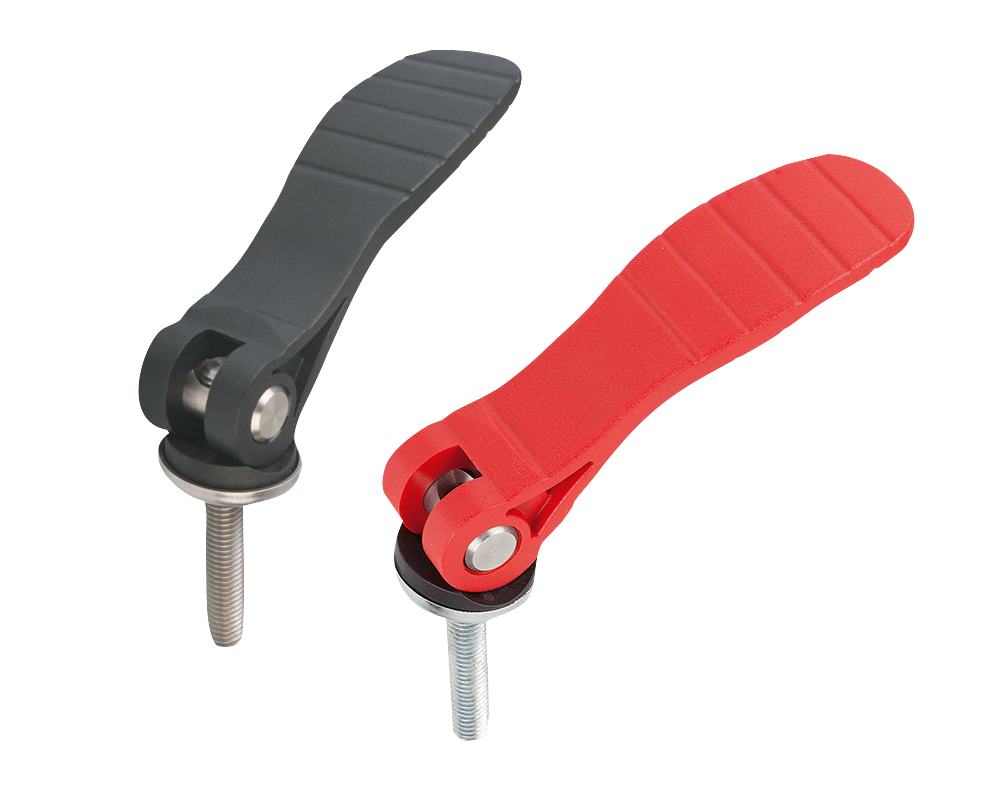

DescriptionMaterial:Handle and thrust washer plastic PA 66 fiberglass reinforced.
Hinge pin stainless steel 1.4305 (AISI 303 equivalent).
Stud and washer steel quality class 5.8 or stainless steel 1.4305 (AISI 303 equivalent).Version:Handle black or traffic red RAL3020. Thrust washer black. Hinge pin bright. Stud and washer trivalent blue passivated or bright stainless steel.Note:For the inch series, dimension D is in inches, all other dimensions are in mm. Plastics are subject to creeping under load (retardation), this can cause reduced clamping force. Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Item No. | Component material | Main color | D | D1 | D2 | B | B1 | H | H1 | A | A1 | L | Stroke S | Clamping force F (kN) | Hand force FH N | CAD | Acc. | Price | Order |
---|
K0646.15211A1X20 | steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 |  | | on request | | K0646.15211A1X30 | steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 |  | | on request | | K0646.15211A1X40 | steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 |  | | on request | | K0646.15211A1X50 | steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 |  | | on request | | K0646.15211A2X20 | steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 |  | | on request | | K0646.15211A2X30 | steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 |  | | on request | | K0646.15211A2X40 | steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 |  | | on request | | K0646.15211A2X50 | steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 |  | | on request | | K0646.25211A3X25 | steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 |  | | on request | | K0646.25211A3X30 | steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 |  | | on request | | K0646.25211A3X40 | steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 |  | | on request | | K0646.25211A3X50 | steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 |  | | on request | | K0646.25211A4X25 | steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 |  | | on request | | K0646.25211A4X30 | steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 |  | | on request | | K0646.25211A4X40 | steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 |  | | on request | | K0646.25211A4X50 | steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 |  | | on request | | K0646.15311A1X20 | stainless steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 |  | | on request | | K0646.15311A1X30 | stainless steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 |  | | on request | | K0646.15311A1X40 | stainless steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 |  | | on request | | K0646.15311A1X50 | stainless steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 |  | | on request | | K0646.15311A2X20 | stainless steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 |  | | on request | | K0646.15311A2X30 | stainless steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 |  | | on request | | K0646.15311A2X40 | stainless steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 |  | | on request | | K0646.15311A2X50 | stainless steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 |  | | on request | | K0646.25311A3X25 | stainless steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 |  | | on request | | K0646.25311A3X30 | stainless steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 |  | | on request | | K0646.25311A3X40 | stainless steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 |  | | on request | | K0646.25311A3X50 | stainless steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 |  | | on request | | K0646.25311A4X25 | stainless steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 |  | | on request | | K0646.25311A4X30 | stainless steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 |  | | on request | | K0646.25311A4X40 | stainless steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 |  | | on request | | K0646.25311A4X50 | stainless steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 |  | | on request | | K0646.152184A1X20 | steel | red | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 |  | | on request | | K0646.152184A1X30 | steel | red | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 |  | | on request | | K0646.152184A1X40 | steel | red | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 |  | | on request | | K0646.152184A1X50 | steel | red | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 |  | | on request | | K0646.152184A2X20 | steel | red | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 |  | | on request | | K0646.152184A2X30 | steel | red | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 |  | | on request | | K0646.152184A2X40 | steel | red | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 |  | | on request | | K0646.152184A2X50 | steel | red | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 |  | | on request | | K0646.252184A3X25 | steel | red | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 |  | | on request | | K0646.252184A3X30 | steel | red | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 |  | | on request | | K0646.252184A3X40 | steel | red | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 |  | | on request | | K0646.252184A3X50 | steel | red | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 |  | | on request | | K0646.252184A4X25 | steel | red | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 |  | | on request | | K0646.252184A4X30 | steel | red | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 |  | | on request | | K0646.252184A4X40 | steel | red | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 |  | | on request | | K0646.252184A4X50 | steel | red | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 |  | | on request | | K0646.153184A1X20 | stainless steel | red | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 |  | | on request | | K0646.153184A1X30 | stainless steel | red | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 |  | | on request | | K0646.153184A1X40 | stainless steel | red | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 |  | | on request | | K0646.153184A1X50 | stainless steel | red | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 |  | | on request | | K0646.153184A2X20 | stainless steel | red | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 |  | | on request | | K0646.153184A2X30 | stainless steel | red | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 |  | | on request | | K0646.153184A2X40 | stainless steel | red | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 |  | | on request | | K0646.153184A2X50 | stainless steel | red | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 |  | | on request | | K0646.253184A3X25 | stainless steel | red | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 |  | | on request | | K0646.253184A3X30 | stainless steel | red | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 |  | | on request | | K0646.253184A3X40 | stainless steel | red | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 |  | | on request | | K0646.253184A3X50 | stainless steel | red | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 |  | | on request | | K0646.253184A4X25 | stainless steel | red | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 |  | | on request | | K0646.253184A4X30 | stainless steel | red | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 |  | | on request | | K0646.253184A4X40 | stainless steel | red | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 |  | | on request | | K0646.253184A4X50 | stainless steel | red | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 |  | | on request | |
