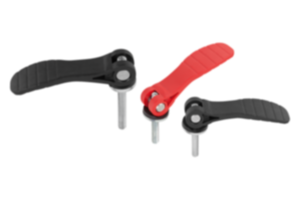

K0648_AG InchCam Lever with plastic handle with external thread, steel or... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Handle and thrust washer fiberglass reinforced plastic PA 66.
Hinge pin stainless steel 1.4305 (AISI 303 equivalent).
Screw and washer steel quality class 5.8 or stainless steel 1.4305 (AISI 303 equivalent).Version:Handle black or traffic red RAL3020. Thrust washer black. Hinge pin bright. Stud and washer trivalent blue passivated or bright stainless steel.Note:For the inch series, dimension D is in inches, all other dimensions are in mm. Adjustable cam levers are used when obstacles near the cam lever allow for clamping in only one specific position. The screwdriver slot located at the top of the stud enables adjustment of the tension, without rotating the handle, for optimum center-over cam clamping. Plastics are subject to creeping under load (retardation), this can cause reduced clamping force.Drawing reference:1) pin for the fine adjustment of the tensioning lever Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Item No. | Component material | Main color | D | D1 | D2 | B | B1 | H | H1 | A | A1 | L | Stroke S | Clamping force F (kN) | Hand force FH N | CAD | Acc. | Price | Order |
---|
K0648.15211A1X20 | steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 |  | | 10.50 $ | | K0648.15211A1X30 | steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 |  | | 10.50 $ | | K0648.15211A1X40 | steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 |  | | 11.23 $ | | K0648.15211A1X50 | steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 |  | | 11.23 $ | | K0648.15211A2X20 | steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 |  | | 10.50 $ | | K0648.15211A2X30 | steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 |  | | 10.50 $ | | K0648.15211A2X40 | steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 |  | | 11.23 $ | | K0648.15211A2X50 | steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 |  | | 11.23 $ | | K0648.25211A3X25 | steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 |  | | 12.35 $ | | K0648.25211A3X30 | steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 |  | | 12.35 $ | | K0648.25211A3X40 | steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 |  | | 12.85 $ | | K0648.25211A3X50 | steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 |  | | 12.85 $ | | K0648.25211A4X25 | steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 |  | | 12.35 $ | | K0648.25211A4X30 | steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 |  | | 12.35 $ | | K0648.25211A4X40 | steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 |  | | 12.85 $ | | K0648.25211A4X50 | steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 |  | | 12.85 $ | | K0648.15311A1X20 | stainless steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 |  | | 16.76 $ | | K0648.15311A1X30 | stainless steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 |  | | 16.76 $ | | K0648.15311A1X40 | stainless steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 |  | | 17.91 $ | | K0648.15311A1X50 | stainless steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 |  | | 17.91 $ | | K0648.15311A2X20 | stainless steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 |  | | 16.76 $ | | K0648.15311A2X30 | stainless steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 |  | | 16.76 $ | | K0648.15311A2X40 | stainless steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 |  | | 17.91 $ | | K0648.15311A2X50 | stainless steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 |  | | 17.91 $ | | K0648.25311A3X25 | stainless steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 |  | | 19.64 $ | | K0648.25311A3X30 | stainless steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 |  | | 19.64 $ | | K0648.25311A3X40 | stainless steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 |  | | 21.02 $ | | K0648.25311A3X50 | stainless steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 |  | | 21.02 $ | | K0648.25311A4X25 | stainless steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 |  | | 19.64 $ | | K0648.25311A4X30 | stainless steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 |  | | 19.64 $ | | K0648.25311A4X40 | stainless steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 |  | | 21.02 $ | | K0648.25311A4X50 | stainless steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 |  | | 21.02 $ | | K0648.152184A1X20 | steel | red | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 |  | | 10.27 $ | | K0648.152184A1X30 | steel | red | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 |  | | 10.27 $ | | K0648.152184A1X40 | steel | red | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 |  | | 10.98 $ | | K0648.152184A1X50 | steel | red | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 |  | | 10.98 $ | | K0648.152184A2X20 | steel | red | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 |  | | 10.27 $ | | K0648.152184A2X30 | steel | red | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 |  | | 10.27 $ | | K0648.152184A2X40 | steel | red | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 |  | | 10.98 $ | | K0648.152184A2X50 | steel | red | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 |  | | 10.98 $ | | K0648.252184A3X25 | steel | red | 5/16-18 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 |  | | 12.07 $ | | K0648.252184A3X30 | steel | red | 5/16-18 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 |  | | 12.07 $ | | K0648.252184A3X40 | steel | red | 5/16-18 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 |  | | 12.52 $ | | K0648.252184A3X50 | steel | red | 5/16-18 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 |  | | 12.52 $ | | K0648.252184A4X25 | steel | red | 3/8-16 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 |  | | 12.07 $ | | K0648.252184A4X30 | steel | red | 3/8-16 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 |  | | 12.07 $ | | K0648.252184A4X40 | steel | red | 3/8-16 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 |  | | 12.52 $ | | K0648.252184A4X50 | steel | red | 3/8-16 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 |  | | 12.52 $ | | K0648.153184A1X20 | stainless steel | red | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 |  | | 16.34 $ | | K0648.153184A1X30 | stainless steel | red | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 |  | | 16.34 $ | | K0648.153184A1X40 | stainless steel | red | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 |  | | 17.50 $ | | K0648.153184A1X50 | stainless steel | red | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 |  | | 17.50 $ | | K0648.153184A2X20 | stainless steel | red | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 |  | | 16.34 $ | | K0648.153184A2X30 | stainless steel | red | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 |  | | 16.34 $ | | K0648.153184A2X40 | stainless steel | red | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 |  | | 17.50 $ | | K0648.153184A2X50 | stainless steel | red | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 |  | | 17.50 $ | | K0648.253184A3X25 | stainless steel | red | 5/16-18 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 |  | | 19.15 $ | | K0648.253184A3X30 | stainless steel | red | 5/16-18 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 |  | | 19.15 $ | | K0648.253184A3X40 | stainless steel | red | 5/16-18 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 |  | | 20.51 $ | | K0648.253184A3X50 | stainless steel | red | 5/16-18 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 |  | | 20.51 $ | | K0648.253184A4X25 | stainless steel | red | 3/8-16 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 |  | | 19.15 $ | | K0648.253184A4X30 | stainless steel | red | 3/8-16 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 |  | | 19.15 $ | | K0648.253184A4X40 | stainless steel | red | 3/8-16 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 |  | | 20.51 $ | | K0648.253184A4X50 | stainless steel | red | 3/8-16 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 |  | | 20.51 $ | |
