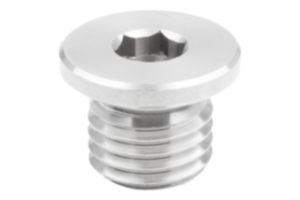

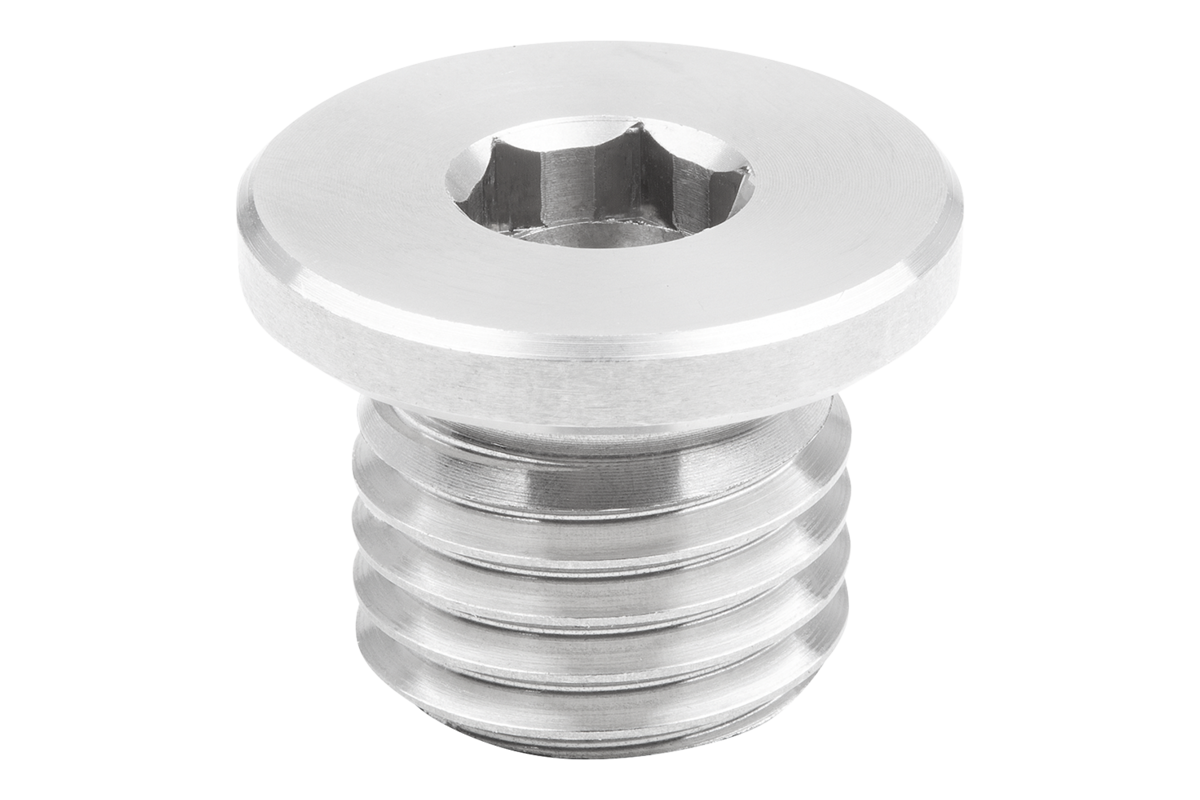

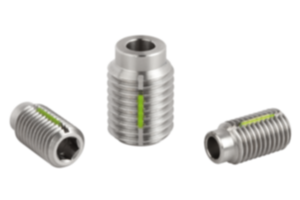

Locating bushings with collar, stainless steel, for ball lock...

go back

Products
- Ball Lock Pins
  - Accessories
    - Locating bushings with collar, stainless steel, for ball lock pins

Item description/product images

DescriptionMaterial:

Stainless steel 1.4305 (AISI 303 equivalent).

Version:Bright.Note:Locating bushings for ball lock pins are ideal for easy and quick positioning of ball lock pins and locking pins.

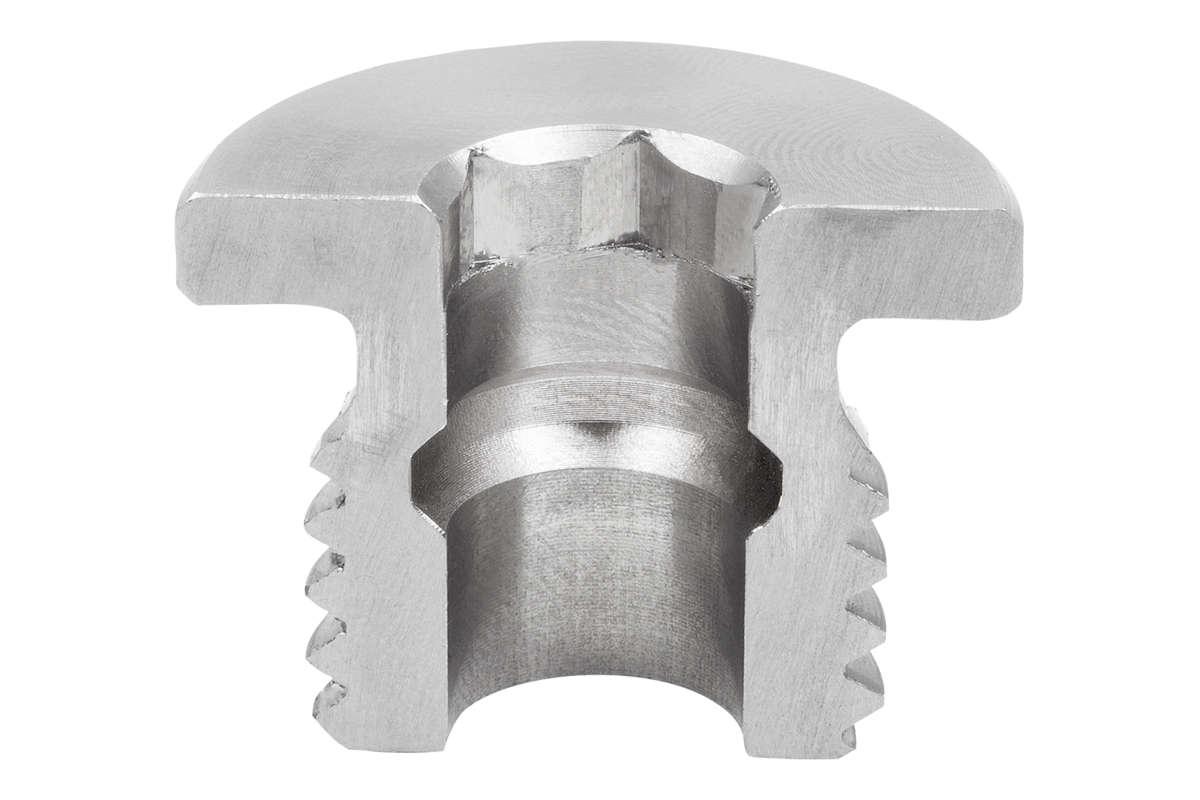

The collar serves as a stop at one end.
With hex socket to help screw in.Benefits:- The collar guarantees a defined screw-in depth.
- Easy and reliable screwing in.
- Can be screwed into various materials.
- Can be used from both sides.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1462 Locating bushings with collar, stainless steel, for ball lock pins

522 kB

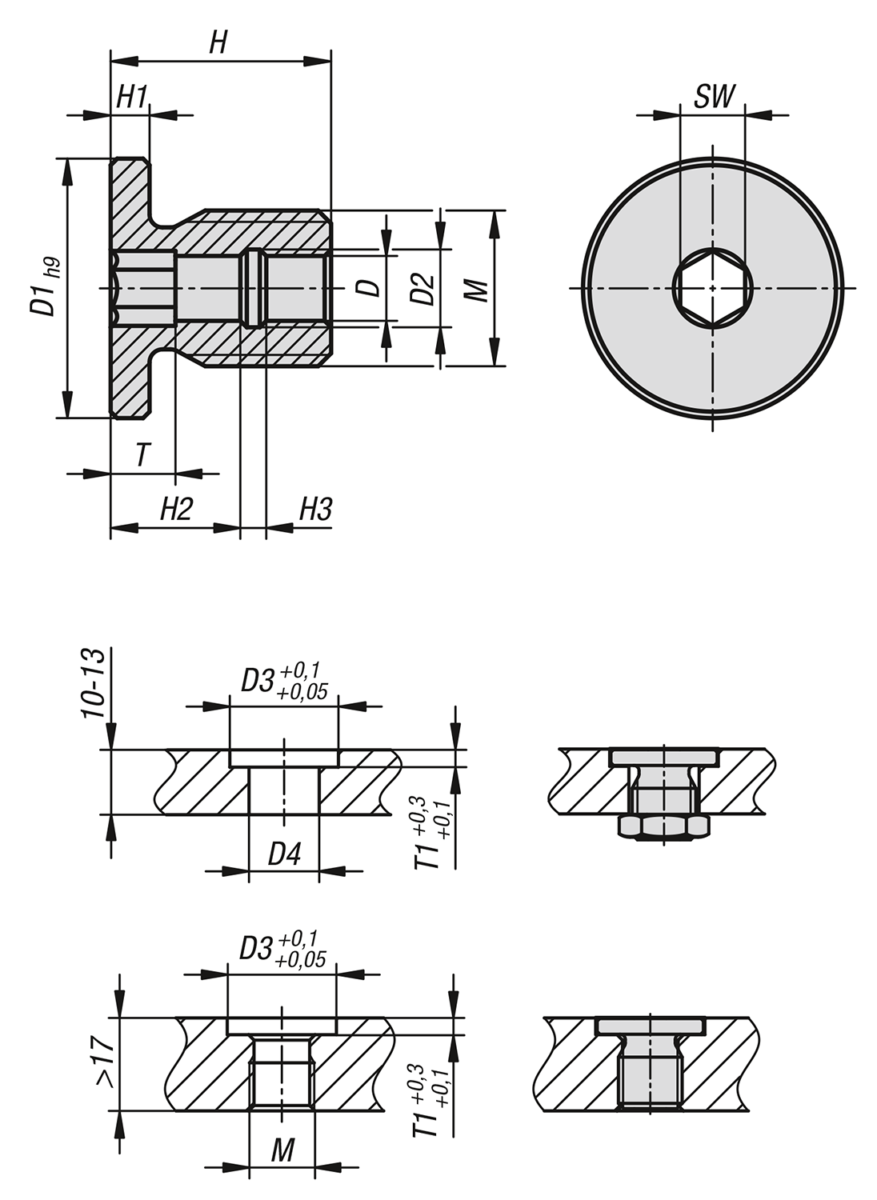

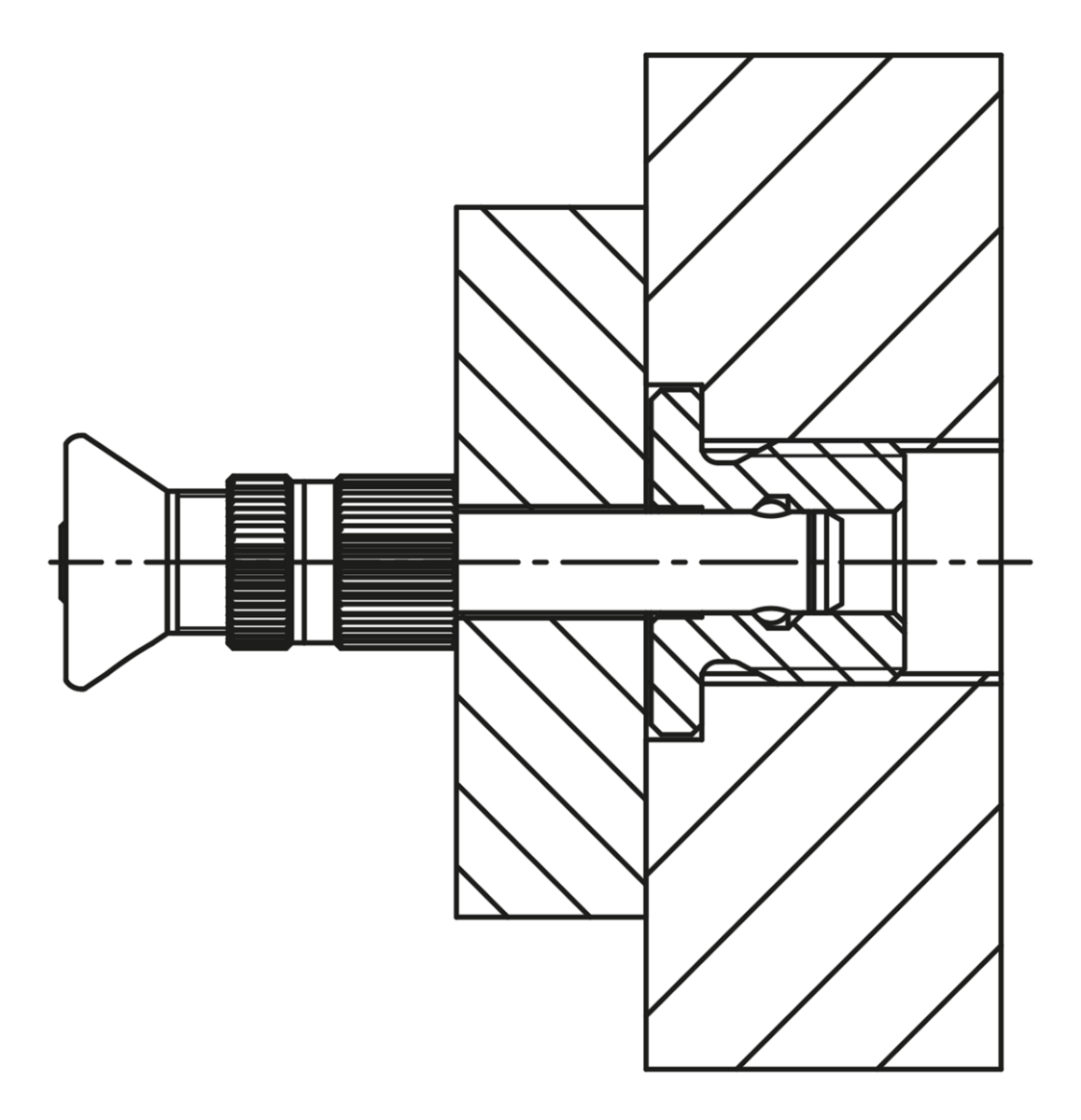

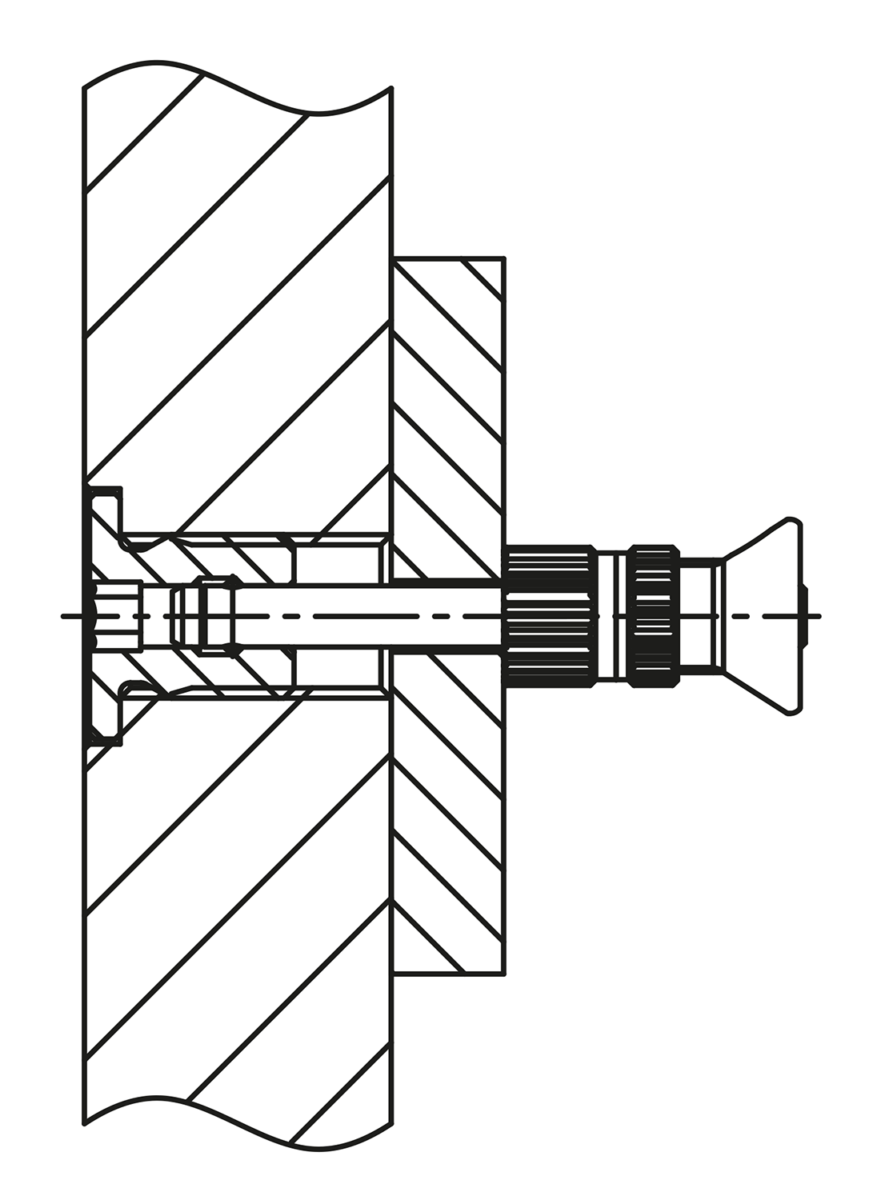

Drawings

Item selection/filter

Order No.	D	D1	D2	D3	D4	H	H1	H2	H3	M	SW	T	T1	Price
K1462.10512	5	20	6	20	13,5	17	3	10	2	M12	5	5	3	17.24 $ (USD)
K1462.10616	6	24	7,5	24	17,5	20	3	10	5	M16	6	5	3	19.88 $ (USD)
K1462.10816	8	24	10	24	17,5	20	3	10	5	M16	8	5	3	19.88 $ (USD)
K1462.11024	10	34	13	34	25	25	5	10	5	M24	10	5	5	34.16 $ (USD)
K1462.11224	12	34	15	34	25	25	5	10	5	M24	12	5	5	34.16 $ (USD)
K1462.11630	16	40	20	40	31	28	5	10	8	M30	16	5	5	40.29 $ (USD)
